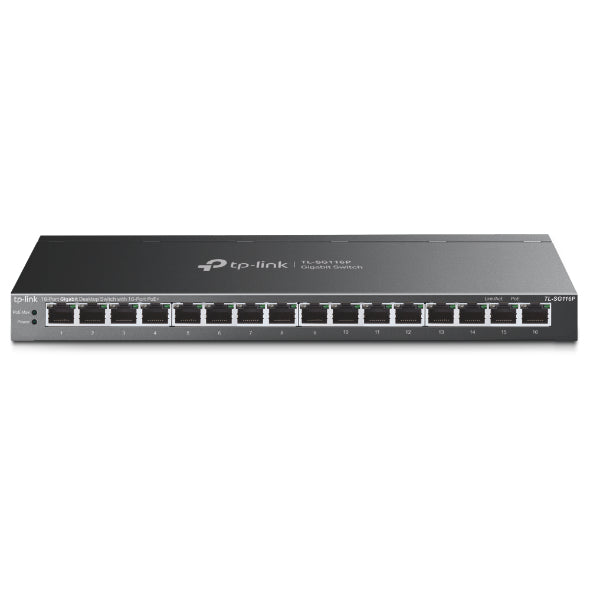

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

Management features

• Switch type: Unmanaged
• Quality of Service (QoS) support: Yes

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16

Network

• Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
• Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
• Port mirroring: Yes
• Full duplex: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Broadcast storm control: Yes
• Rate limiting: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Cable length detection: Yes
• VLAN support: Yes
• Virtual LAN features: Protocol-based VLAN, Tagged VLAN
• Number of VLANs: 32

Data transmission

• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Forwarding rate: 23.81 Mpps
• Store-and-forward: Yes
• Number of queues: 4
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Packet buffer memory: 4.1 MB

Security

• IGMP snooping: Yes
• Loop protection: Yes

Design

• Stackable: Yes
• Product colour: Black
• Housing material: Metal
• LED indicators: Yes
• Wall mountable: Yes

Power

• Power supply included: Yes
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• DC input voltage: 9 V
• Input current: 0.6 A
• Power consumption (typical): 11.72 W
• Power consumption (max): 144.28 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 490.55 BTU/h

Weight & dimensions

• Width: 286 mm
• Depth: 111.7 mm
• Height: 25.4 mm

Packaging content

• Quick start guide: Yes

Packaging data

• Package width: 227 mm
• Package depth: 434 mm
• Package height: 70 mm
• Package weight: 2 kg
