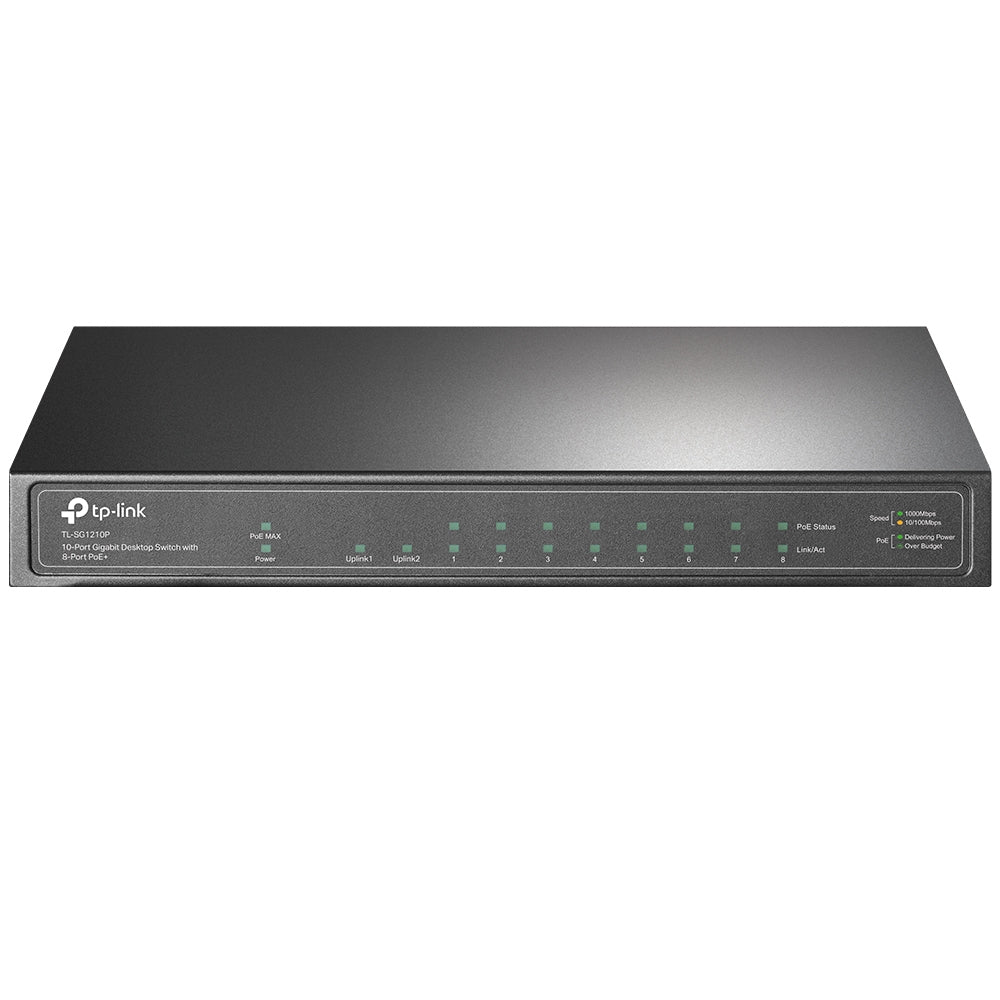

TP-Link TL-SG1210P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

TP-Link TL-SG1210P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

£87.99
£87.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
PoE Switches for Your Ultra Convenience

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance
Work with IP Cameras

Conference Call
Work with IP Phones

Wi-Fi Coverage
Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos
For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP
Snooping
Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

    Management features

    • Switch type: Unmanaged
    • Quality of Service (QoS) support: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 9
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Gigabit Ethernet (copper) ports quantity: 9
    • SFP module slots quantity: 1

    Network

    • Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
    • 10G support: No
    • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
    • Auto MDI/MDI-X: Yes
    • Auto-negotiation: Yes
    • MAC address auto-learning supported: Yes
    • MAC address auto-aging supported: Yes

    Optical fiber

    • Fiber ethernet cabling technology: 1000BASE-X
    • Fiber type: Single-mode

    Data transmission

    • MAC address table: 4000 entries
    • Switching capacity: 20 Gbit/s
    • Store-and-forward: Yes

    Security

    • IGMP snooping: Yes

    Design

    • Product colour: Grey
    • Housing material: Metal
    • LED indicators: Yes
    • Wall mountable: Yes

    Performance

    • Fanless: Yes

    Power

    • Power supply included: No
    • DC input voltage: 53.5 V
    • Input current: 1.31 A
    • Power consumption (typical): 7.11 W
    • Power consumption (max): 78.13 W

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 8
    • Total Power over Ethernet (PoE) budget: 63 W

    Operational conditions

    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 266.42 BTU/h

    Weight & dimensions

    • Width: 209 mm
    • Depth: 126 mm
    • Height: 26 mm

    Packaging content

    • Cables included: AC
    • Quick start guide: Yes
    • User guide: Yes
    • Manual: Yes

    Certificates

    • Certification: CE, FCC, RoHS

    Logistics data

    • Harmonized System (HS) code: 85176990
