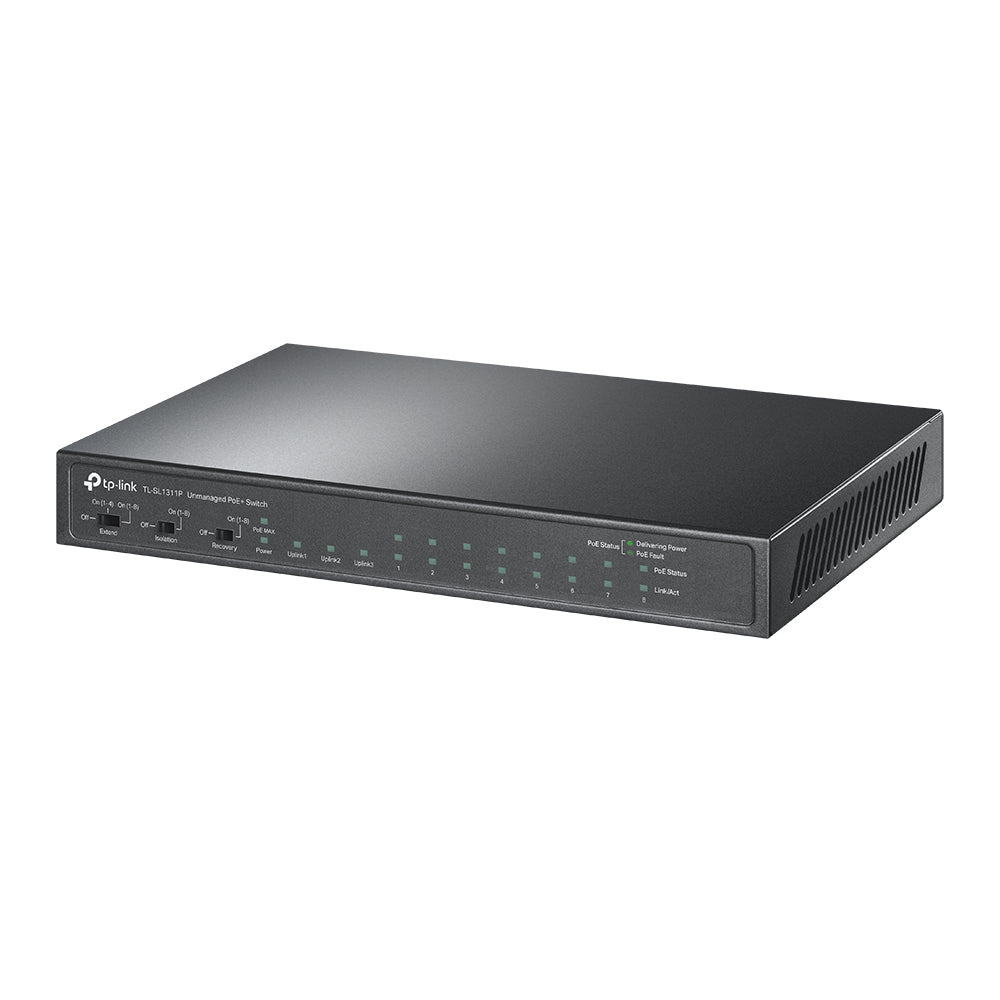

TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Installed SFP modules quantity: 0
• Installed SFP+ modules quantity: 0

Network

• Networking standards: IEEE 802.3af, IEEE 802.3at
• 10G support: No

Data transmission

• MAC address table: 2000 entries
• Switching capacity: 7.6 Gbit/s
• Forwarding rate: 5.6544 Mpps
• Store-and-forward: Yes
• Jumbo frames support: Yes
• Jumbo frames: 16

Design

• Rack mounting: No
• Product colour: Black
• Reset button: Yes
• LED indicators: Yes

Power

• Power source: AC/DC
• Power supply included: Yes
• DC input voltage: 53.5 V
• Power consumption (max): 77.32 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): Yes
• Total Power over Ethernet (PoE) budget: 65 W

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

• Width: 209 mm
• Depth: 126 mm
• Height: 26 mm

Packaging content

• Cables included: LAN (RJ-45)

Packaging data

• Package type: Box

Certificates

• Certification: FCC, CE, RoHS
