CyberPower Battery Pack Expansion for OLS6000ERTXL3U and OLS10000ERTXL3U UPS Systems, 3U Rackmountable

CyberPower Battery Pack Expansion for OLS6000ERTXL3U and OLS10000ERTXL3U UPS Systems, 3U Rackmountable

CYBERPOWER
View full details



Battery Expansion Pack for the OLS6000ERTXL3U and OLS10000ERTXL3U, 9ah

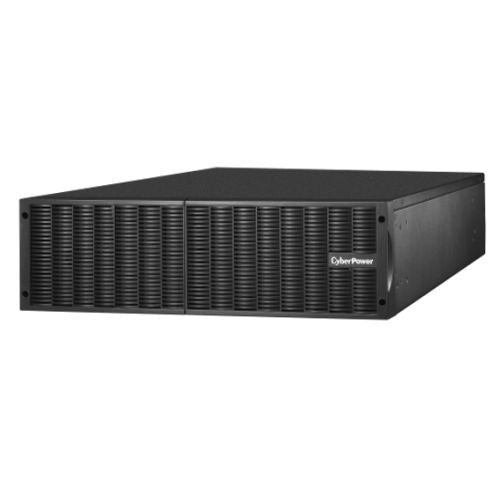

CyberPower BPSE240V75ART3UOA extended battery module significantly extends runtime when used with a compatible CyberPower UPS. With rugged, industrial-grade metal construction, it can be installed even in demanding environments.

  • Rack/Tower Convertible Configurations
  • EBM Expansion Capability
  • Sealed Lead-acid Batteries
  • Metal Housing
  • User Replaceable Batt.: No
  • Output Voltage: 240 Vdc
  • Rated Output Current : 75A
  • Battery Quantity: 20 pcs
  • Battery Voltage : 12V


Description

Specification

  • Type: Battery Pack Expansion
  • Battery Type: Sealed Lead-acid
  • Input Voltage: Battery Voltage: 12V
  • Output Voltage: Nominal Output Voltage: 240 Vdc
  • Recharge Time: 7 hours (Depends on Connected UPS)
  • Environment: "Operating Temperature: 32 ~ 104°F
    Operating Temperature: 0 ~ 40 °C
    Operating Relative Humidity (Non-condensing): 0 ~ 90 %
    Operating Elevation: 0-4,921 feet (0-1,500 meters)
    Storage Temperature: -4 ~ 104 °F
    Storage Temperature: -20 ~ 40 °C
    Storage Relative Humidity (Non-condensing): 0 ~ 90%
    Storage Elevation: 0-4,921 feet (0-1,500 meters)"
  • Dimensions: (WxHxD) 551 x 283 x 867 mm
  • Weight: 74.3 kg
  • Additional Features: Rack/Tower Convertible Configurations
    EBM Expansion Capability
    Metal Housing
    DC Plug-and-Play Power Connectors
    On-board Replaceable Fuse Cover
    DC Output Connector
    Battery Input Terminal Block
    User Replaceable Batt.: No
    Rated Output Current : 75A
    Battery Quantity: 20 pcs

    Click here for compatible products

  • Package Type: Retail
  • Package Weight: 74.3000 kg
  • Warranty: 2 Years - direct with CyberPower
