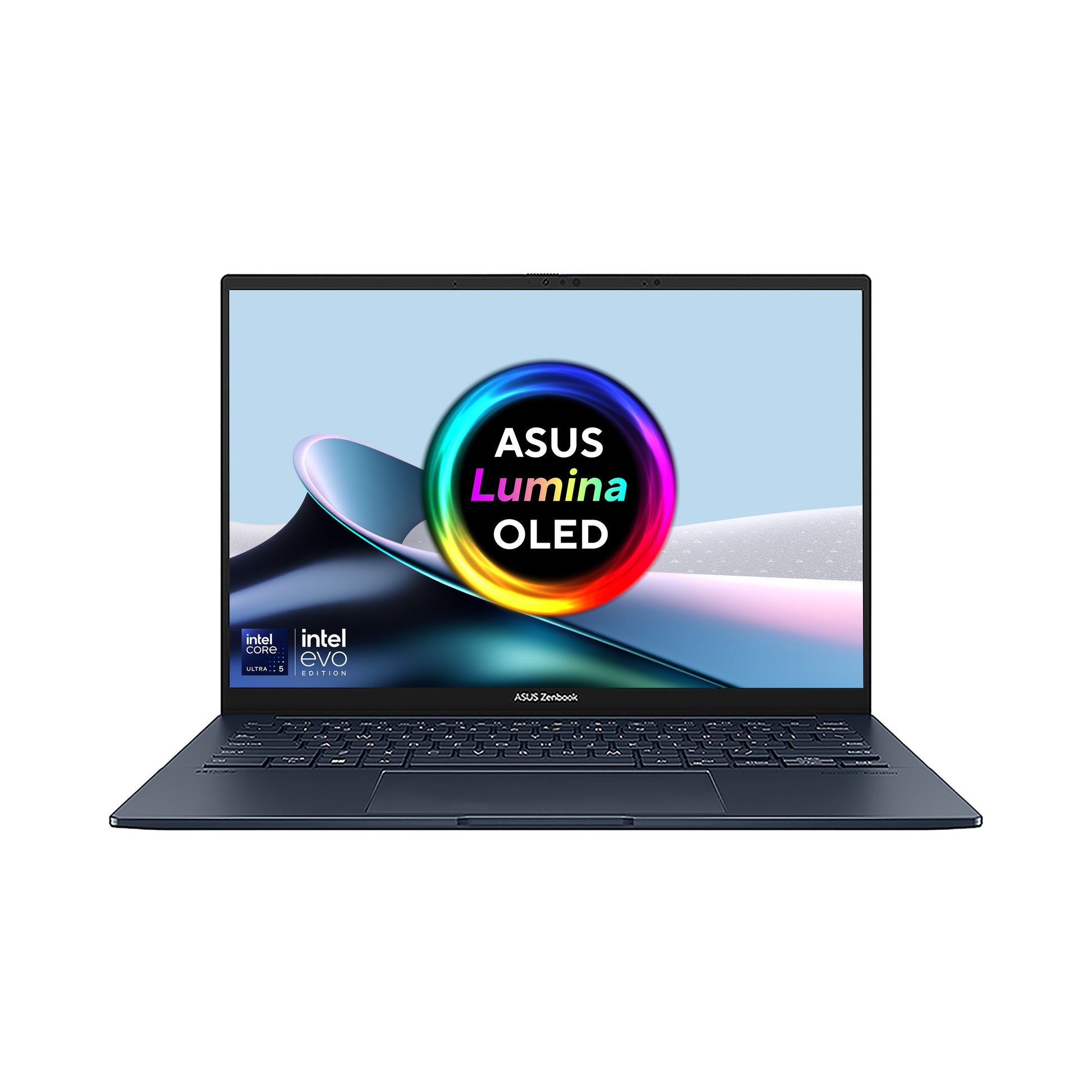

ASUS Zenbook 14 OLED UX3405CA-QL104W Intel Core Ultra 9 285H Laptop 35.6 cm (14") Touchscreen WUXGA 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home Blue

Design

• Product type: Laptop
• Product colour: Blue
• Form factor: Clamshell
• Colour name: Ponder Blue
• Housing material: Aluminium
• Market positioning: Home
• Country of origin: China

Display

• Display diagonal: 35.6 cm (14")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: Yes
• HD type: WUXGA
• Panel type: OLED
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 400 cd/m²
• Maximum display brightness (HDR): 500 cd/m²
• RGB colour space: DCI-P3
• Colour gamut: 100%
• Maximum refresh rate: 60 Hz
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 500

Processor

• Processor family: Intel Core Ultra 9
• Processor manufacturer: Intel
• Processor model: 285H
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4 GHz
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.5 GHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Performance-core base frequency: 2.9 GHz
• Efficient-core base frequency: 2.7 GHz
• Low Power Efficient-core Base Frequency: 1000 MHz
• Processor cache: 24 MB
• Processor cache type: Smart Cache
• Processor base power: 45 W
• Maximum turbo power: 115 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI datatype support on NPU: Int8
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 99 TOPs
• NPU performance up to: 13 TOPs
• GPU performance up to: 77 TOPs

Memory

• Internal memory: 32 GB
• Maximum internal memory: 32 GB
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Memory layout (slots x size): 1 x 32 GB
• Memory channels: Dual-channel

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)

Graphics

• On-board graphics card: Yes
• Discrete graphics card: No
• Discrete graphics card model: Not available
• On-board graphics card model: Intel Arc 140T
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card 4K support: Yes
• On-board graphics card 8K support: Yes
• Graphics card Open GL support: Yes

Audio

• Audio system: Smart Amp
• Built-in microphone: Yes

Camera

• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes

Performance

• Repairability index: 9.3

Keyboard

• Numeric keypad: No
• Pointing device: Touchpad
• Keyboard backlit: Yes

Software

• Operating system installed: Windows 11 Home
• Operating system architecture: 64-bit
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.

Battery

• Battery capacity: 75 Wh
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4

Power

• USB Type-C charging port: Yes
• AC adapter power: 65 W
• AC adapter frequency: 50 - 60 Hz
• AC adapter input voltage: 100 - 240 V
• AC adapter output current: 3.25 A
• AC adapter output voltage: 20 V
• USB Power Delivery (USB PD): Yes

Security

• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes

Certificates

• Compliance certificates: REACH

Sustainability

• Sustainability certificates: EPEAT Gold, ENERGY STAR

Weight & dimensions

• Weight: 1.28 kg
• Width: 312.4 mm
• Depth: 220.1 mm
• Height: 14.9 mm

Packaging data

• Package width: 410 mm
• Package depth: 75 mm
• Package height: 284 mm
• Package weight: 3.67 kg

Packaging content

• AC adapter included: Yes

Logistics data

• Commodity Classification Automated Tracking System (CCATS): 8471300000
