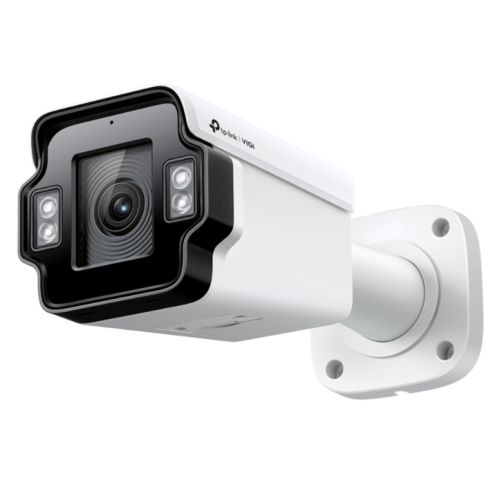

TP-LINK (InSight S345ZI) VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera, 5x Zoom, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 60m (197ft)
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

• True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Description

Specification

• #Hide#Form Factor: Bullet
• Suitable for Outdoor: Yes
• Wired/Wireless: Wired
• Interface(s): "1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  DC Power Port
  Memory Card Slot (MicroSD Card up to 512GB)"
• Image Sensor: 1/2.9” Progressive Scan CMOS
• Resolution: "Main Stream:
  2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  Sub-Stream:
  1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
  "
• Frame Rate: "Main Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  Sub-Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps"
• Video Compression: Main Stream:
  H.265+/H.265/H.264+/H.264

  Sub-Stream:
  H.265/H.264
• Lens: Motorized Varifocal Lens
  Lens Mount: 14mm diameter
  Aperture: F1.6

  DORI Distance:
  Detect: 66-207 m (217-579 ft)
  Observe: 28-86 m (92-282 ft)
  Recognize: 13-41 m (43-135 ft)
  Identify: 7-21 m (23-69 ft)
• Viewing Angle: Horizontal FOV: 29.6°-102.0°
  Vertical FOV: 16.8°-53.8°
  Diagonal FOV: 34.1°-122.8°
• Pan/Tilt/Rotation: Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°
• Day/Night Mechanism: IR Cut Filter
  Day/Night Switch: Unified/ Scheduled/ Auto
• IR Working Distance: IR LED Quantity: 4
  Range: 60m (197ft)
  Wavelength: 850nm
• Minimum Illumination: "0.005 Lux; 0 Lux with IR Light"
• Video Streaming: Main Stream
  Sub-Stream
• Image Settings: Mirror
  Brightness
  Contrast
  Saturation
  Sharpness
  Exposure
  WDR
  White Balance
  Prevent Overexposure to Infrared Light
  HLC Adjustable by Client Software
• Audio Features: Two-Way Audio
  Audio Input
  Audio Output
  Audio Compression
  Audio Sampling Rate: 8KHz
  Environment Noise Filtering
  Audio Bit Rate: 64 Kbps(G.711 alaw)
  Built-in Microphone records anything within a 15ft radius
• Alarm & Event Management: "Smart Event Detection:
  Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

  Basic Event:
  Motion Detection (Enhanced with Human & Vehicle Classification)
  Video Tampering Detection
  Exception (Illegal Login)

  Linkage Method:
  Memory Card Video Recording
  Message Push
  Audible Warning
  Email Alarm
  Upload Capture to FTP
  Alarm Out Device"
• Network: "Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

  ONVIF: Yes

  API: Open Network Video Interface (Profile S/T/G)

  Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  Cloud: Yes"
• Wireless Features: -
• Security: "Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication"
• Management: "VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS"
• Power Supply: "12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug
  PoE: 802.3af/at, class 0, Max.12 W"
• Additional Features: See Overview
• Weight/Dimensions: 1.04 Kg
  (LxWxH) 256 x 100 x 101 mm
• Environment: IP67 Waterproof
  Operating Temperature: -30–60 °C
  Storage Temperature: -40–60 °C
  Operating Humidity: 95% or Less (Non-Condensing)
  Storage Humidity: 95% or Less (Non-Condensing)
• Package Contents: VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories
• Package Weight: 1.4300 kg
• Warranty: 5 Years
• #Hide#Resolution: 4MP
