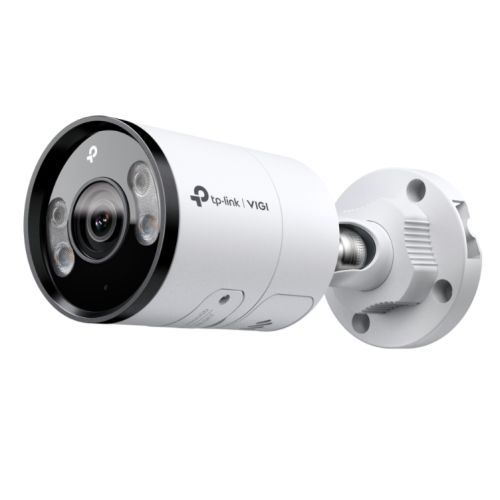

TP-LINK (InSight S385 2.8MM) VIGI 8MP Outdoor Full-Colour Bullet Network Camera w/ 2.8mm Lens, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

TP-LINK (InSight S385 2.8MM) VIGI 8MP Outdoor Full-Colour Bullet Network Camera w/ 2.8mm Lens, IP67, PoE, AI Detection/Classification, Two-Way Audio, H.265+

TP-LINK
View full details



VIGI 8MP Outdoor Full-Color Bullet Network Camera

  • 4K (8MP) Ultra HD and 24h Full-Color
  • People & Vehicle Analytics
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology
  • 12V DC/PoE






People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.






Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Learn more about VIGI AI technology >>






Smart Video Enhancement Technology
  • True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
  • Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
  • 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
  • White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.






Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Description

Specification

  • #Hide#Form Factor: Bullet
  • Suitable for Outdoor: Yes
  • Wired/Wireless: Wired
  • Interface(s): "1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
    DC Power Port
    Memory Card Slot (MicroSD Card up to 512GB)"
  • Image Sensor: 1/2.7” Progressive Scan CMOS
  • Resolution: "Main Stream:
    3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
    1280x720

    Sub-Stream:
    848x480, 704x576, 640x480, 640x360, 352x288, 320x240"
  • Frame Rate: "Main Stream:
    50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
    60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    Sub-Stream:
    50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fp
    60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
    If 120dB is turned on, the frame rate can only support up to 20fps."
  • Video Compression: Main Stream:
    H.265+/H.265/H.264+/H.264

    Sub-Stream:
    H.265/H.264
  • Lens: 2.8mm Fixed Focal Lens
    Lens Mount: M12*P 0.5
    Aperture: F1.6

    DORI Distance:
    Detect: 85 m (278 ft)
    Observe: 35 m (116 ft)
    Recognize: 17 m (56 ft)
    Identify: 8 m (28 ft)
  • Viewing Angle: Horizontal FOV: 111.4°
    Vertical FOV: 58.8°
    Diagonal FOV: 134°
  • Pan/Tilt/Rotation: Pan: 0° to 360°
    Tilt: 0° to 90°
    Rotation: 0° to 360°
  • Day/Night Mechanism: IR Cut Filter
    Day/Night Switch: Unified/ Scheduled/ Auto
  • IR Working Distance: IR LED Quantity: 2
    Range: 30m
    Wavelength: 850nm
  • Minimum Illumination: "0.005 Lux; 0 Lux with IR/White light"
  • Video Streaming: Main Stream
    Sub-Stream
  • Image Settings: Mirror
    Brightness
    Contrast
    Saturation
    Sharpness
    Exposure
    WDR
    White Balance
    Prevent Overexposure to Infrared Light
    HLC Adjustable by Client Software
  • Audio Features: Two-Way Audio
    Audio Input
    Audio Output
    Audio Compression
    Audio Sampling Rate: 8KHz
    Environment Noise Filtering
    Audio Bit Rate: 64 Kbps(G.711 alaw)
    Built-in Microphone records anything within a 15ft radius
  • Alarm & Event Management: "Smart Event Detection:
    Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

    Basic Event:
    Motion Detection (Enhanced with Human & Vehicle Classification)
    Video Tampering Detection
    Exception (Illegal Login)

    Linkage Method:
    Memory Card Video Recording
    Message Push
    Audible Warning
    White Light Flashing"
  • Network: "Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

    ONVIF: Yes

    API: ONVIF Profile S/T/G

    Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

    Cloud: Yes"
  • Wireless Features: -
  • Security: "Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication"
  • Management: "VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS"
  • Power Supply: "12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
    PoE: 802.3af/at, class 0, Max. 11.5 W"
  • Additional Features: See Overview
  • Weight/Dimensions: 0.525 Kg
    (LxWxH) 184 x 74 x 74 mm
  • Environment: IP67 Waterproof
    Operating Temperature: -30–60 °C
    Storage Temperature: -40–60 °C
    Operating Humidity: 95% or Less (Non-Condensing)
    Storage Humidity: 95% or Less (Non-Condensing)
  • Package Contents: VIGI Network Camera
    Quick Start Guide
    Waterproof Cable Attachments
    Mounting Accessories
  • Package Weight: 0.7500 kg
  • Warranty: 5 Years
  • #Hide#Resolution: 8MP
