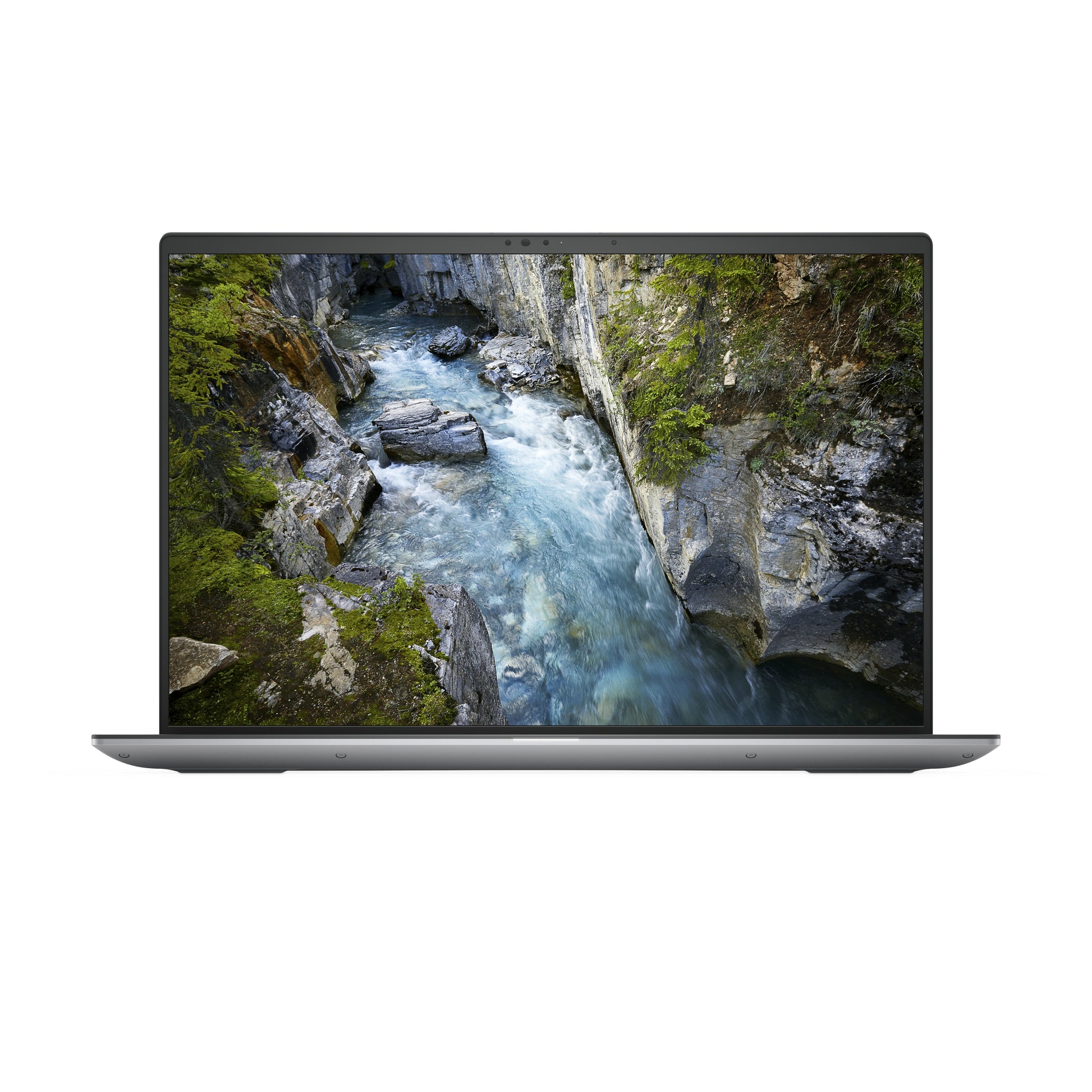

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 1000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro UK English Grey
DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 1000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro UK English Grey
Regular price
£2,459.99
Regular price
Sale price
£2,459.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Intelligent performance. Power to create your masterpieces.
A premium workstation built for users who want a large display and exceptional, intelligent performance in a thin and light design. Features FHD HDR IR camera, Haptics trackpad and premium audio for a high-quality experience.
A premium workstation built for users who want a large display and exceptional, intelligent performance in a thin and light design. Features FHD HDR IR camera, Haptics trackpad and premium audio for a high-quality experience.
- Product type: Mobile workstation
- Product colour: Grey
- Form factor: Clamshell
- Market positioning: Business
- Intel® vPro™ Platform Eligibility: Yes
- Display diagonal: 40.6 cm (16")
- Display resolution: 1920 x 1200 pixels
- Touchscreen: No
- HD type: Full HD+
- Panel type: IPS
- LED backlight: Yes
- Native aspect ratio: 16:10
- Anti-glare screen: Yes
- Display brightness: 500 cd/m²
- Pixel density: 142 ppi
- RGB colour space: DCI-P3
- Colour gamut: 100%
- Maximum refresh rate: 60 Hz
- Contrast ratio (typical): 1300:1
- Processor family: Intel Core Ultra 7
- Processor manufacturer: Intel
- Processor model: 165H
- Processor generation: Intel® Core™ Ultra (Series 1)
- Processor cores: 16
- Processor threads: 22
- Processor boost frequency: 5 GHz
- Performance cores: 6
- Efficient cores: 8
- Low Power Efficient-cores: 2
- Performance-core Max Turbo Frequency: 5 GHz
- Efficient-core Max Turbo Frequency: 3.8 GHz
- Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
- Performance-core base frequency: 1.4 GHz
- Efficient-core base frequency: 0.9 GHz
- Low Power Efficient-core Base Frequency: 700 MHz
- Processor cache: 24 MB
- Processor cache type: Smart Cache
- Processor base power: 28 W
- Maximum turbo power: 115 W
- Neural processor unit (NPU): Intel AI Boost
- Maximum frequency NPU: 1.4 GHz
- Sparsity support: Yes
- Windows Studio effects support: Yes
- AI datatype support on NPU: FP16, FP32, Int8
- AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
- Internal memory: 16 GB
- Internal memory type: LPDDR5x-SDRAM
- Memory form factor: On-board
- Memory channels: Dual-channel
- Memory data transfer rate: 7467 MT/s
- Total storage capacity: 1 TB
- Storage media: SSD
- Optical drive type: No
- Total SSDs capacity: 1 TB
- Number of SSDs installed: 1
- SSD capacity: 1 TB
- SSD interface: PCI Express 4.0
- NVMe: Yes
- SSD form factor: M.2
- SSD performance class: 40
- M.2 SSD size: 2280 (22 x 80 mm)
- On-board graphics card: Yes
- Discrete graphics card: Yes
- Discrete graphics card model: NVIDIA RTX 1000 Ada
- On-board graphics card model: Intel Arc Graphics
- Discrete graphics card memory: 6 GB
- Discrete graphics memory type: GDDR6
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel Arc Graphics
- Number of built-in speakers: 4
- Speakers manufacturer: Waves
- Built-in microphone: Yes
- Number of microphones: 2
- Front camera: Yes
- Front camera resolution (numeric): 2.07 MP
- Front camera resolution: 1920 x 1080 pixels
- Front camera HD type: Full HD
- Video capturing speed: 30 fps
- Infrared (IR) camera: Yes
- Mobile network connection: No
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Antenna type: 2x2
- WLAN controller model: Intel Wi-Fi 7 BE200
- WLAN controller manufacturer: Intel
- Bluetooth: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- USB 2.0 ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- HDMI version: 2.1
- Thunderbolt 4 ports quantity: 2
- Intel® Thunderbolt 4: Yes
- Combo headphone/mic port: Yes
- USB Type-C DisplayPort Alternate Mode: Yes
- Ambient light sensor: Yes
- Accelerometer: Yes
- Proximity sensor: Yes
- Gyroscope: Yes
- Hall sensor: Yes
- Numeric keypad: No
- Pointing device: Touchpad
- Keyboard backlit: Yes
- Keyboard language: UK English
- Copilot key: Yes
- Operating system installed: Windows 11 Pro
- Operating system architecture: 64-bit
- Operating system language: German, Dutch, English, French, Italian
- Trial software: No Microsoft Office Licence Included - 30 day Trial Offer Only
- Battery capacity: 99.5 Wh
- Battery technology: Lithium-Ion (Li-Ion)
- Number of battery cells: 6
- Battery voltage: 11.55 V
- Battery recharge time: 3 h
- Fast charging: Yes
- Battery charge indicator: Yes
- Battery weight: 363 g
- AC adapter power: 165 W
- AC adapter frequency: 50 - 60 Hz
- AC adapter input voltage: 100 - 240 V
- USB Power Delivery (USB PD): Yes
- Cable lock slot: Yes
- Cable lock slot type: Wedge
- Fingerprint reader: Yes
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
- Password protection: Yes
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: -15.2 - 3048 m
- Non-operating altitude: -15.2 - 10668 m
- Operating shock: 110 G
- Non-operating shock: 160 G
- Operating vibration: 0.66 G
- Non-operating vibration: 1.3 G
- Weight: 2.03 kg
- Width: 353.7 mm
- Depth: 240.3 mm
- Height (front): 2.05 cm
- Height (rear): 2.22 cm
