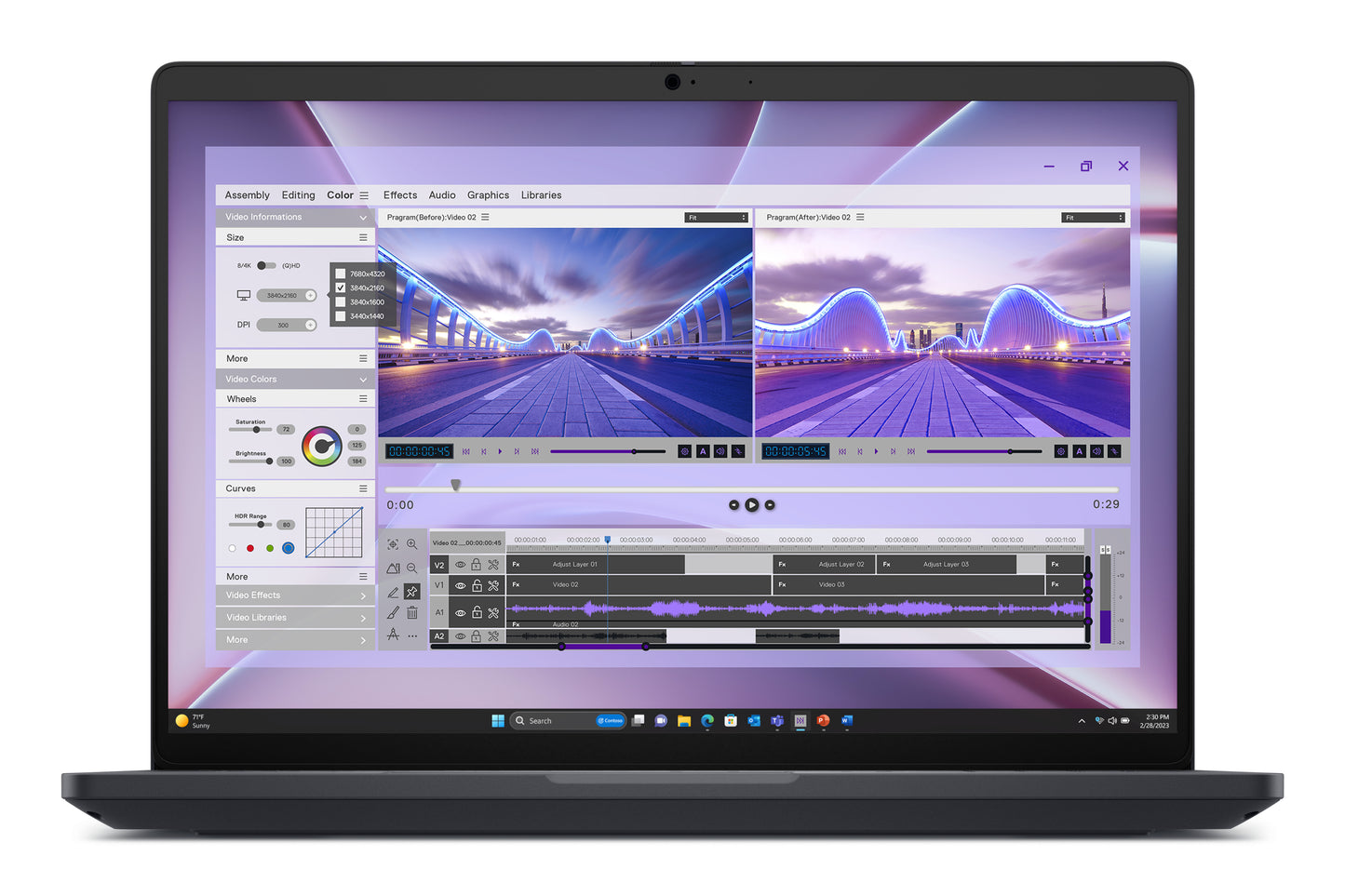

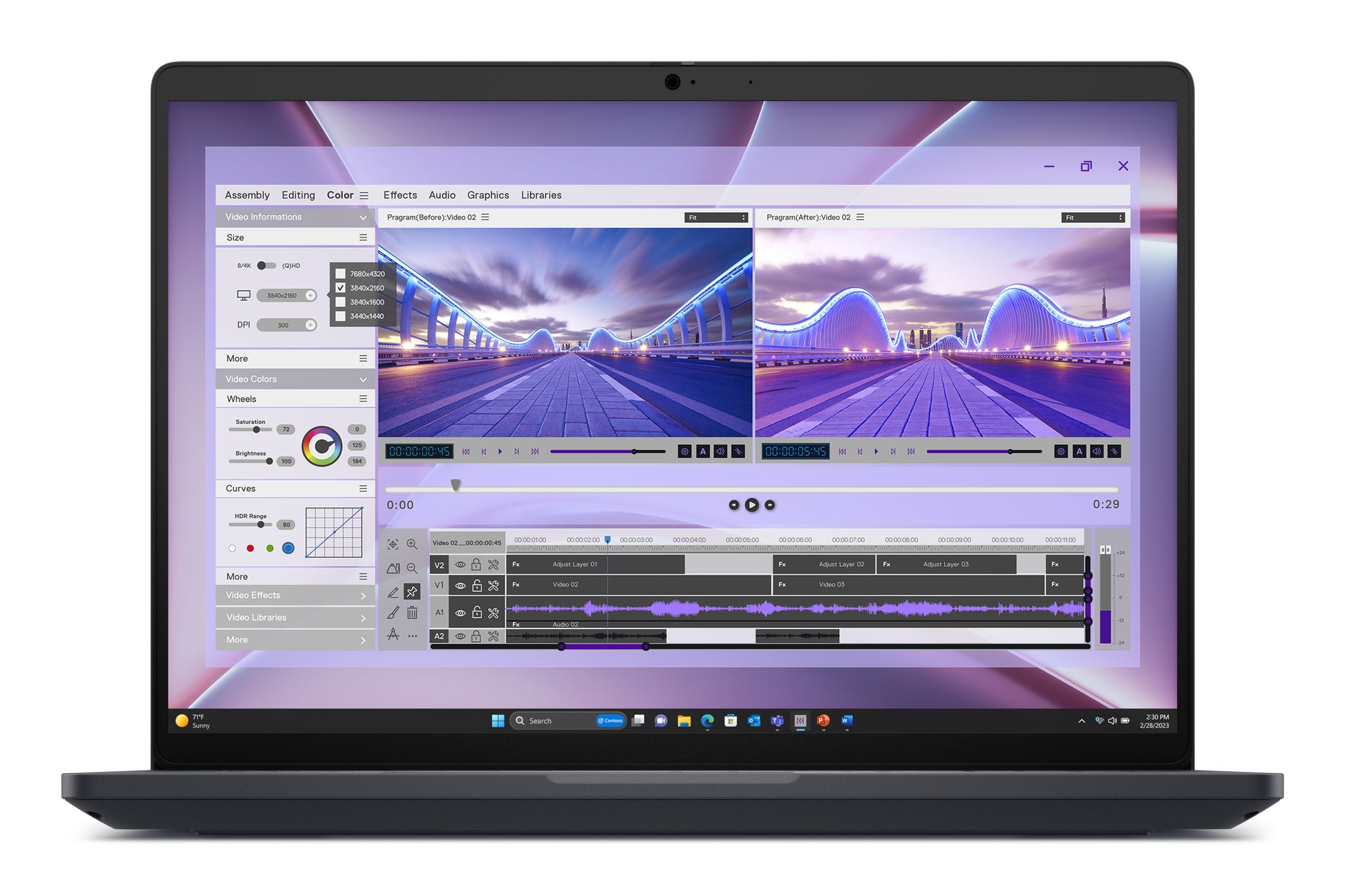

DELL Pro Max 16 MC16250 Intel Core Ultra 7 265H Mobile workstation 40.6 cm (16") Full HD+ 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX PRO 500 Blackwell Wi-Fi 7 (802.11be) Windows 11 Pro UK English Black

Design

• Product type: Mobile workstation
• Product colour: Black
• Form factor: Clamshell
• Colour name: Magnetite
• Market positioning: Business
• Intel® vPro™ Platform Eligibility: Yes

Display

• Display diagonal: 40.6 cm (16")
• Display resolution: 1920 x 1200 pixels
• Touchscreen: No
• HD type: Full HD+
• Panel type: WVA
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 300 cd/m²
• Pixel density: 142 ppi
• Display diagonal (metric): 40.646 cm
• RGB colour space: NTSC
• Colour gamut: 45%
• Maximum refresh rate: 60 Hz
• Contrast ratio (typical): 1000:1

Processor

• Processor family: Intel Core Ultra 7
• Processor manufacturer: Intel
• Processor model: 265H
• Processor generation: Intel Core Ultra (Series 2)
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.3 GHz
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.3 GHz
• Efficient-core Max Turbo Frequency: 4.5 GHz
• Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
• Performance-core base frequency: 2.2 GHz
• Efficient-core base frequency: 1.7 GHz
• Low Power Efficient-core Base Frequency: 700 MHz
• Processor cache: 24 MB
• Processor base power: 28 W
• Maximum turbo power: 115 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 97 TOPs
• NPU performance up to: 13 TOPs
• GPU performance up to: 75 TOPs

Memory

• Internal memory: 16 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 8 GB
• Memory slots: 2x SO-DIMM
• Memory channels: Dual-channel
• Memory data transfer rate: 5600 MT/s
• Non-ECC: Yes

Storage

• Total storage capacity: 512 GB
• Storage media: SSD
• Optical drive type: No
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• SSD performance class: 35
• M.2 SSD size: 2230 (22 x 30 mm)
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

• On-board graphics card: Yes
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA RTX PRO 500 Blackwell
• On-board graphics card model: Intel Arc 140T
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card memory: 6 GB
• Discrete graphics memory type: GDDR7
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel Arc Graphics

Audio

• Audio chip: Realtek ALC3329
• Audio system: MaxxAudio Pro
• Number of built-in speakers: 2
• Speakers manufacturer: Waves
• Speaker power: 2.5 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera

• Front camera: Yes
• Front camera resolution (numeric): 2.07 MP
• Front camera resolution: 1920 x 1080 pixels
• Front camera HD type: Full HD
• Video capturing speed: 30 fps
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Network

• Mobile network connection: No
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
• Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
• Antenna type: 2x2
• WLAN controller model: Intel Wi-Fi 7 BE201
• WLAN controller manufacturer: Intel
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Bluetooth: Yes
• WWAN: Upgradable

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• HDMI ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• PowerShare: Yes

Performance

• Motherboard chipset: Intel SoC
• Accelerometer: Yes
• Hall sensor: Yes

Keyboard

• Numeric keypad: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard language: UK English
• Copilot key: Yes

Software

• Operating system installed: Windows 11 Pro
• Operating system architecture: 64-bit
• Trial software: Activate Your Microsoft 365 For A 30 Day Trial

Brand-specific features

• Brand specific technologies: Control Vault 3+, HDR Camera, Express Charge Boost capable

Battery

• Battery capacity: 96 Wh
• Battery technology: Lithium Polymer (LiPo)
• Number of battery cells: 6
• Battery voltage: 11.7 V
• Battery recharge time: 3 h
• Fast charging: Yes
• Battery weight: 351 g

Power

• USB Type-C charging port: Yes
• USB Type-C required charging power (min): 45 W
• USB Type-C required charging power (max): 130 W
• AC adapter power: 130 W
• AC adapter frequency: 50/60 Hz
• AC adapter input voltage: 100 - 240 V
• USB Power Delivery (USB PD): Yes
• USB charging voltage: 20,5,9,15 V

Security

• Cable lock slot: Yes
• Cable lock slot type: Wedge
• Fingerprint reader: Yes
• Smart card reader: Yes
• Trusted Platform Module (TPM): Yes
