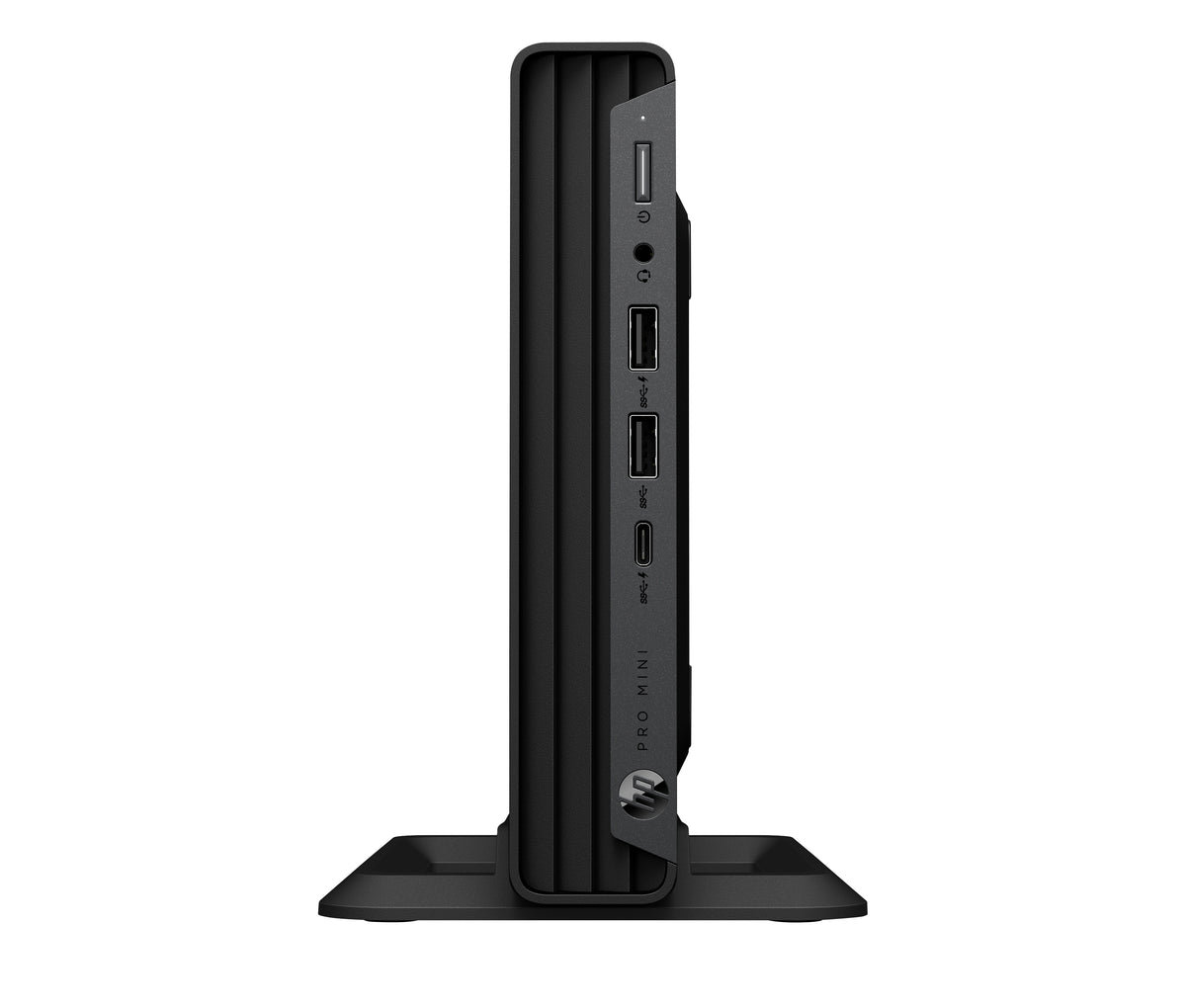

HP Pro Mini 400 G9 Intel® Core™ i5 i5-14500T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Processor

• Processor family: Intel® Core™ i5
• Processor manufacturer: Intel
• Processor model: i5-14500T
• Processor generation: Intel® Core™ i5 (14th gen)
• Processor cores: 14
• Processor threads: 20
• Processor boost frequency: 4.8 GHz
• Performance cores: 6
• Efficient cores: 8
• Performance-core Max Turbo Frequency: 4.8 GHz
• Efficient-core Max Turbo Frequency: 3.4 GHz
• Performance-core base frequency: 1.7 GHz
• Efficient-core base frequency: 1.2 GHz
• Processor cache: 24 MB
• Processor cache type: L3
• Processor base power: 35 W
• Maximum turbo power: 92 W

Memory

• Internal memory: 16 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 1 x 16 GB
• Memory slots: 2x DIMM
• Memory clock speed: 4800 MHz
• Memory data transfer rate: 4800 MT/s

Storage

• Total storage capacity: 512 GB
• Optical drive type: No
• Storage media: SSD
• Number of storage drives installed: 1
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: PCI Express
• NVMe: Yes
• SSD form factor: M.2

Graphics

• Discrete graphics card: No
• On-board graphics card: Yes
• Discrete graphics card model: Not available
• On-board graphics card model: Intel UHD Graphics 770
• On-board GPU manufacturer: Intel
• On-board graphics card family: Intel® UHD Graphics

Network

• Ethernet LAN: Yes
• Wi-Fi: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Cabling technology: 10/100/1000Base-T(X)
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3

Ports & interfaces

• USB 2.0 ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• Thunderbolt 3 ports quantity: 0
• HDMI ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 2
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Combo headphone/mic port: Yes

Design

• Chassis type: Mini PC
• Product colour: Black
• Colour name: Jack black
• Number of 2.5" bays: 1
• Introduction year: 2024
• Country of origin: China, Thailand

Performance

• Product type: Mini PC
• Market positioning: Proven productivity
• Motherboard chipset: Intel Q670
• Audio chip: Realtek ALC3252
• Password protection: Yes
• Password protection type: BIOS, Power on
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0

Software

• Operating system installed: Windows 11 Pro
• Pre-installed software: HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT
• Bundled software: HP Wolf Pro Security Edition (1 year)

Processor special features

• Intel® Turbo Boost Technology: Yes

Brand-specific features

• HP Support Assistant: Yes
• HP Security tools: Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Admin; HP BIOSphere Gen6; HP Tamper Lock; HP Sure Start Gen7; HP Platform Certificate On Device Installation
• HP Management tools: HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download)
• HP segment: Business

Power

• Power supply: 90 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz

Operational conditions

• Operating temperature (T-T): 10 - 35 °C
• Operating relative humidity (H-H): 10 - 90%

Sustainability

• Sustainability certificates: ENERGY STAR, EPEAT

Weight & dimensions

• Width: 177 mm
• Depth: 175 mm
• Height: 177 mm
• Weight: 1.42 kg
• Package width: 498 mm
• Package depth: 235 mm
• Package height: 132 mm
• Package weight: 3.4 kg

Packaging content

• Mouse included: Yes
• Mouse connectivity: Wired
• Keyboard included: Yes
• Keyboard connectivity: Wired
• Input device model: HP 125 Wired Mouse

Logistics data

• Harmonized System (HS) code: 8471500000

Carbon footprint

• Total carbon footprint (kg of CO2e): 110
• Carbon emissions, manufacturing (kg of CO2e): 93
• Carbon emissions, logistics (kg of CO2e): 1
• Carbon emissions, end-of-life (kg of CO2e): 1
• Total carbon emissions, w/o use phase (kg of CO2e): 14

Display

• Display included: No

Technical details

• General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

Other features

• Manufacturer warranty: 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
• Support service included: HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf

Brand-specific features

• HP GTIN (EAN/UPC): 198415815880

Sustainability

• Sustainability compliance: Yes

Other features

• Keyboard type: USB
• UNSPSC-code: 43211507
