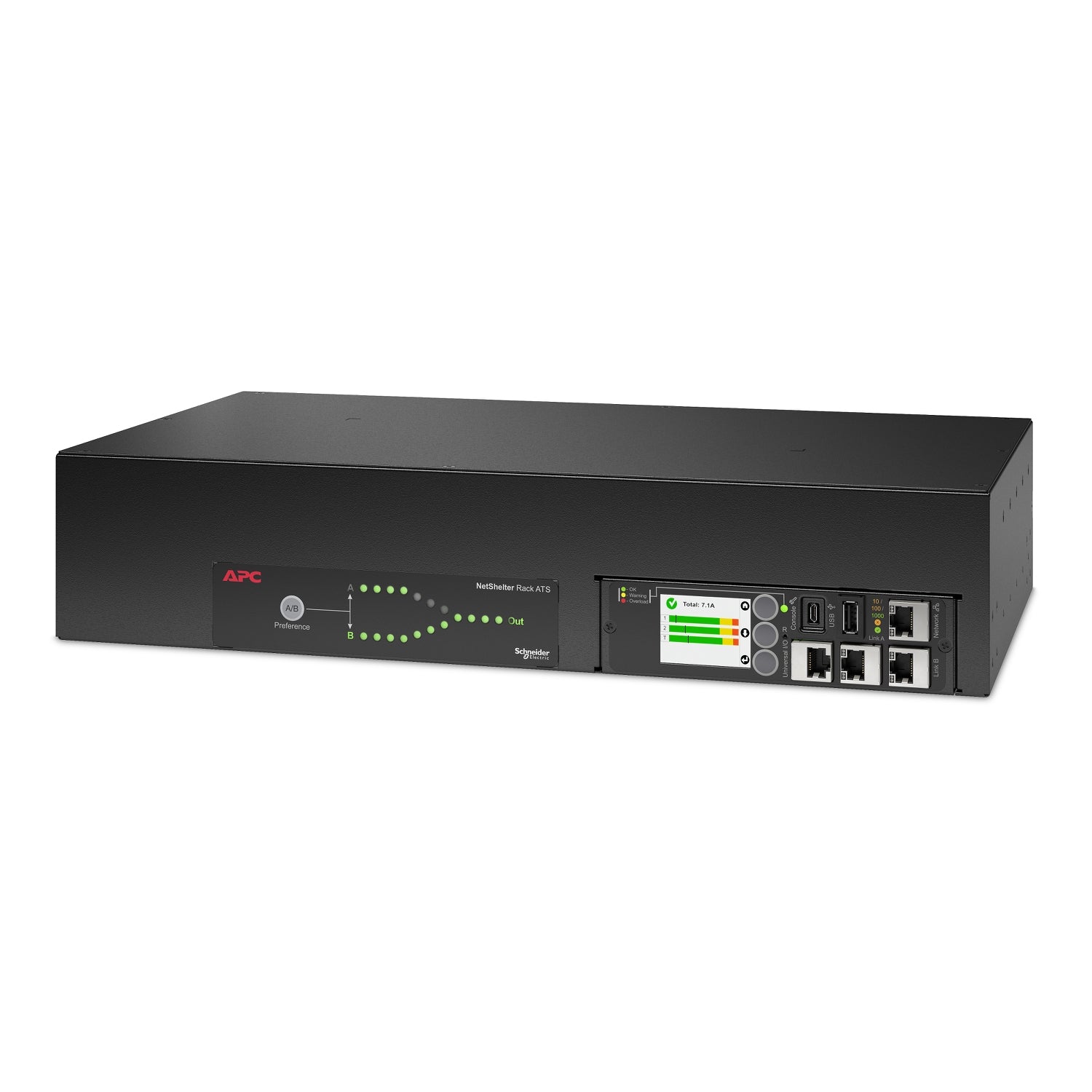

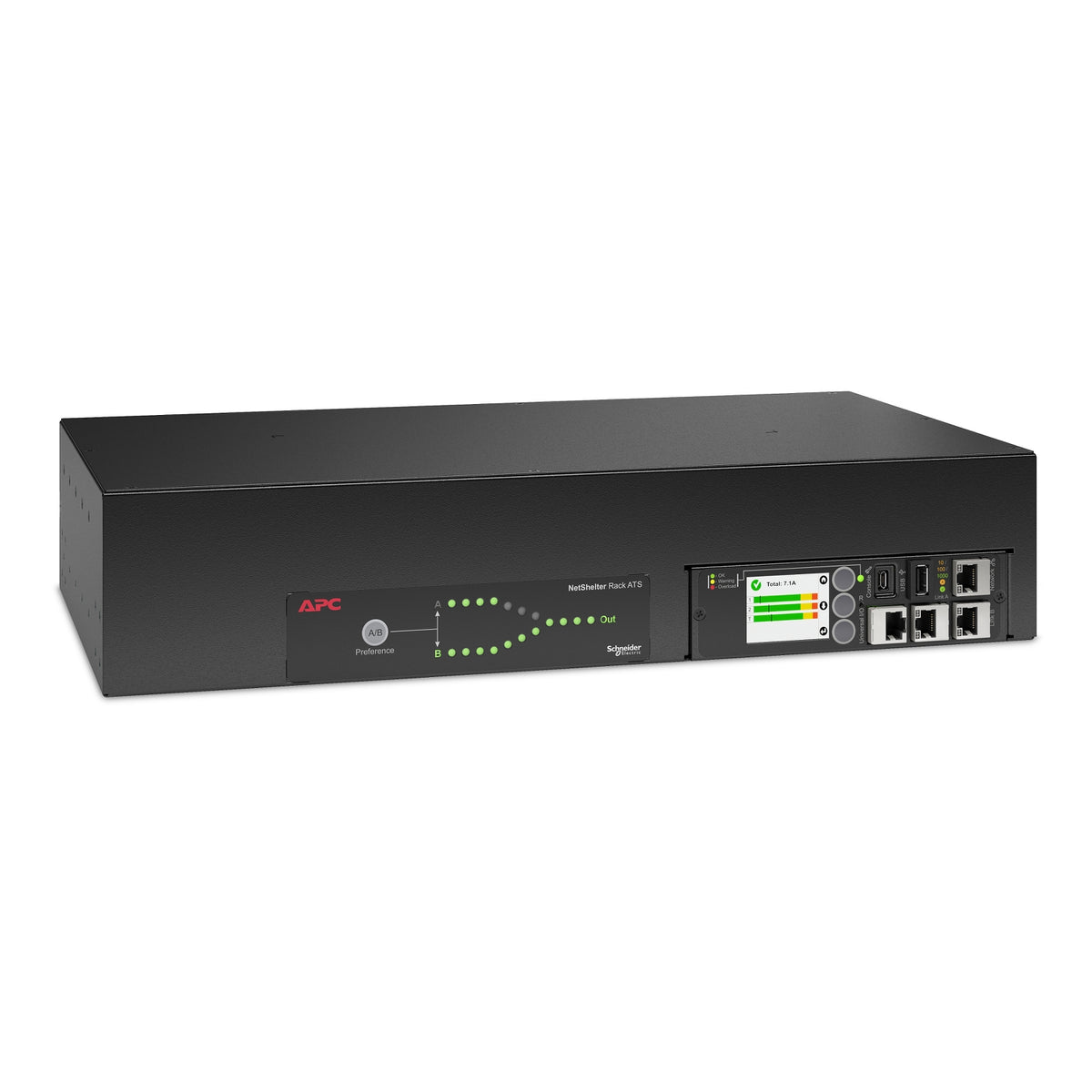

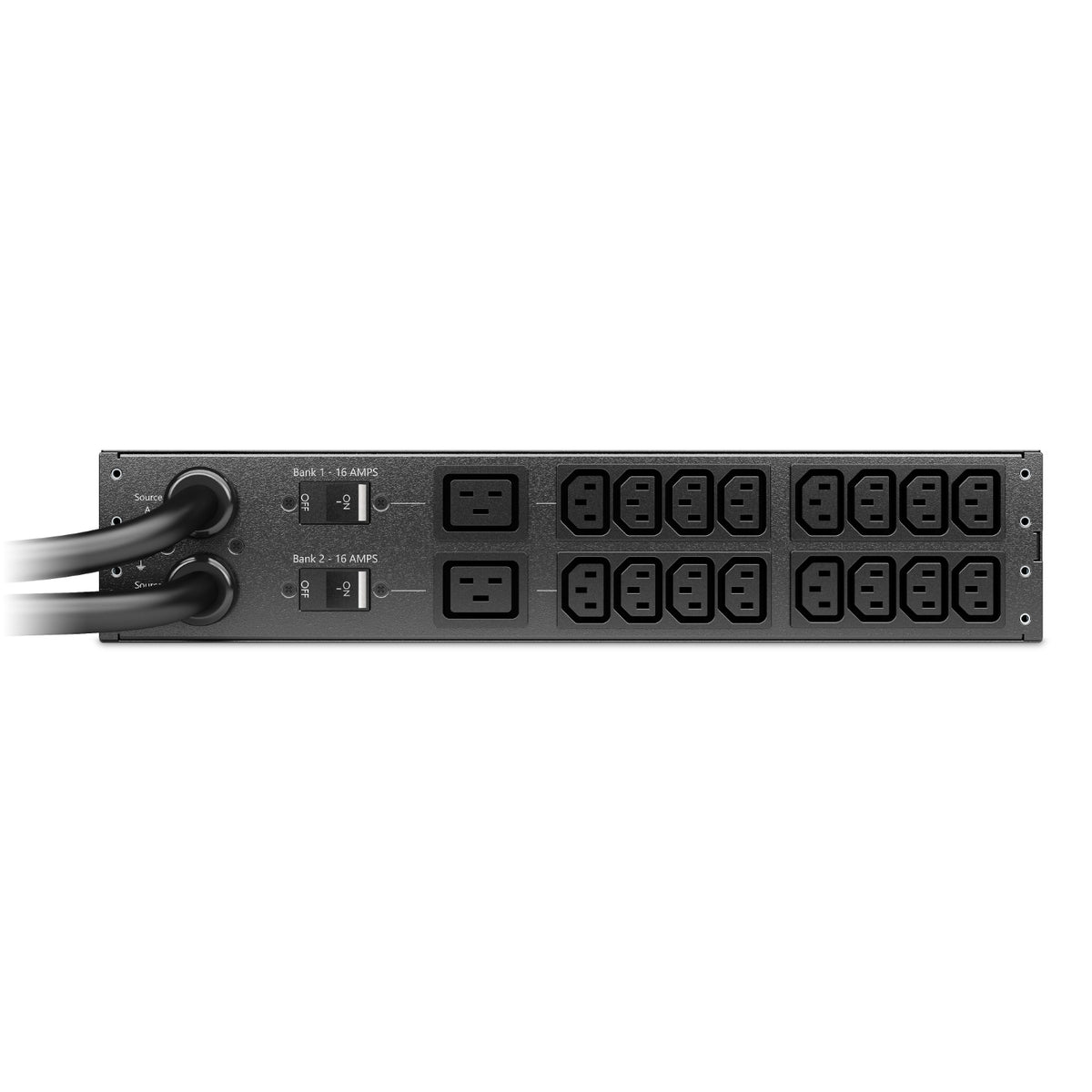

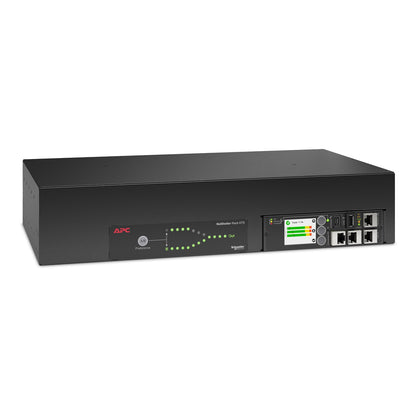

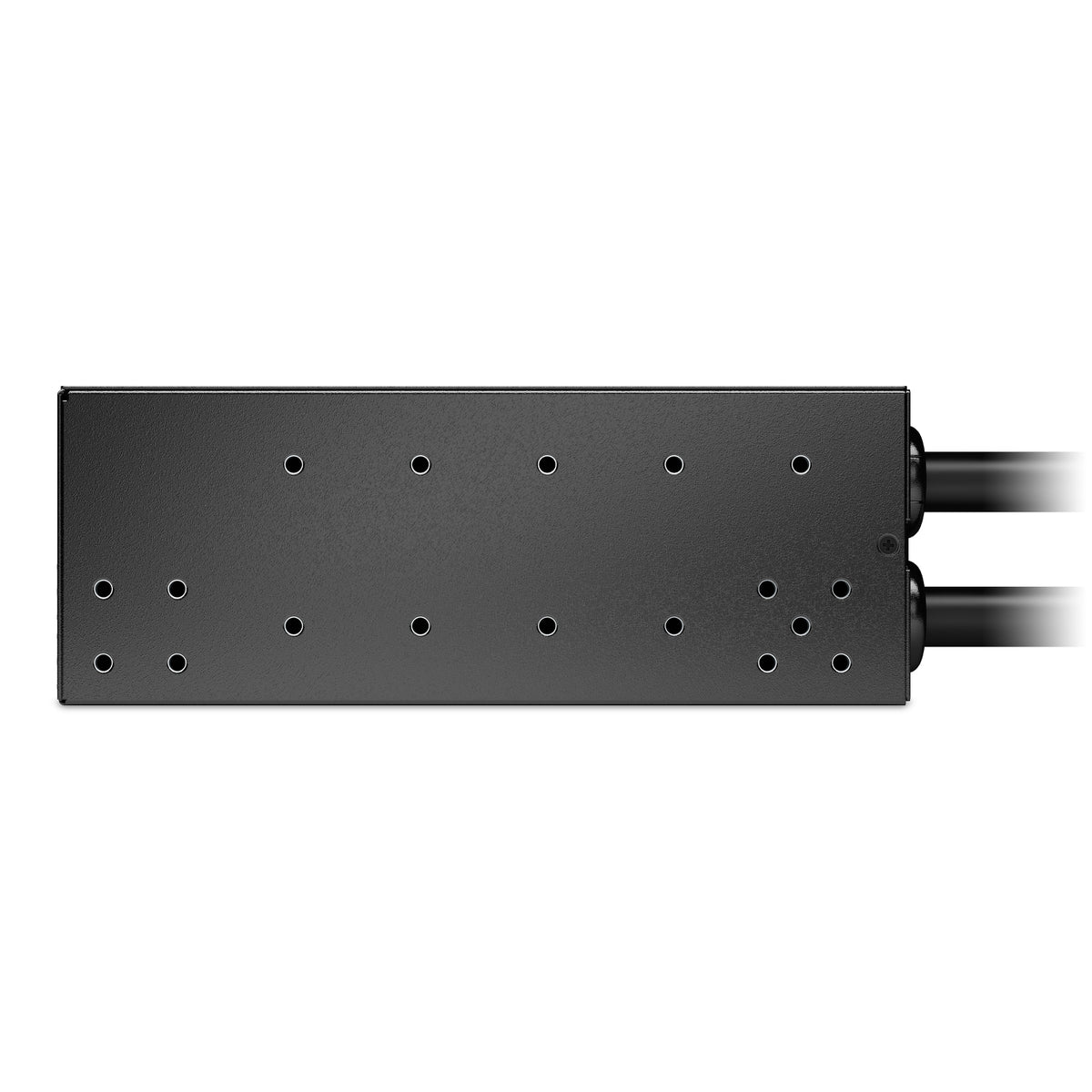

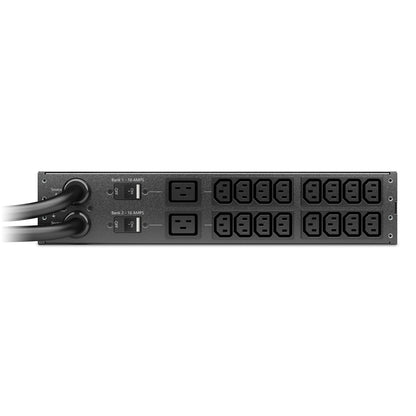

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13

Part no.AP4424A

£1,016.67ex VAT£1,220.00 inc VAT
£0.00 £1,016.67ex VAT£1,220.00 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Specifications

Power
Input operation voltage (min)207 V
Input operation voltage (max)253 V
AC input frequency50 - 60 Hz
Input current32 A
Output current32 A
Design
Form factorRackmount
Rack capacity2U
Product colourBlack
CertificationEN 55022 class A, FCC part 15 class A
Ports & interfaces
AC outlets quantity18 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Technical details
Total carbon footprint (kg of CO2e)794.41
Weight & dimensions
Width432 mm
Depth236 mm
Height88 mm
Weight6.94 kg
