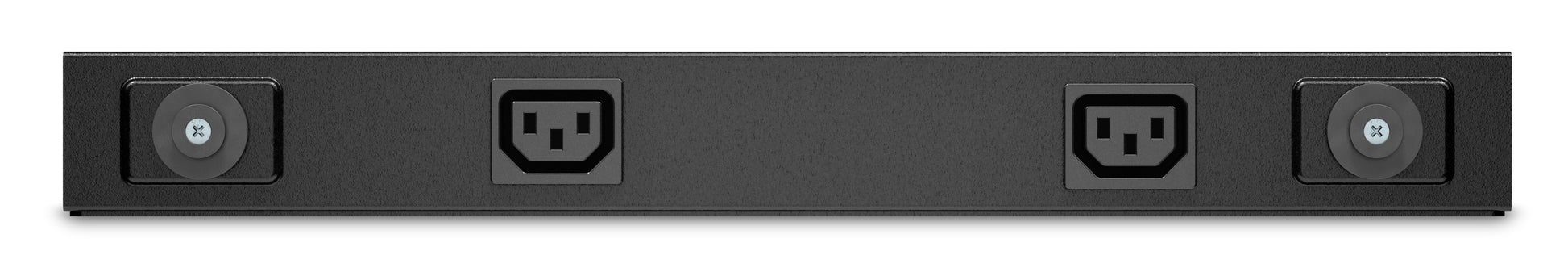

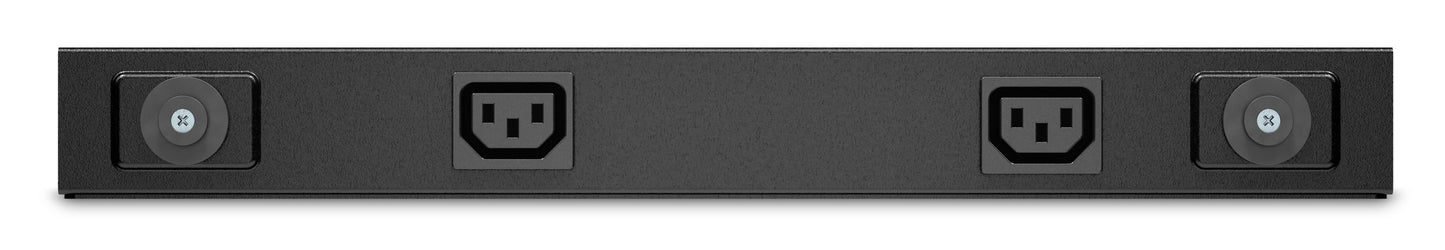

APC AP6020A Power Distribution Unit (PDU) 13 AC outlet(s) 0U/1U Black
APC AP6020A Power Distribution Unit (PDU) 13 AC outlet(s) 0U/1U Black
Part no.AP6020A
Regular price
£80.83ex VAT£96.99 inc VAT
Regular price
£0.00
Sale price
£80.83ex VAT£96.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
Design
| PDU types | Basic |
|---|---|
| Rack capacity | 0U/1U |
| Type | Single-phase |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| AC outlets quantity | 13 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Output connections | IEC 320 C13 |
Power
| Nominal input voltage | 100-240 V |
|---|---|
| Maximum current | 20 A |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Width | 44 mm |
|---|---|
| Depth | 93 mm |
| Height | 388 mm |
| Weight | 1.5 kg |
