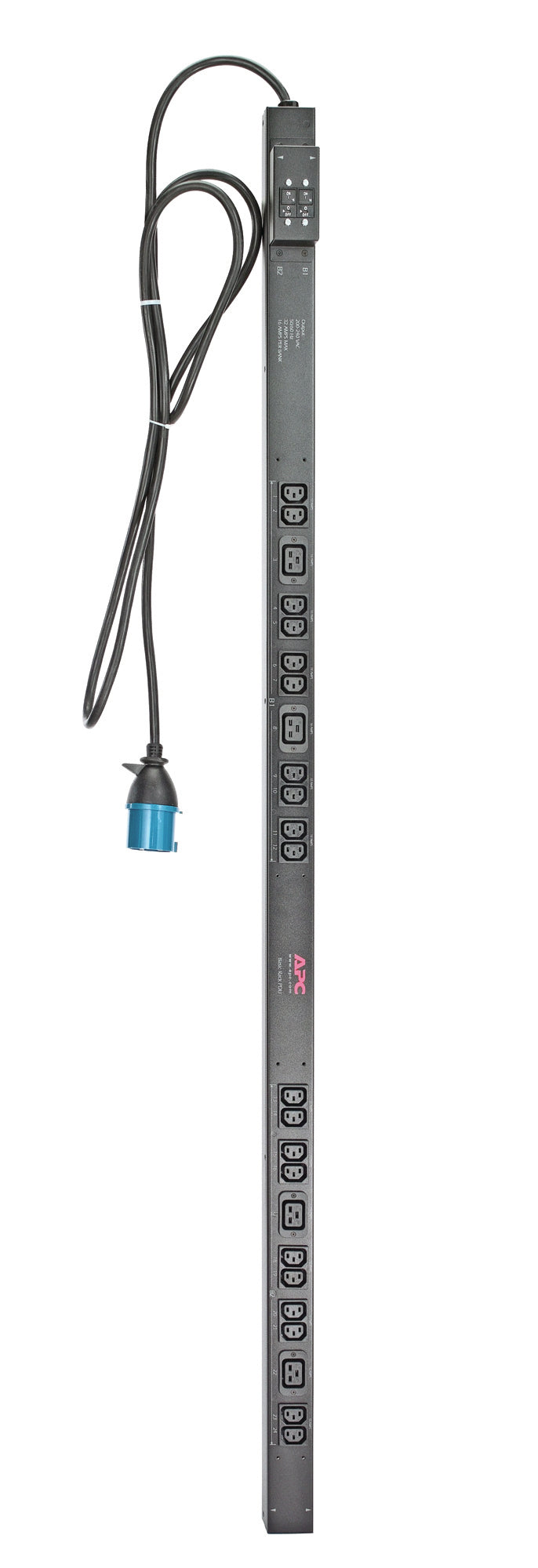

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black

£406.99
£406.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Features: \r
Single input power source \r
Toolless Mounting Capabilities \r
Vertical Mounting Capabilities \r


    Design

    • PDU types: Basic
    • Rack capacity: 0U
    • Type: Single-phase
    • Mounting: Vertical
    • Product colour: Black

    Ports & interfaces

    • AC outlets quantity: 24 AC outlet(s)
    • AC outlet types: C13 coupler, C19 coupler
    • Power plug: IEC 60309
    • Input connection type: IEC 309 32A
    • Output connections: (20) IEC 320 C13 \n(4) IEC 320 C19\n

    Features

    • Cable length: 3050 m

    Power

    • Nominal input voltage: 230 V
    • Nominal output voltage: 230 V
    • Output voltage: 230 V
    • Load capacity: 7680 VA
    • Maximum input current per phase: 32 A
    • Maximum total current draw per phase: 32 A
    • Maximum power: 7680 W

    Operational conditions

    • Operating temperature (T-T): -25 - 65 °C
    • Storage temperature (T-T): 0 - 45 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%

    Weight & dimensions

    • Width: 56 mm
    • Depth: 44 mm
    • Height: 1619 mm
    • Weight: 5.57 kg

    Packaging data

    • Package weight: 6.48 kg
    • Package width: 152 mm
    • Package depth: 127 mm
    • Package height: 2134 mm

    Ports & interfaces

    • I/O ports: (20) IEC 320 C13 \n(4) IEC 320 C19 \n IEC 309 32A\n
