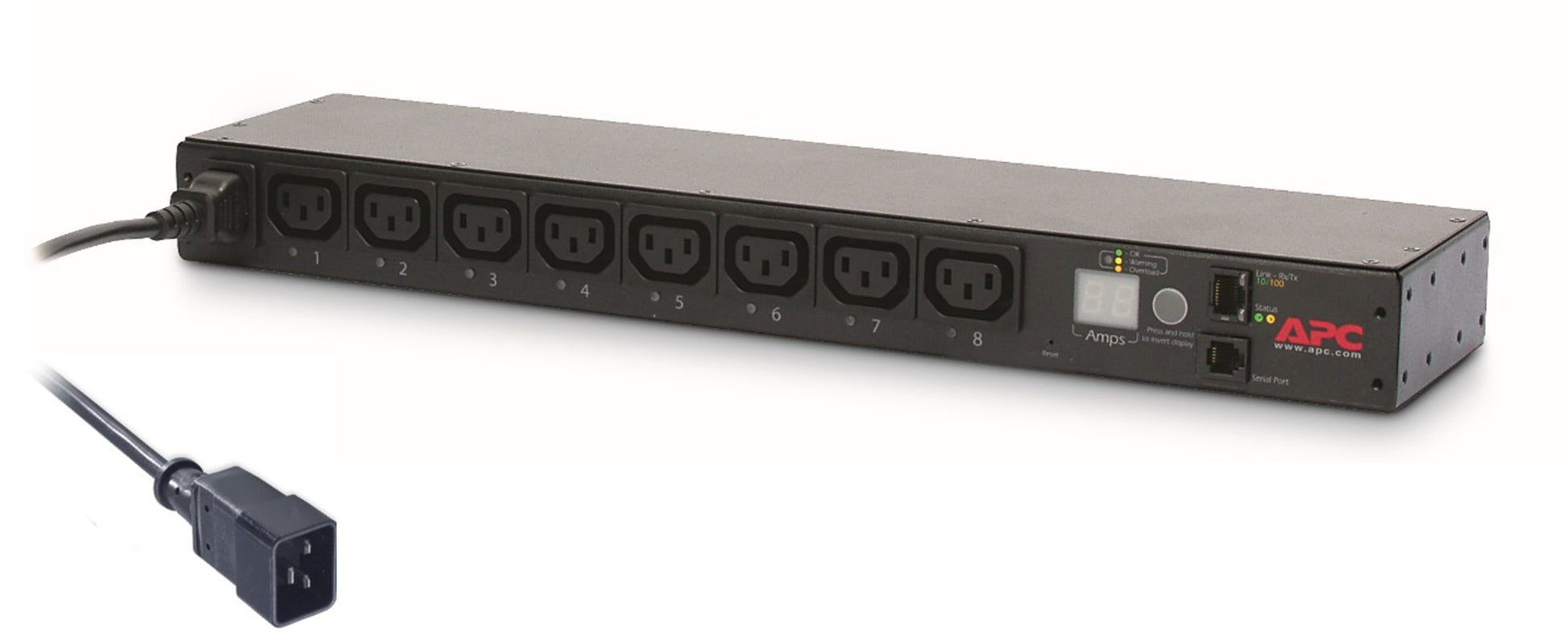

APC AP7921B Power Distribution Unit (PDU) 8 AC outlet(s) 0U/1U Black
APC AP7921B Power Distribution Unit (PDU) 8 AC outlet(s) 0U/1U Black
Part no.AP7921B
Regular price
£712.50ex VAT£855.00 inc VAT
Regular price
£0.00
Sale price
£712.50ex VAT£855.00 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
Out of stock: ask us for an alternative
Overview
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Specifications
Design
| PDU types | Metered, Switched |
|---|---|
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| AC outlets quantity | 8 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Input connection type | IEC-320 C20 |
Features
| Cable length | 2.5 m |
|---|
Management features
| Monitoring | Current, Power, Voltage |
|---|---|
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
Power
| Nominal input voltage | 200-230 V |
|---|---|
| Maximum current | 16 A |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208-230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 1 - 15000 m |
Weight & dimensions
| Width | 445 mm |
|---|---|
| Depth | 108 mm |
| Height | 44 mm |
| Weight | 2.27 kg |
In the box
- Packaging content: Installation Guide, Rack Mounting Brackets, User Manual
