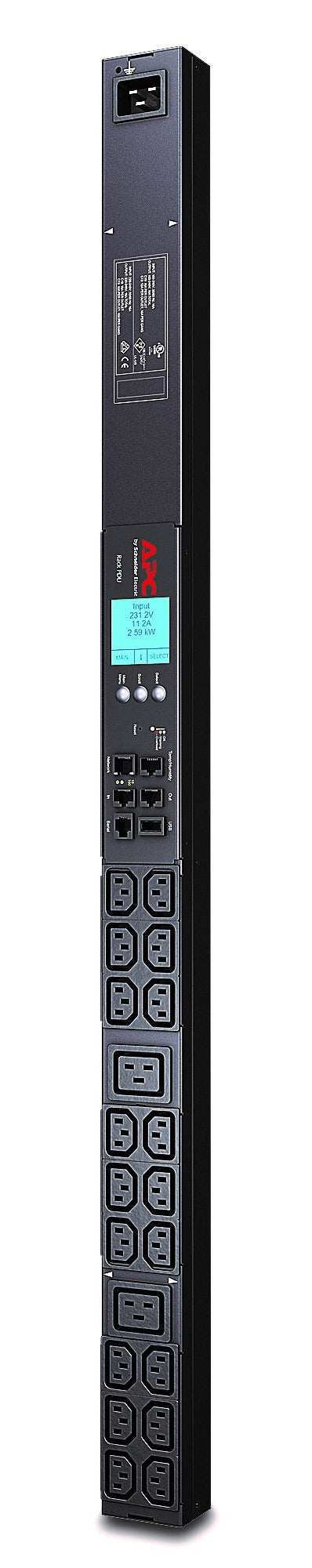

APC AP8858 Power Distribution Unit (PDU) 20 AC outlet(s) 0U Black

APC AP8858 Power Distribution Unit (PDU) 20 AC outlet(s) 0U Black

Part no.AP8858

Regular price £604.17ex VAT£725.00 inc VAT
Regular price £0.00 Sale price £604.17ex VAT£725.00 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design
PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces
AC outlets quantity20 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC-320 C20
Output connections18x IEC 320 C13
2x IEC 320 C19
Management features
MonitoringCurrent, Power, Voltage
Power
Nominal input voltage230 V
AC input frequency50 - 60 Hz
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS, REACH
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width56 mm
Depth44 mm
Height902 mm
Weight2.93 kg
