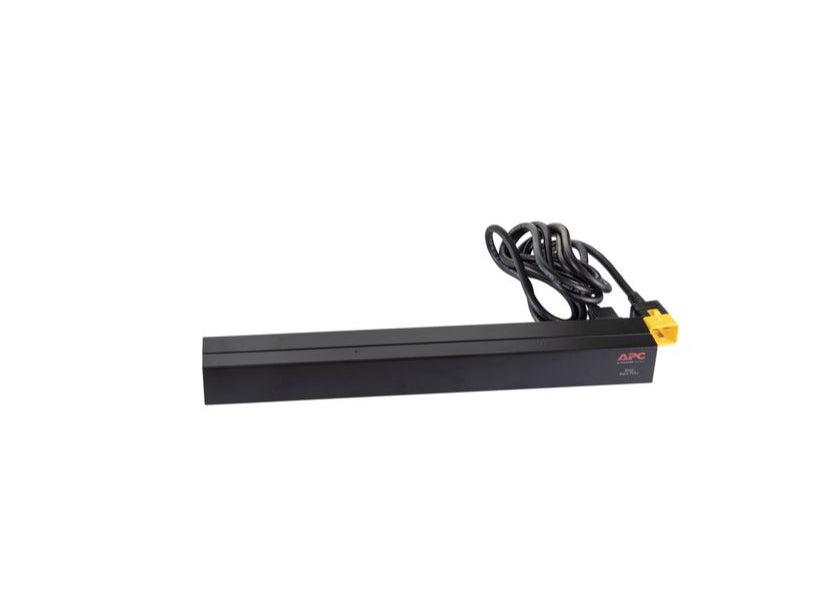

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A

Part no.AP9565

£205.83ex VAT£246.99 inc VAT
£0.00 £205.83ex VAT£246.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Specifications

Design
PDU typesBasic
Rack capacity0U/1U
TypeSingle-phase
MountingHorizontal/Vertical
Product colourBlack
Ports & interfaces
AC outlets quantity12 AC outlet(s)
AC outlet typesC13 coupler
Power plugC20 coupler
Input connection typeIEC-320 C20
Output connections(12) IEC 320 C13
Features
Cable length2.5 m
Power
Load capacity3680 VA
Maximum input current per phase16 A
Maximum power3680 W
Certificates
CertificationcUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Width447 mm
Depth57.2 mm
Height44.5 mm
Weight2.05 kg
