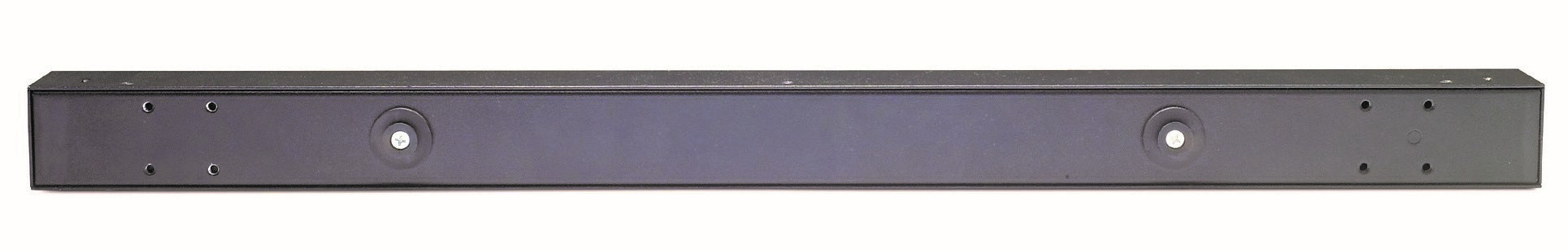

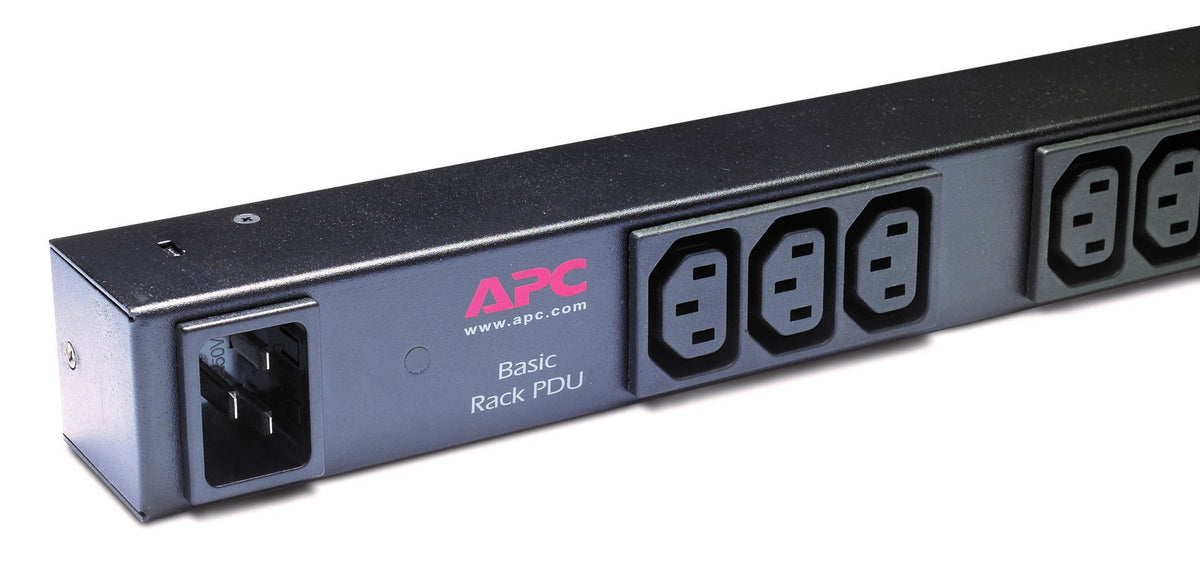

APC Basic Rack PDU AP9572 power distribution unit (PDU) 15 AC outlet(s) 0U Black

Design

• PDU types: Basic
• Rack capacity: 0U
• Mounting: Vertical
• Product colour: Black

Ports & interfaces

• AC outlets quantity: 15 AC outlet(s)
• AC outlet types: C13 coupler
• Power plug: C20 coupler
• Input connection type: IEC-320 C20
• Output connections: (15) IEC 320 C13

Features

• Cable length: 2.5 m

Power

• Nominal input voltage: 23 V
• Output voltage: 230 V
• Load capacity: 3680 VA
• Maximum input current per phase: 16 A
• Maximum total current draw per phase: 16 A
• Maximum power: 3680 W

Operational conditions

• Operating temperature (T-T): 0 - 45 °C
• Storage temperature (T-T): -25 - 65 °C
• Operating relative humidity (H-H): 5 - 95%
• Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

• Width: 44 mm
• Depth: 44 mm
• Height: 620 mm
• Weight: 2 kg
