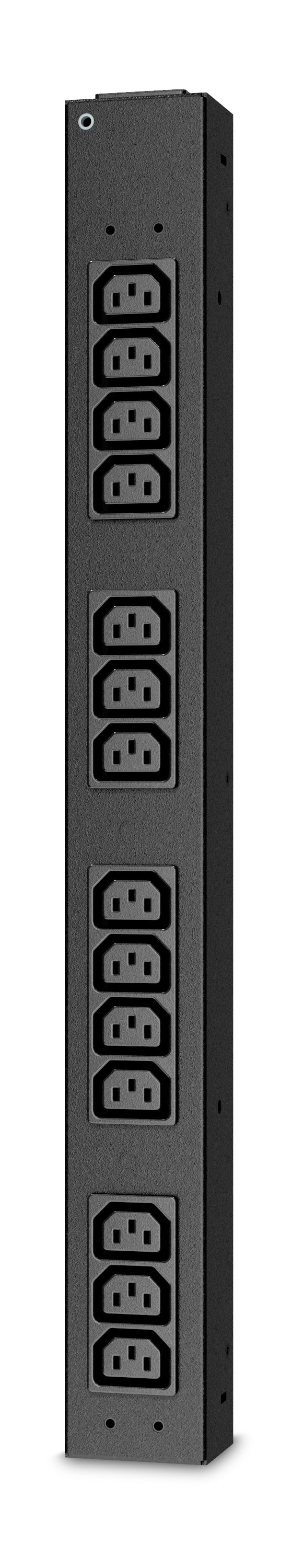

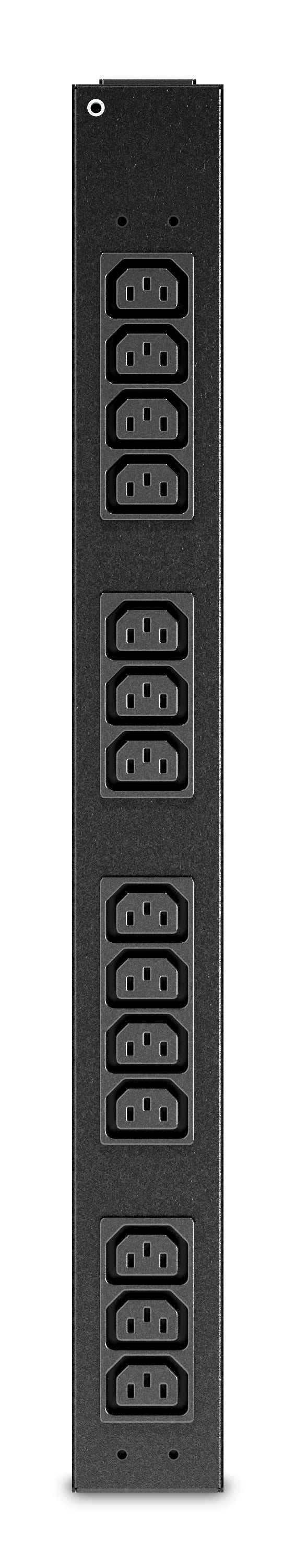

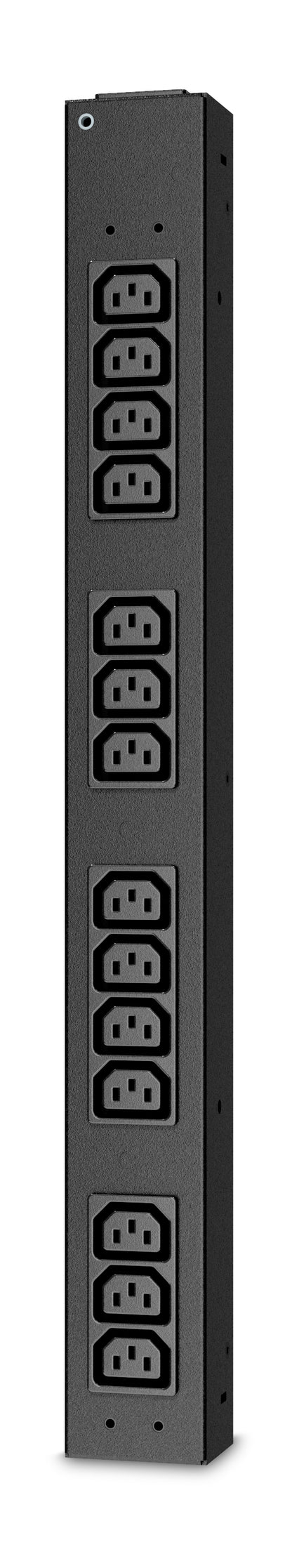

APC AP6003A Power Distribution Unit (PDU) 14 AC outlet(s) 0U/2U Black
APC AP6003A Power Distribution Unit (PDU) 14 AC outlet(s) 0U/2U Black
Part no.AP6003A
Regular price
£178.33ex VAT£213.99 inc VAT
Regular price
£0.00
Sale price
£178.33ex VAT£213.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
APC AP6003A. PDU types: Basic, Rack capacity: 0U/2U, Type: Single-phase. AC outlets quantity: 14 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 230 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: cUL, UL, REACH. Width: 56 mm, Depth: 47 mm, Height: 523 mm
Specifications
Design
| PDU types | Basic |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U/2U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| AC outlets quantity | 14 AC outlet(s) |
|---|---|
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C20 |
Power
| Nominal input voltage | 230 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100-240 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL, UL, REACH |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Width | 56 mm |
|---|---|
| Depth | 47 mm |
| Height | 523 mm |
| Weight | 1.88 kg |
Product details
| Part number | AP6003A |
|---|---|
| Brand | APC |
| Supplier description | RACK PDU BASIC HALF HEIGHT 100 -240V/20A 220-240V/16A (14) C13 |
| EAN | 0731304327769 |
