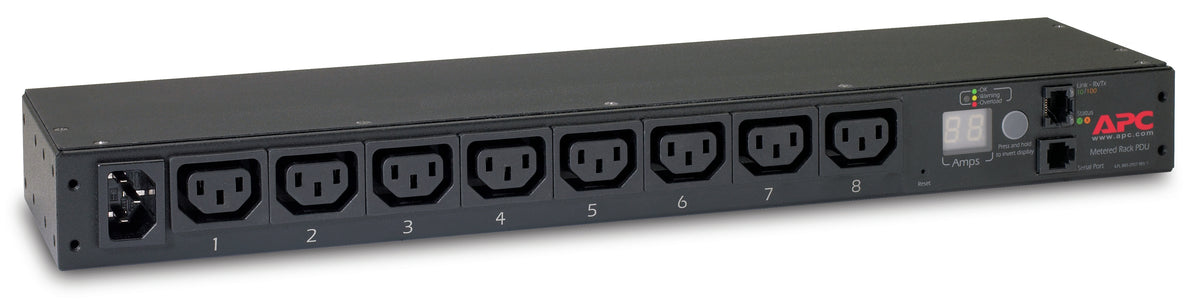

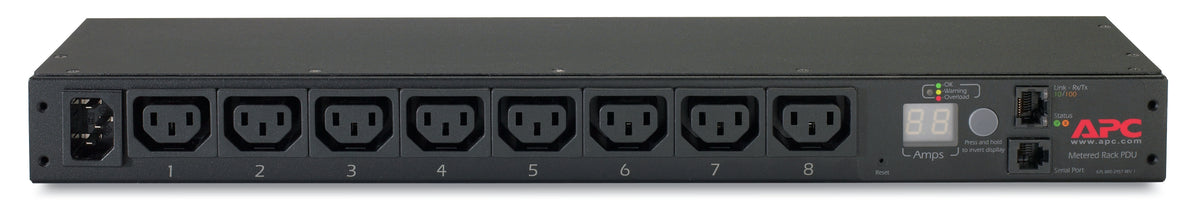

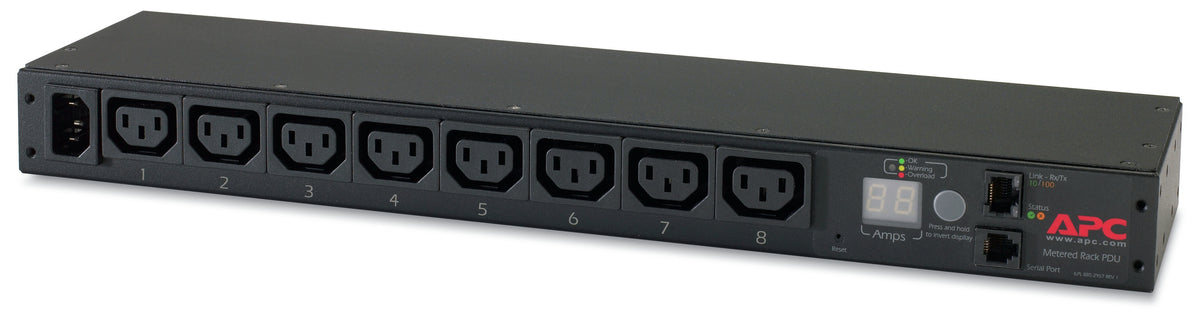

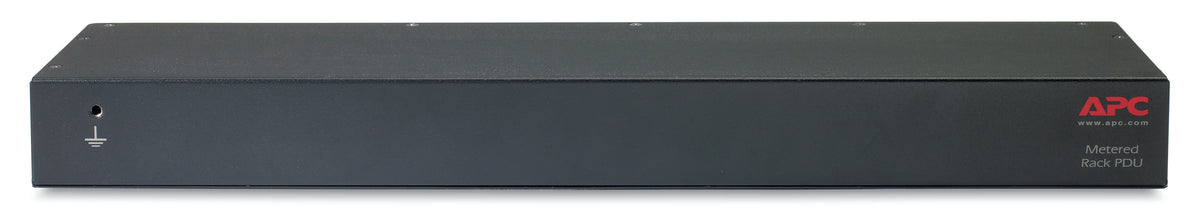

APC AP7820B Power Distribution Unit (PDU) 8 AC outlet(s) 0U/1U Black
APC AP7820B Power Distribution Unit (PDU) 8 AC outlet(s) 0U/1U Black
Part no.AP7820B
Regular price
£475.00ex VAT£570.00 inc VAT
Regular price
£0.00
Sale price
£475.00ex VAT£570.00 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
Marketing Features
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Specifications
Design
| PDU types | Metered |
|---|---|
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| AC outlets quantity | 8 AC outlet(s) |
|---|---|
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
Features
| LED indicators | Yes |
|---|---|
| Cable length | 1.98 m |
Management features
| Monitoring | Current, Power, Voltage |
|---|
Power
| Nominal input voltage | 208-230 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 15 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Width | 444 mm |
|---|---|
| Depth | 102 mm |
| Height | 44 mm |
| Weight | 1.73 kg |
Product details
| Part number | AP7820B |
|---|---|
| Brand | APC |
| Supplier description | RACK PDU METERED 1U 12A/208V 10A/230V (8) C13S |
| EAN | 0731304331506 |
