APC AP7822B Power Distribution Unit (PDU) 16 AC outlet(s) 2U Black
APC AP7822B Power Distribution Unit (PDU) 16 AC outlet(s) 2U Black
Part no.AP7822B
Regular price
£816.67ex VAT£980.00 inc VAT
Regular price
£0.00
Sale price
£816.67ex VAT£980.00 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview

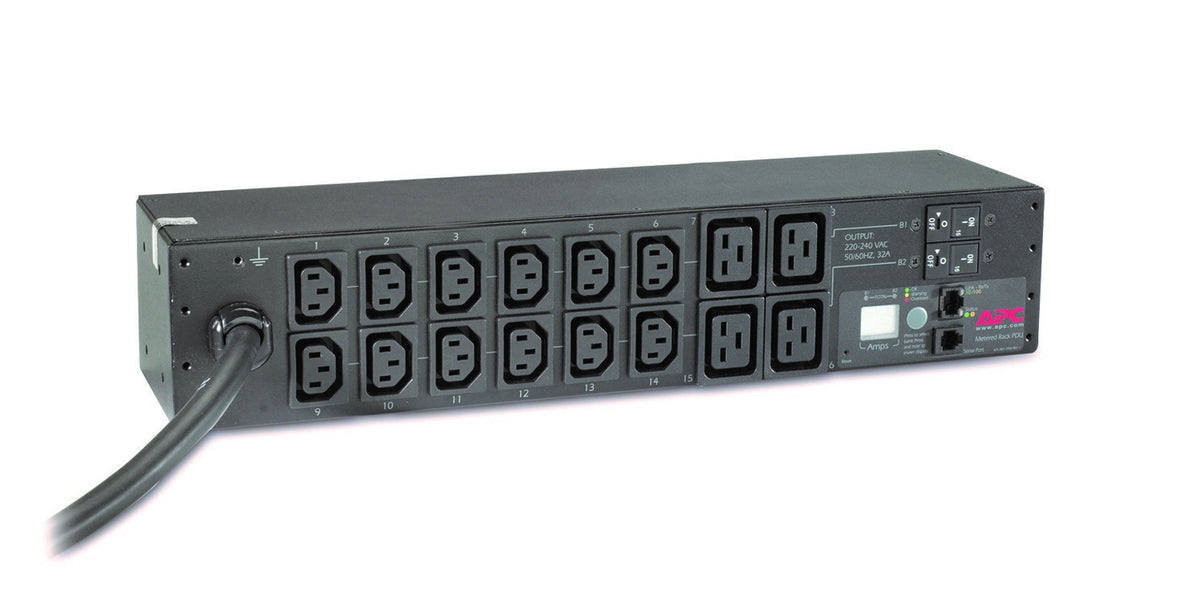

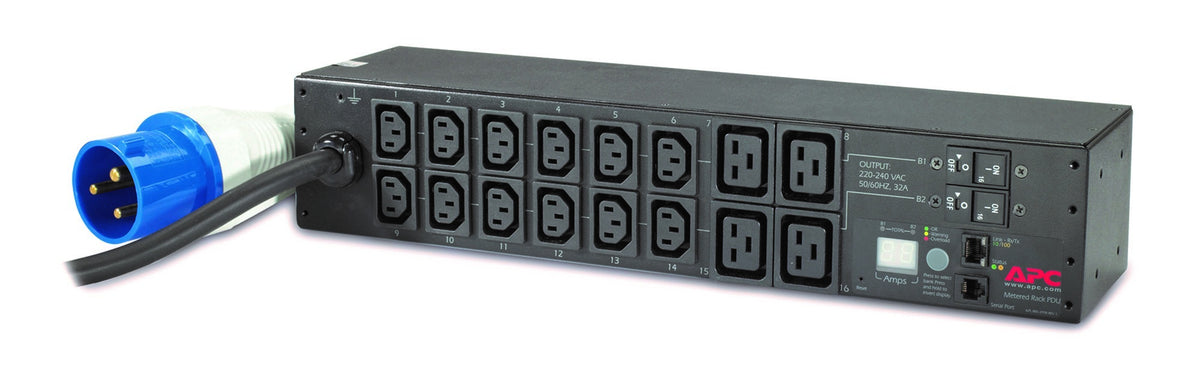

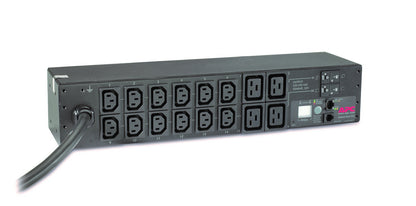

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
Design
| PDU types | Metered |
|---|---|
| Type | Single-phase |
| Rack capacity | 2U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| AC outlets quantity | 16 AC outlet(s) |
|---|---|
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 32A 2P+E |
| Output connections | 12 x C13 4 x C19 |
Features
| LED indicators | Yes |
|---|---|
| Cable length | 3.66 m |
Management features
| Monitoring | Current, Power, Voltage |
|---|
Power
| Nominal input voltage | 208-230 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Power protection features | Overload |
| Maximum power | 7680 W |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 444 mm |
|---|---|
| Depth | 112 mm |
| Height | 88 mm |
| Weight | 3.36 kg |
Product details
| Part number | AP7822B |
|---|---|
| Brand | APC |
| Supplier description | RACK PDU METERED 2U 32A 230V KBEU PSU 16GB 256GB IN |
| EAN | 0731304331520 |
