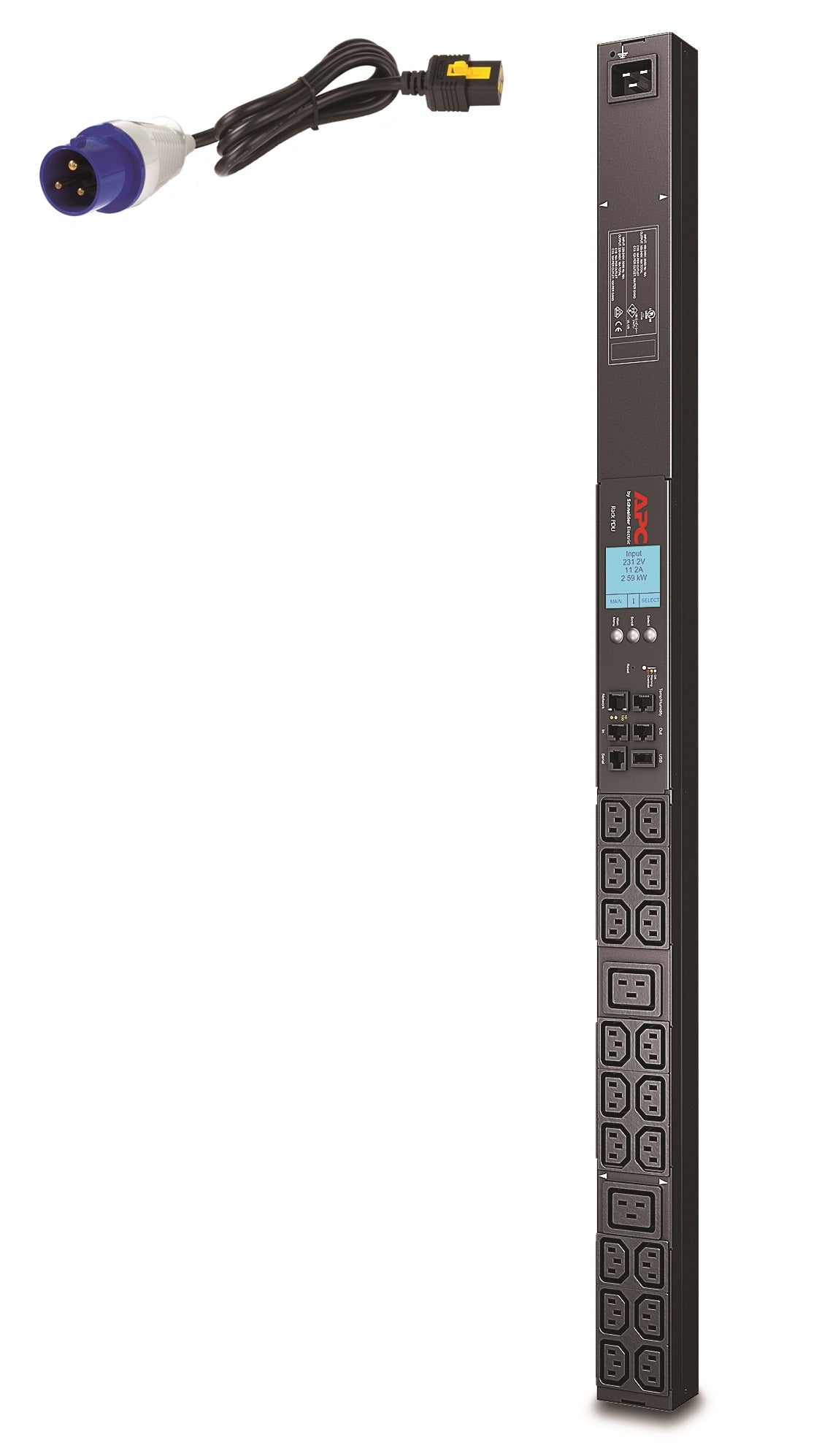

APC AP8858EU3 Power Distribution Unit (PDU) 20 AC outlet(s) 0U

APC AP8858EU3 Power Distribution Unit (PDU) 20 AC outlet(s) 0U

Part no.AP8858EU3

Regular price £641.67ex VAT£770.00 inc VAT
Regular price £0.00 Sale price £641.67ex VAT£770.00 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

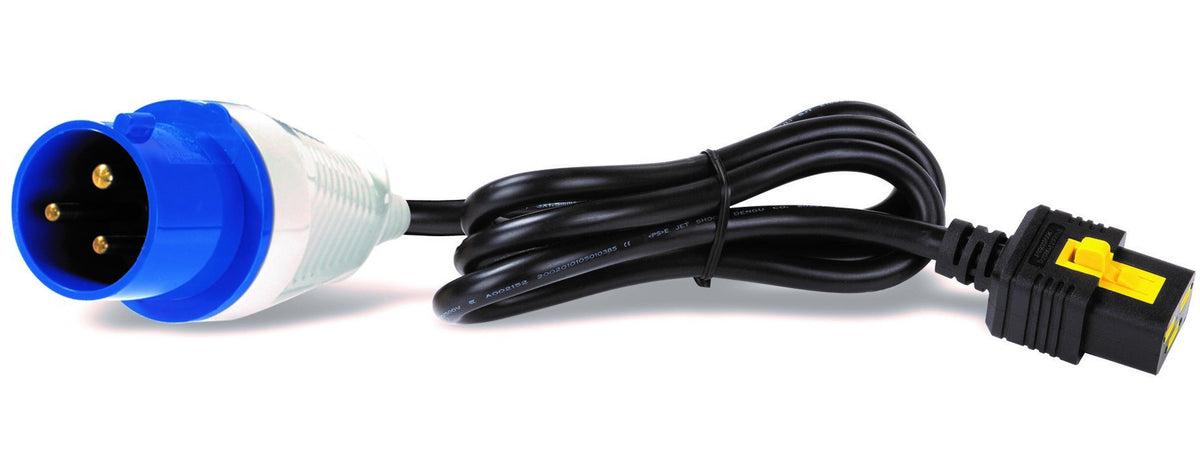

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design
PDU typesMetered
Rack capacity0U
MountingVertical
Ports & interfaces
AC outlets quantity20 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 16A 2P+E
Output connections18x IEC 320 C13 2x IEC 320 C19
Features
Cable length3 m
Management features
MonitoringCurrent, Power, Voltage
Power
AC input frequency50 - 60 Hz
Nominal output voltage230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W
Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width56 mm
Depth44 mm
Height902 mm
Weight2.93 kg
Product details
Part numberAP8858EU3
BrandAPC
Supplier descriptionRACK PDU 2G METERED ZEROU 16A 230V 18XC13 + 2XC19 IEC309
EAN0731304277033
