Overview
APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. AC outlet types: Hardwire. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
Ports & interfaces
| AC outlet types | Hardwire |
|---|---|
| SmartSlot | Yes |
| SmartConnect port | No |

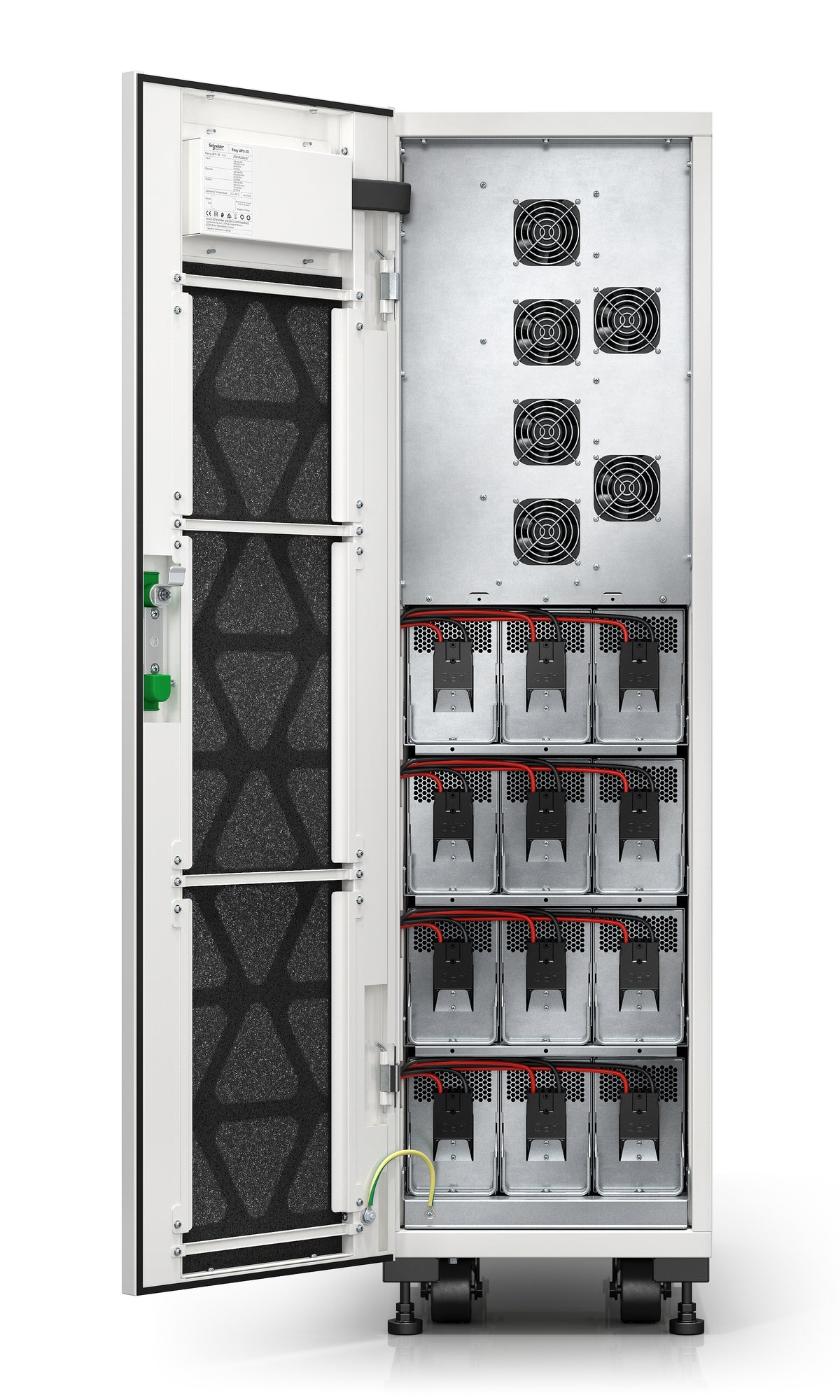

Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 220 V |
| Number of batteries supported | 3 |
Design
| Form factor | Tower |
|---|---|
| Product colour | White |
| Display type | LED |
| International Protection (IP) code | IP20 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
Weight & dimensions
| Width | 380 mm |
|---|---|
| Depth | 928 mm |
| Height | 1400 mm |
| Weight | 122 kg |
Other features
| Output voltage | 400 V |
|---|
Product details
| Part number | E3SUPS20KHB |
|---|---|
| Brand | APC |
| Supplier description | EASY UPS3S 20KVA 400V 3:3 UPS HIGH TOWER IN |
| EAN | 0731304340782 |
In the box
- Management card included: No
- Quick installation guide: Yes
