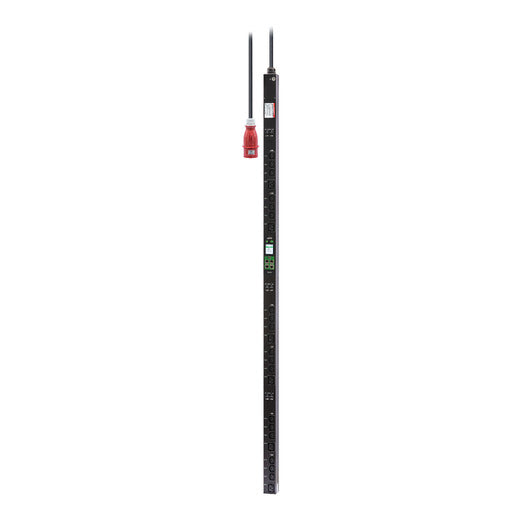

APC Easy Rack PDU, Switched Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A

APC Easy Rack PDU, Switched Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A

Part no.EPDU2232SMBO

Regular price £1,541.67ex VAT£1,850.00 inc VAT
Regular price £0.00 Sale price £1,541.67ex VAT£1,850.00 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

Easy rack PDU Metered-by-Outlet with Switching EPDU2232SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2232SMBO is designed for three phase applications of upto 22kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.

Specifications

Design
PDU typesMetered, Switched
TypeThree-phase
Rack capacity0U
MountingVertical
Housing materialMetal
Product colourBlack
DisplayLCD
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports1
USB ports quantity1
Features
Cable length3 m
Power
Nominal input voltage400 V
AC input frequency50/60 Hz
Maximum current32 A
Output voltage200-240 V
Load capacity22000 VA
Power protection featuresOverload
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 15000 m
Weight & dimensions
Width55 mm
Depth56 mm
Height1800 mm
Weight8.68 kg
Product details
Part numberEPDU2232SMBO
BrandAPC
Supplier descriptionEASY PDU 2G METERED-BY-OUTLET W/ SWITCHING ZEROU 22KW 230V(18)
EAN0731304733478
