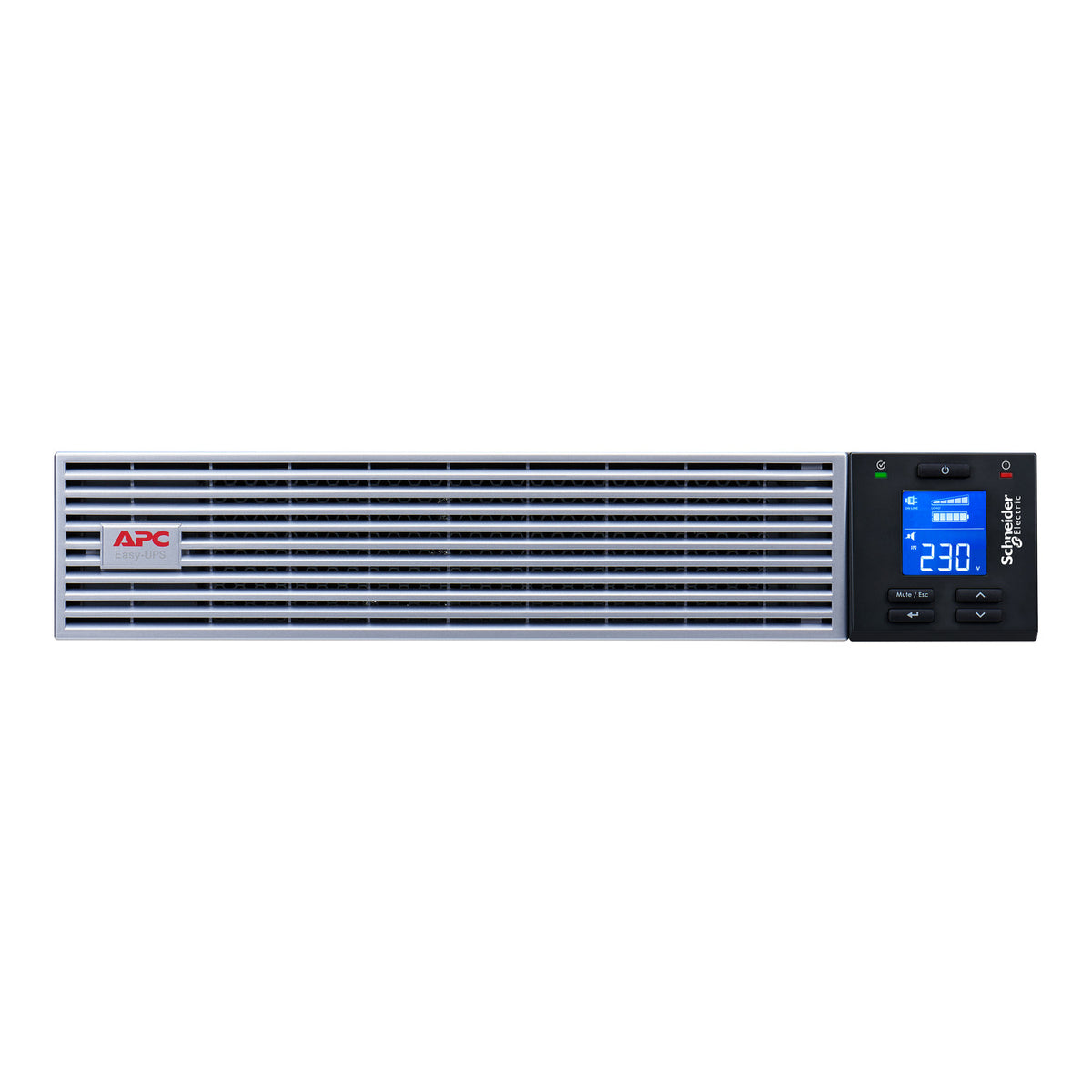

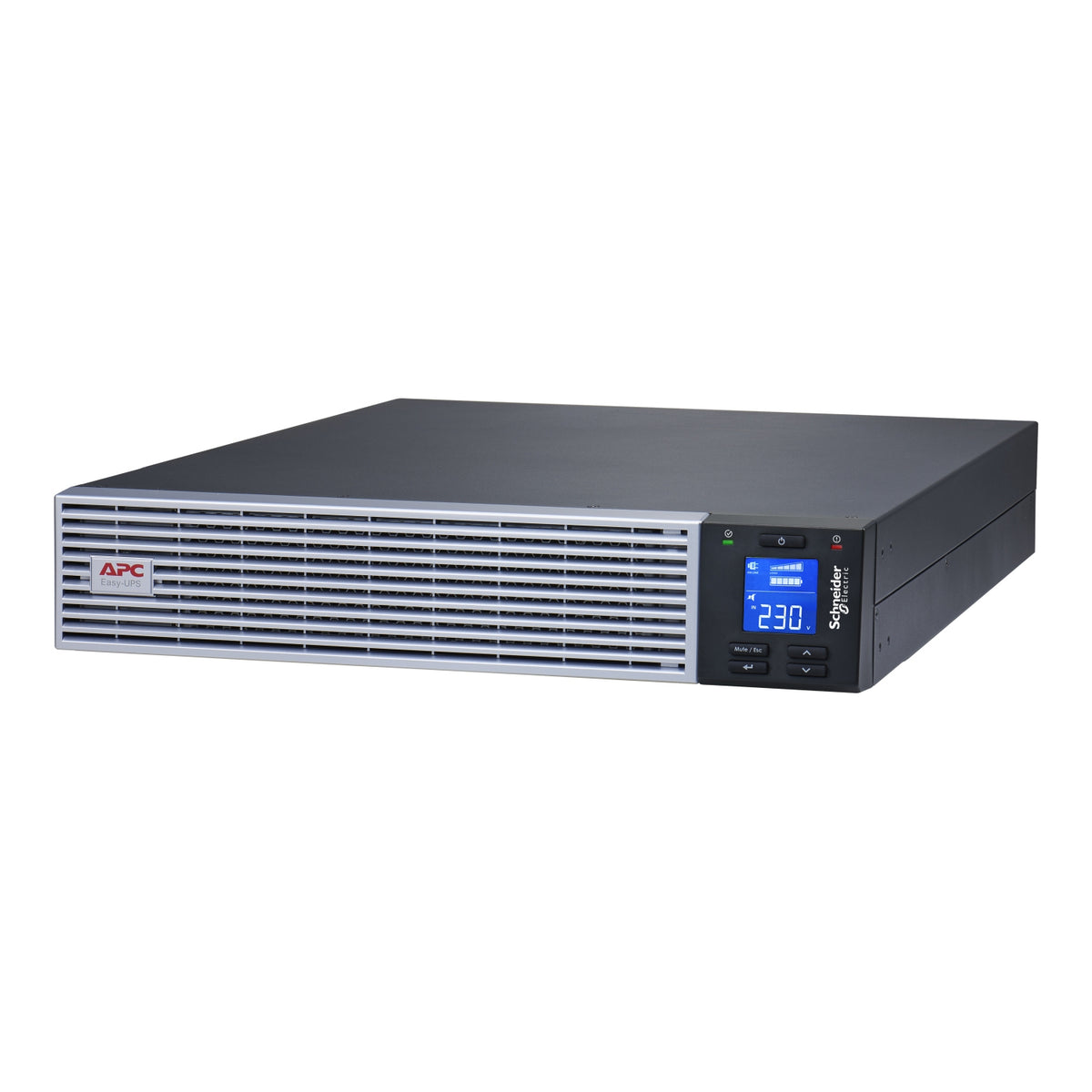

APC Easy UPS SRVL3KRIRK 3000VA/2700W Online UPS, 6 Outlets, Rackmount

APC Easy UPS SRVL3KRIRK 3000VA/2700W Online UPS, 6 Outlets, Rackmount

Part no.SRVL3KRIRK

Regular price £1,791.67ex VAT£2,150.00 inc VAT
Regular price £0.00 Sale price £1,791.67ex VAT£2,150.00 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line lithium-ion 2U UPS provides pure sine wave power to support critical electronics during power disruptions. The SRVL comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It comes with a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Surveillance, Co-working space, Healthcare IT, ATMs, Micro Data centers, and Server rooms.

Specifications

Features
UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40 - 70 Hz
Output operation voltage (max)230 V
Output frequency50/60 Hz
Surge energy rating945 J
Heat dissipation1024 BTU/h
Number of input phases1
Number of output phases1
Single-phase input voltage supported230 V
Efficiency90%
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Noise level50 dB
Audible alarm(s)Yes
Audible alarm modesLow battery alarm, Overload alarm
Power source typeAC
Detachable power cordYes

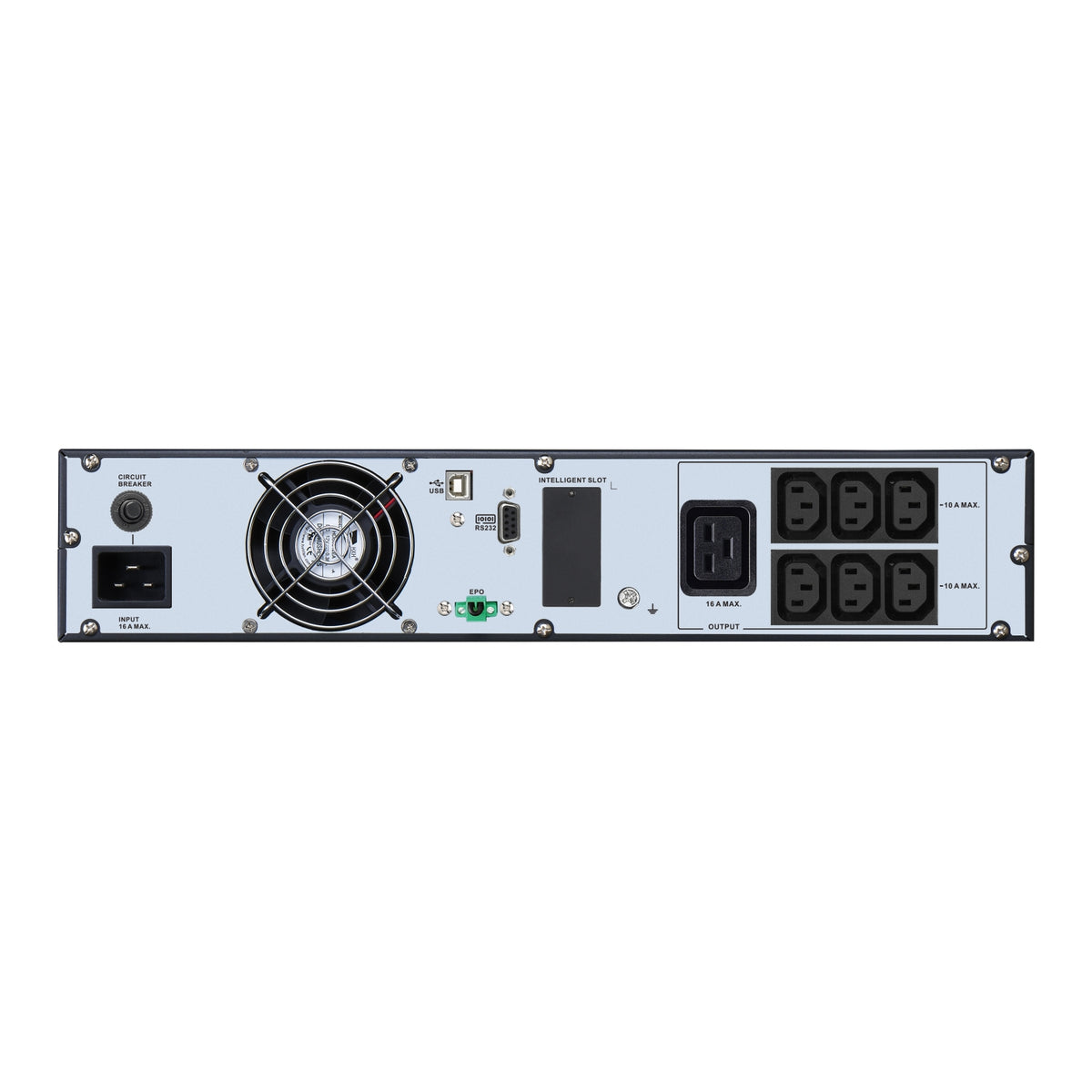

Ports & interfaces
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity6 AC outlet(s)
USB portYes
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports1
Emergency Power Off (EPO) connectorYes
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery voltage48 V
Typical backup time at full load9 min
Battery life (max)10 year(s)
Battery recharge time1.5 h
Replacement battery cartridgeRBCV183-LI
Design

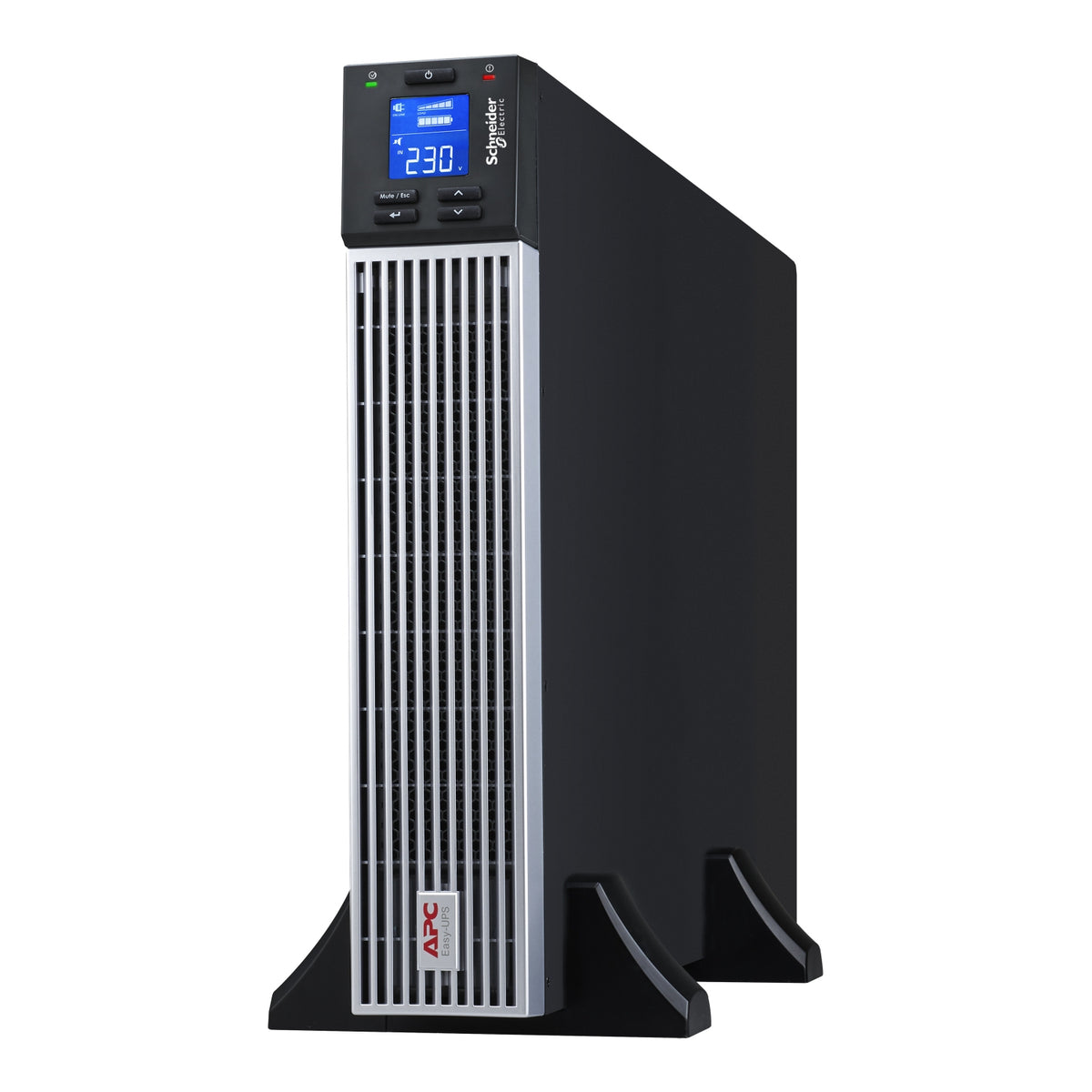

Form factorRackmount/Tower
Rack capacity2U
Cooling typeActive
Built-in fanYes
Product colourBlack, Silver
Control typeButtons
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20
Operational conditions
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
CertificationCB; CE; UKCA; UN 38.3; IEC 62619
Technical details
Sustainable packagingNo
Take-back systemNo
Packaging without single use plasticNo

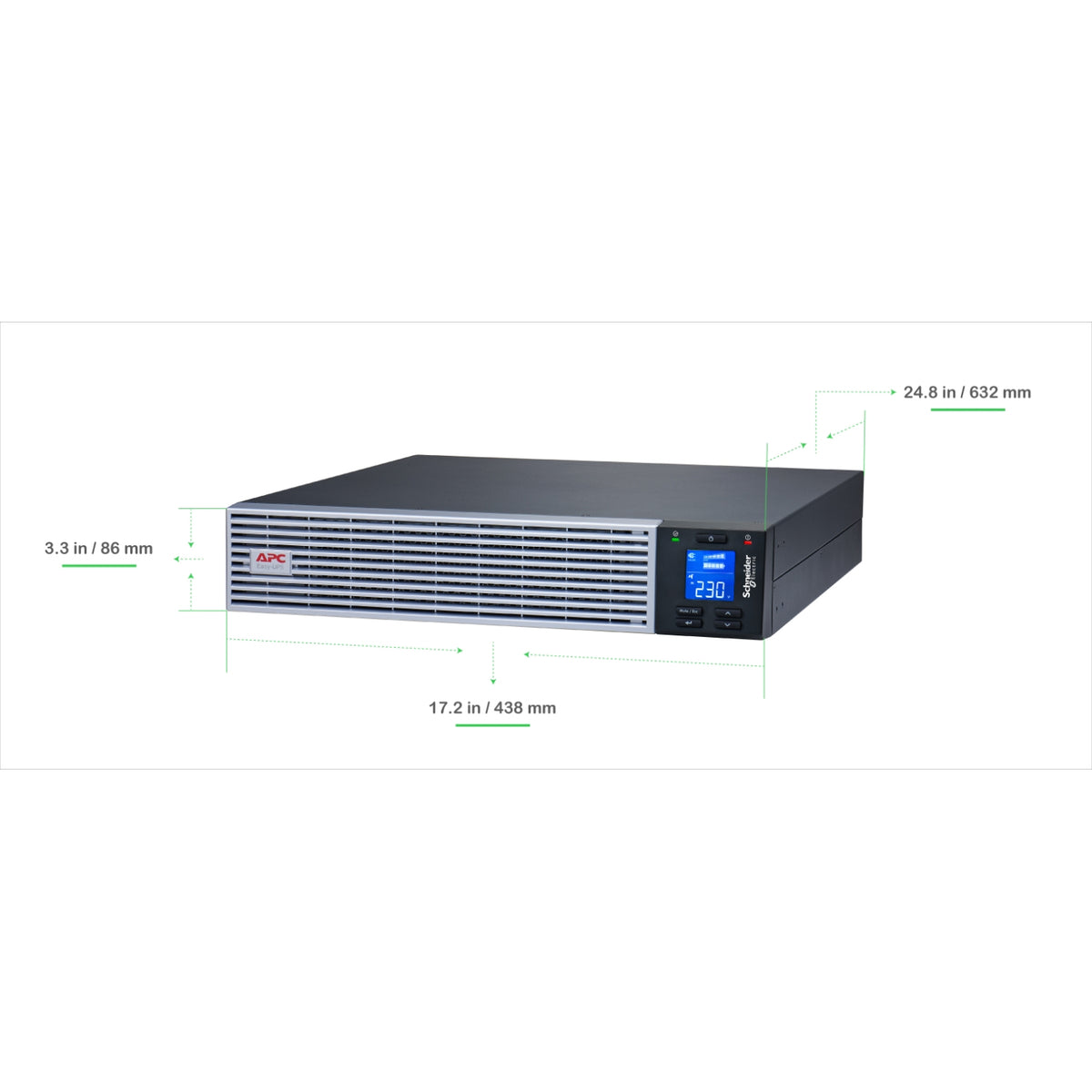

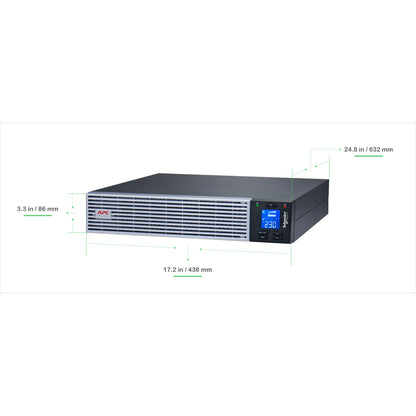

Weight & dimensions
Width438 mm
Depth632 mm
Height86 mm
Weight21.2 kg
Other features
Input connection typeIEC 60320 C20
Output connection type6 IEC 60320C13; 1 IEC 60320C19
Output voltage230 V
Mountinghorizontal and vertical
Product details
Part numberSRVL3KRIRK
BrandAPC
Supplier descriptionAPC EASY UPS ON-LINE LI-ION SRVL RT 3000VA 230V W/ RAIL KIT
EAN0731304621904

In the box

  • Rack mount kit: Yes
  • Cables included: Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable
