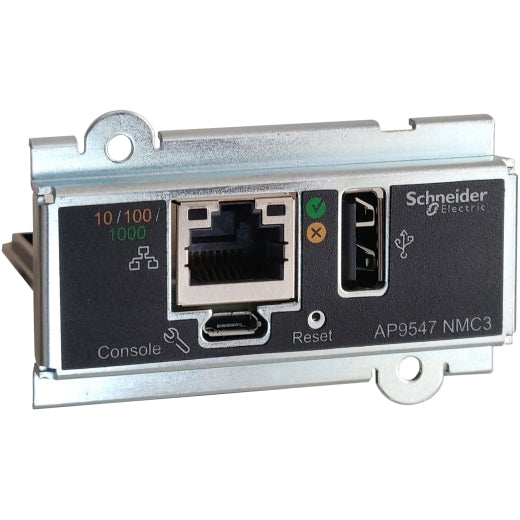

APC Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase
APC Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase
Part no.AP9547
Regular price
£268.33ex VAT£321.99 inc VAT
Regular price
£0.00
Sale price
£268.33ex VAT£321.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.
Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Security algorithms | HTTPS, SNMP, SNMPv3, SSH |
| Web-based management | Yes |
| MIB support | PowerNet MIB |
Design
| Component for | Uninterruptible power supply (UPS) |
|---|---|
| Product colour | Black, Metallic |
| Internal | Yes |
| Reset button | Yes |
| Certification | AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A |
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Width | 52 mm |
|---|---|
| Depth | 80 mm |
| Height | 44 mm |
| Weight | 50 g |
Technical details
| Total carbon footprint (kg of CO2e) | 69.41 |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ICES, RoHS, VCCI |
Other features
| Management protocols | BACnet |
|---|---|
| Interface type | RJ-45 |
| Product type | Network management card |
| Compatibility | Easy UPS 3 Series |
Product details
| Part number | AP9547 |
|---|---|
| Brand | APC |
| Supplier description | NETWORK MANAGEMENT CARD FOR EASY UPS 3-PHASE |
| EAN | 0731304422495 |
In the box
- Cables included: USB
- Manual: Yes
