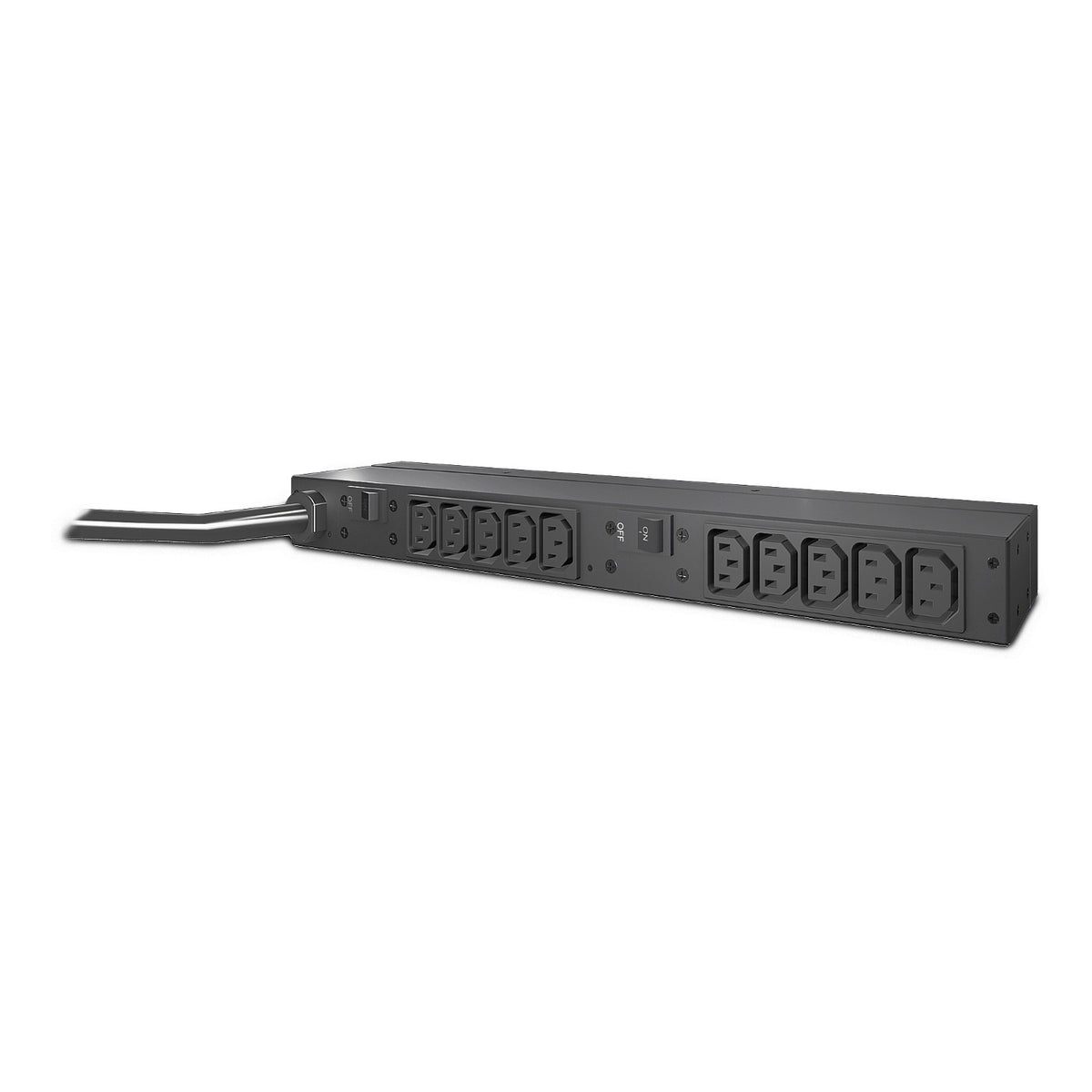

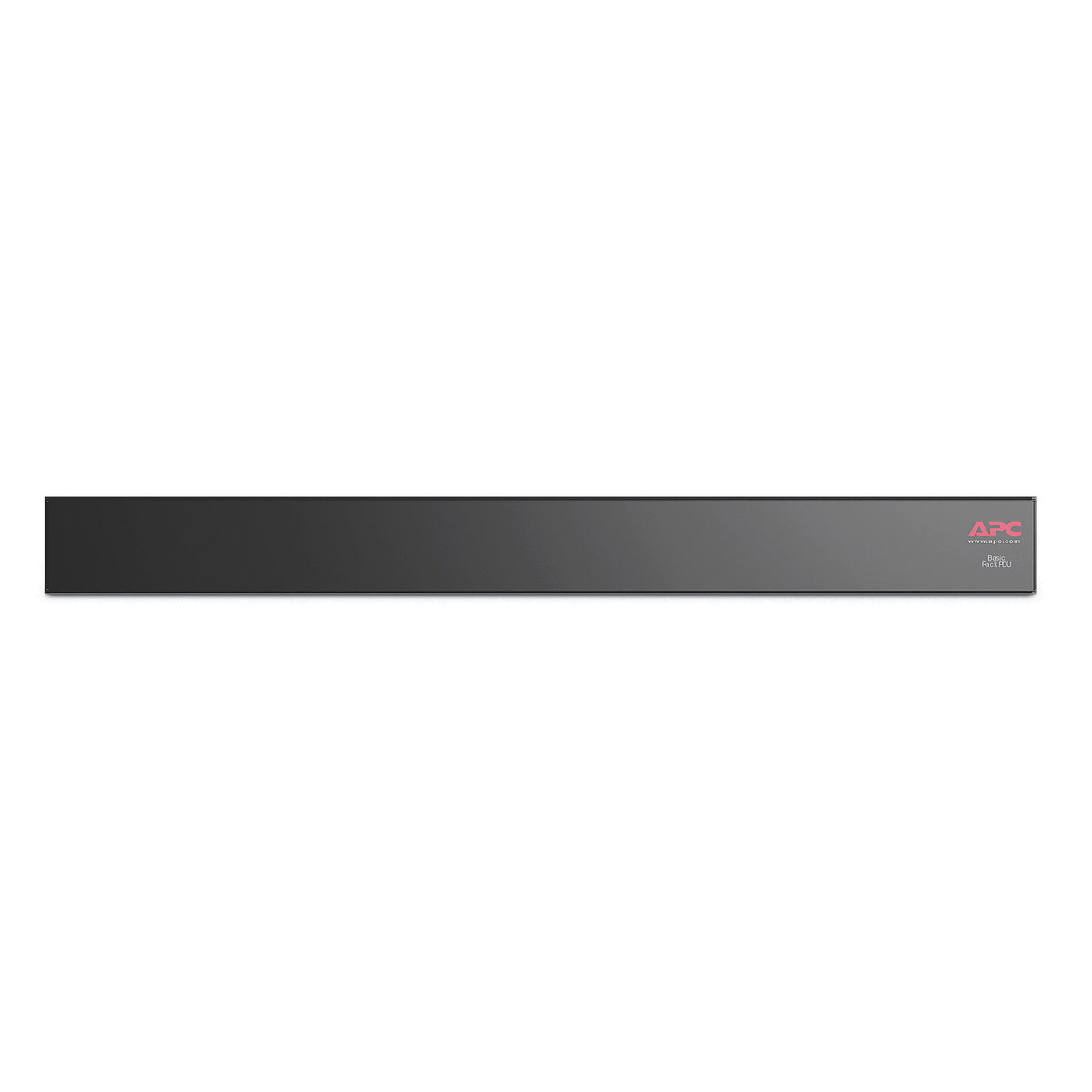

APC Rack PDU, Basic, 1U, 30A, 208V, (10) C13
APC Rack PDU, Basic, 1U, 30A, 208V, (10) C13
Part no.AP9571A
Regular price
£251.66ex VAT£301.99 inc VAT
Regular price
£0.00
Sale price
£251.66ex VAT£301.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
Design
| Rack capacity | 1U |
|---|---|
| Product colour | Grey |
Ports & interfaces
| Input connection type | NEMA L6-30P |
|---|
Features
| Cable length | 3.65 m |
|---|
Power
| Nominal input voltage | 200; 208; 230 V |
|---|---|
| AC input frequency | 60 Hz |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Maximum total current draw per phase | 24 A |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; PSE; UL listed |
Operational conditions
| Operating temperature (T-T) | -15 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 445 mm |
|---|---|
| Depth | 77 mm |
| Height | 44 mm |
| Weight | 2.55 kg |
Technical details
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
Product details
| Part number | AP9571A |
|---|---|
| Brand | APC |
| Supplier description | RACK PDU BASIC 1U 30A 208V (10) C13 |
| EAN | 0731304272755 |
