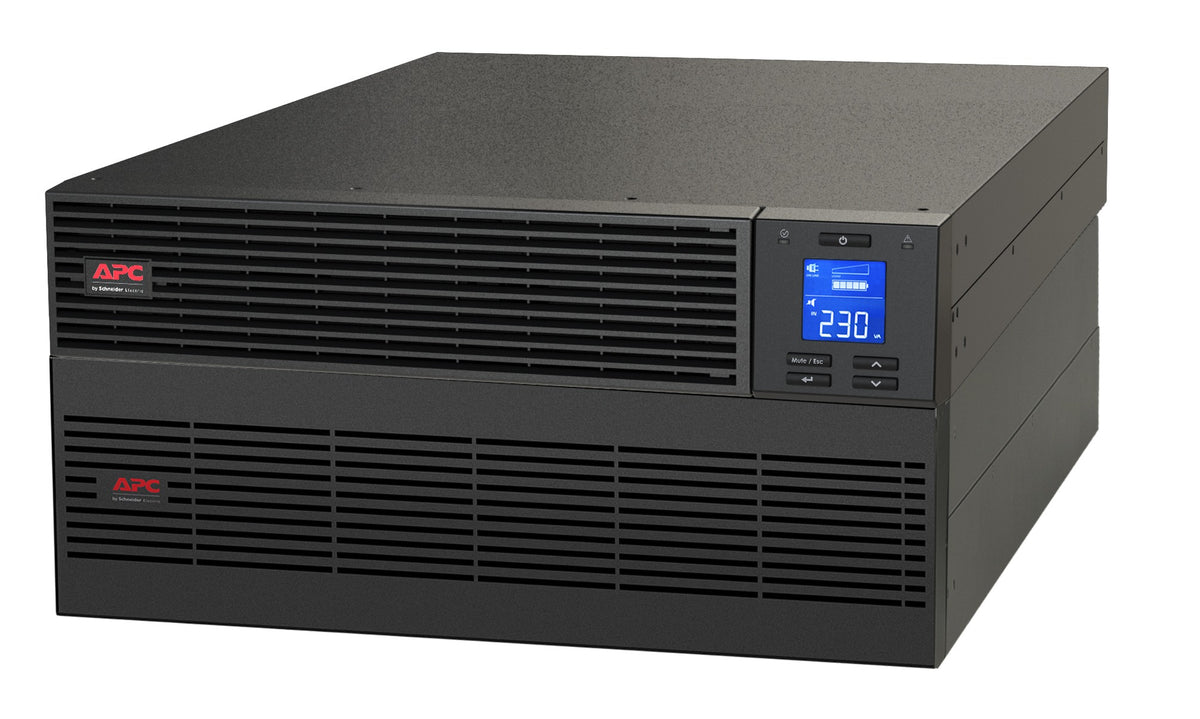

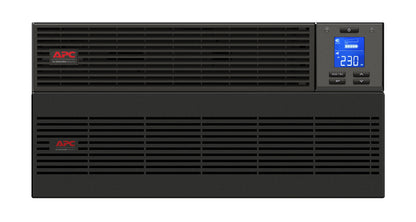

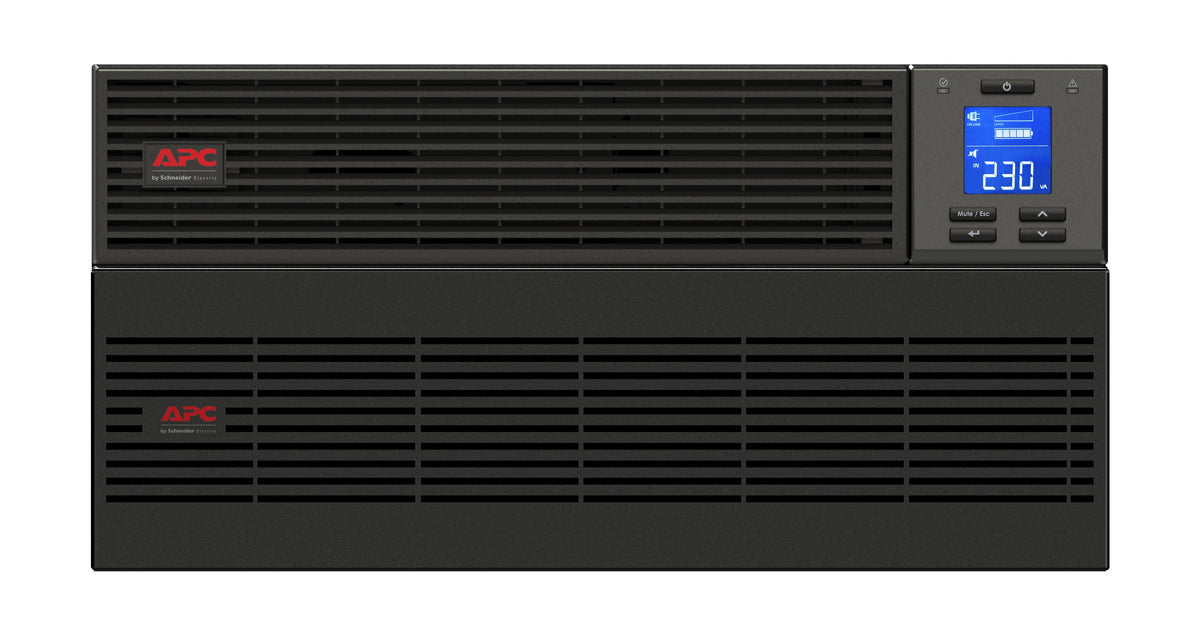

APC SRV10KRILRK 10000VA/10000W Online UPS, Rackmount
APC SRV10KRILRK 10000VA/10000W Online UPS, Rackmount
Part no.SRV10KRILRK
Regular price
£3,750.00ex VAT£4,500.00 inc VAT
Regular price
£0.00
Sale price
£3,750.00ex VAT£4,500.00 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, USB cable, User Manual.
Includes: CD with software, USB cable, User Manual.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Yes |

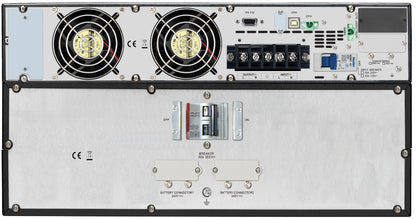

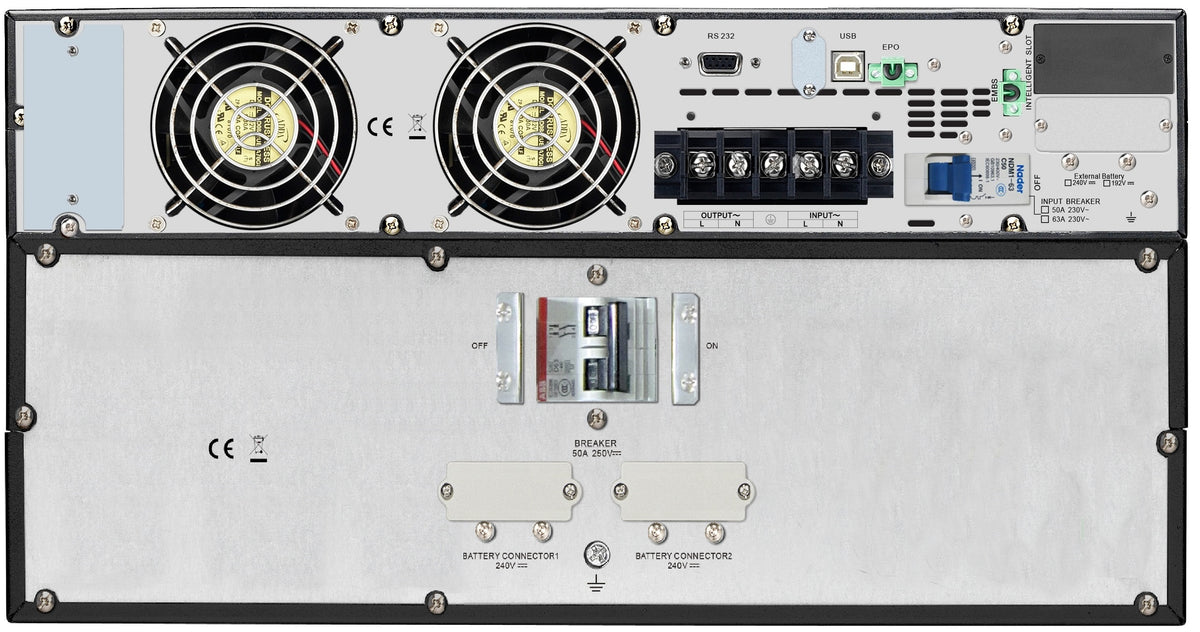

Ports & interfaces
| AC outlet types | Hard Wire 3-wire (1PH + N + G) |
|---|---|
| USB port | Yes |
| Serial interface | Yes |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
Battery
| Hot-swap battery | Yes |
|---|---|
| Automatic battery test | Yes |
Design
| Form factor | Rackmount |
|---|---|
| Rack capacity | 5U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763 m |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 615 mm |
| Height | 220 mm |
| Weight | 78 kg |
Other features
| Nominal output voltage | 230 V |
|---|---|
| Nominal input voltage | 230 V |
Product details
| Part number | SRV10KRILRK |
|---|---|
| Brand | APC |
| Supplier description | EASY UPS SRV RM 10000VA 230V WITH EXT BATT PACK WITH RAILKIT |
| EAN | 0731304346180 |
In the box
- Cables included: USB cable
- Management card included: No
- Manual: Yes
