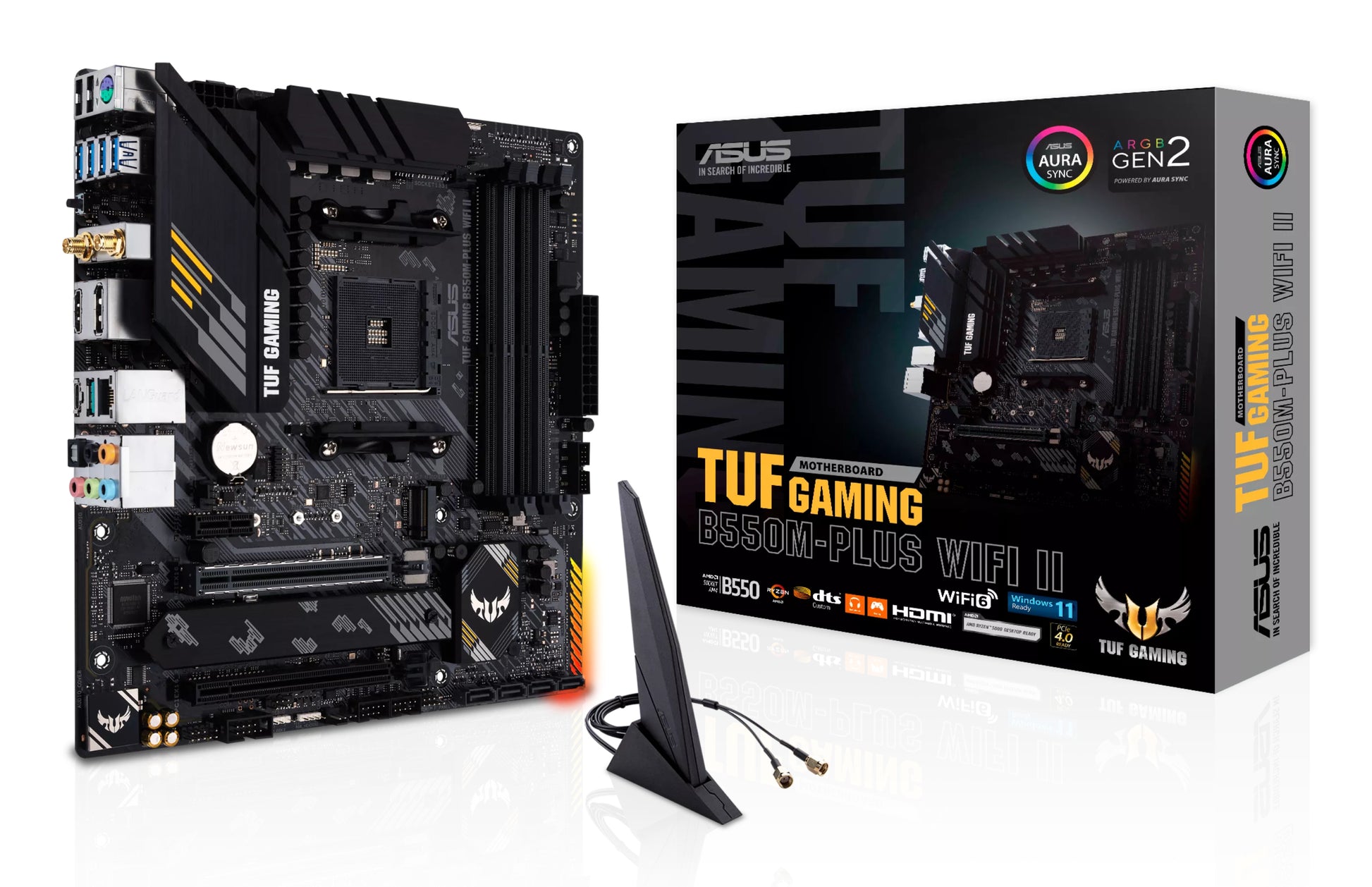

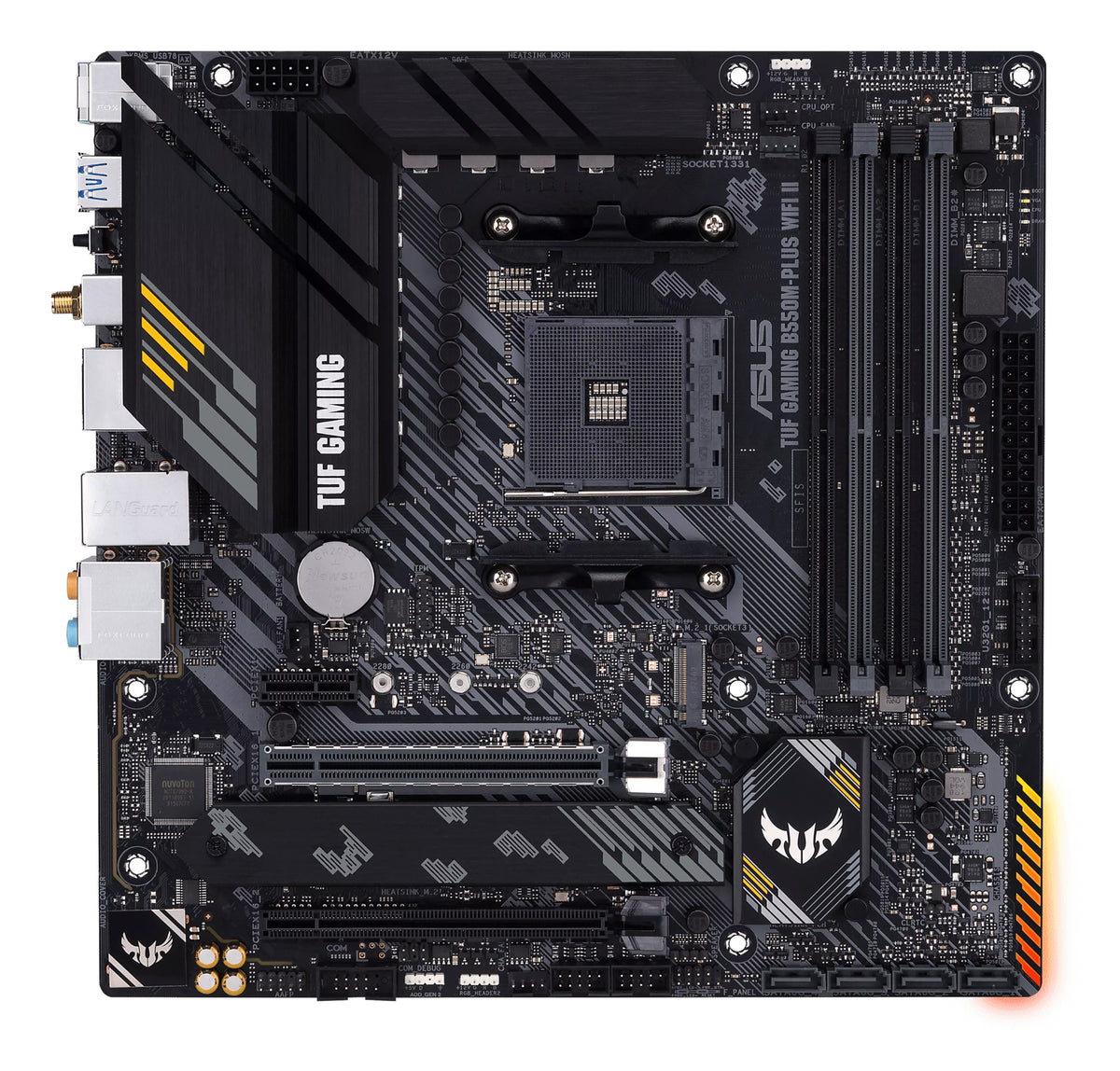

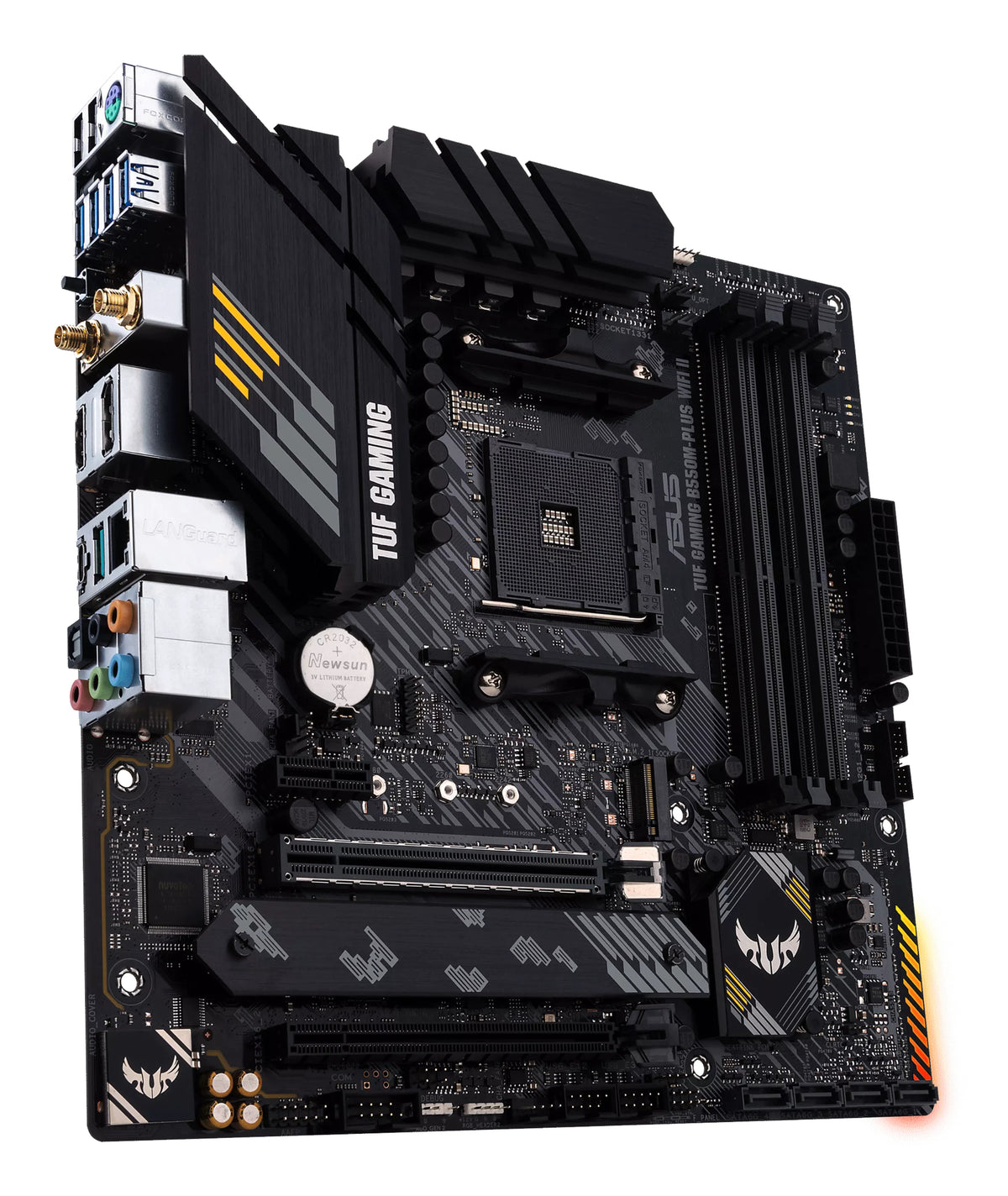

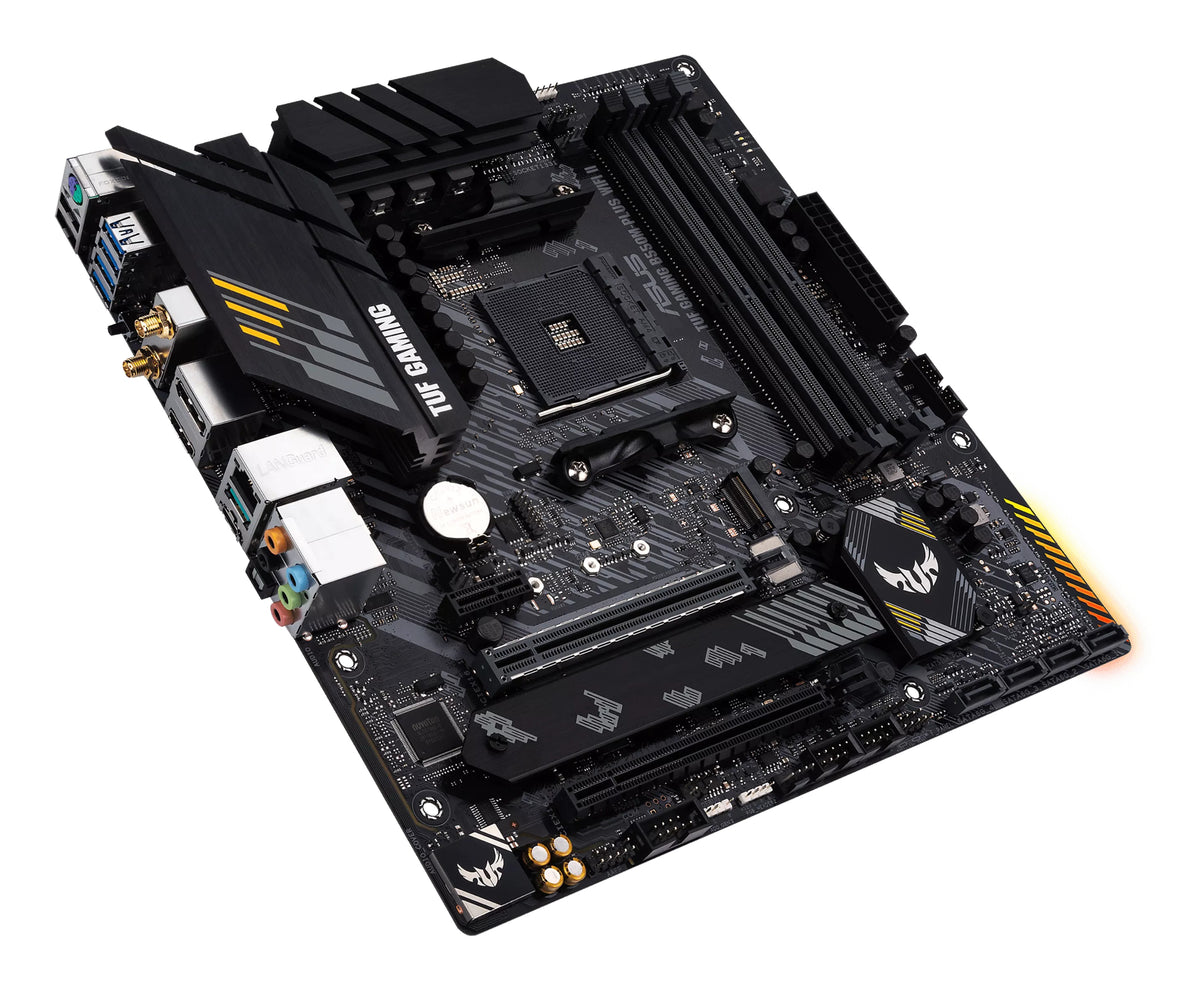

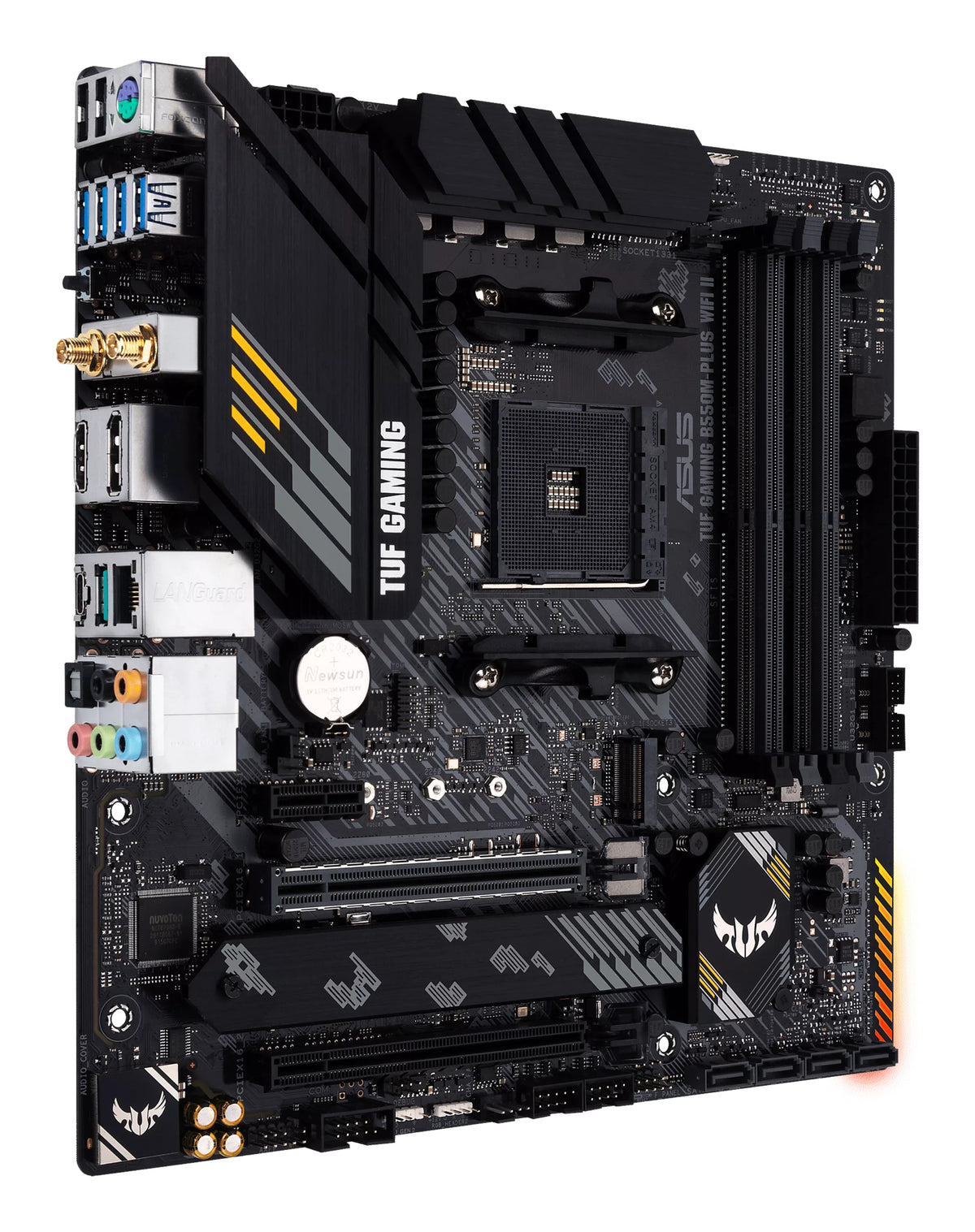

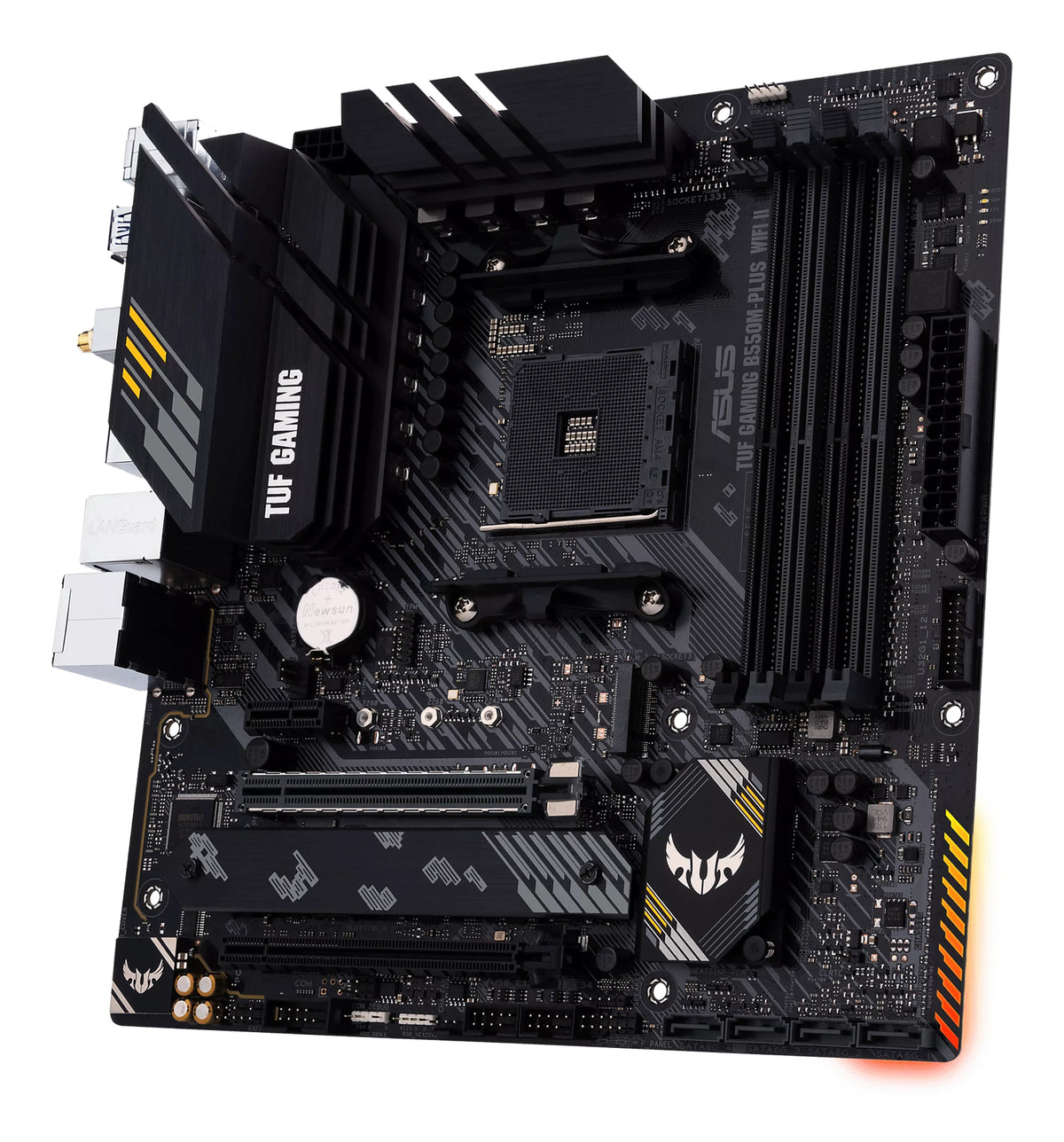

ASUS TUF GAMING B550M-PLUS WIFI II AMD B550 Socket AM4 micro ATX

Who it's for: PC builders putting together a Ryzen AM4 system in a compact case. The TUF B550M-Plus has built-in Wi-Fi 6, 2.5Gb Ethernet, two M.2 slots and PCIe 4.0 for a current graphics card. It takes AM4 chips up to the Ryzen 5000 series; it does not take the newer AM5 processors.

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support

• AMD AM4 socket: Ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
• Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
• Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
• Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
• Two-Way AI Noise Cancellation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

                                             ** Click here for full product details **

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD B550
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4866(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
  1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
• RAID: "Support RAID 0, 1, 10"
• Wireless: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Bluetooth 5.2
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
  6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"

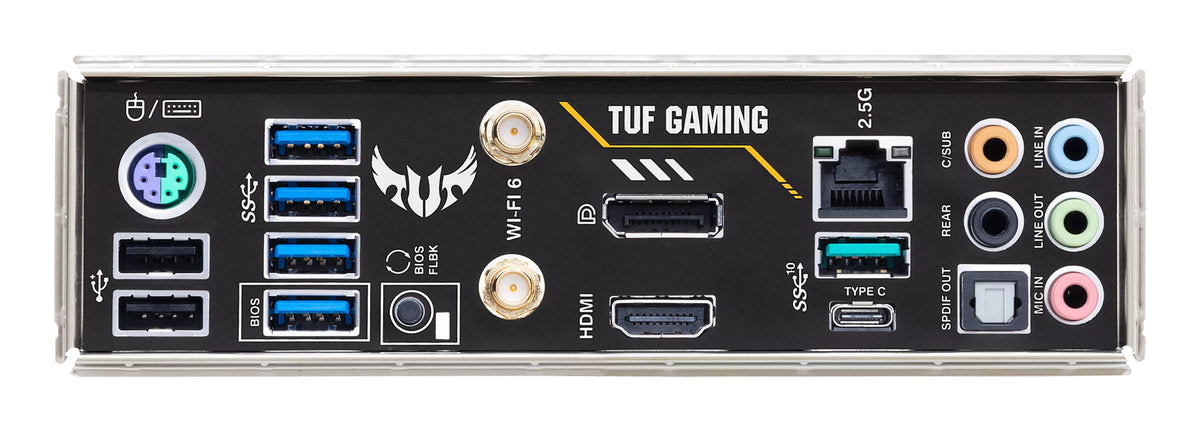

• Back Panel I/O Ports: 2 x USB 3.2 Gen2 (Type-A & C)
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x Addressable Gen2
  2 x AURA RGB
  1 x Clear CMOS
• .: 1 x COM Port
  1 x Front Panel Audio
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel

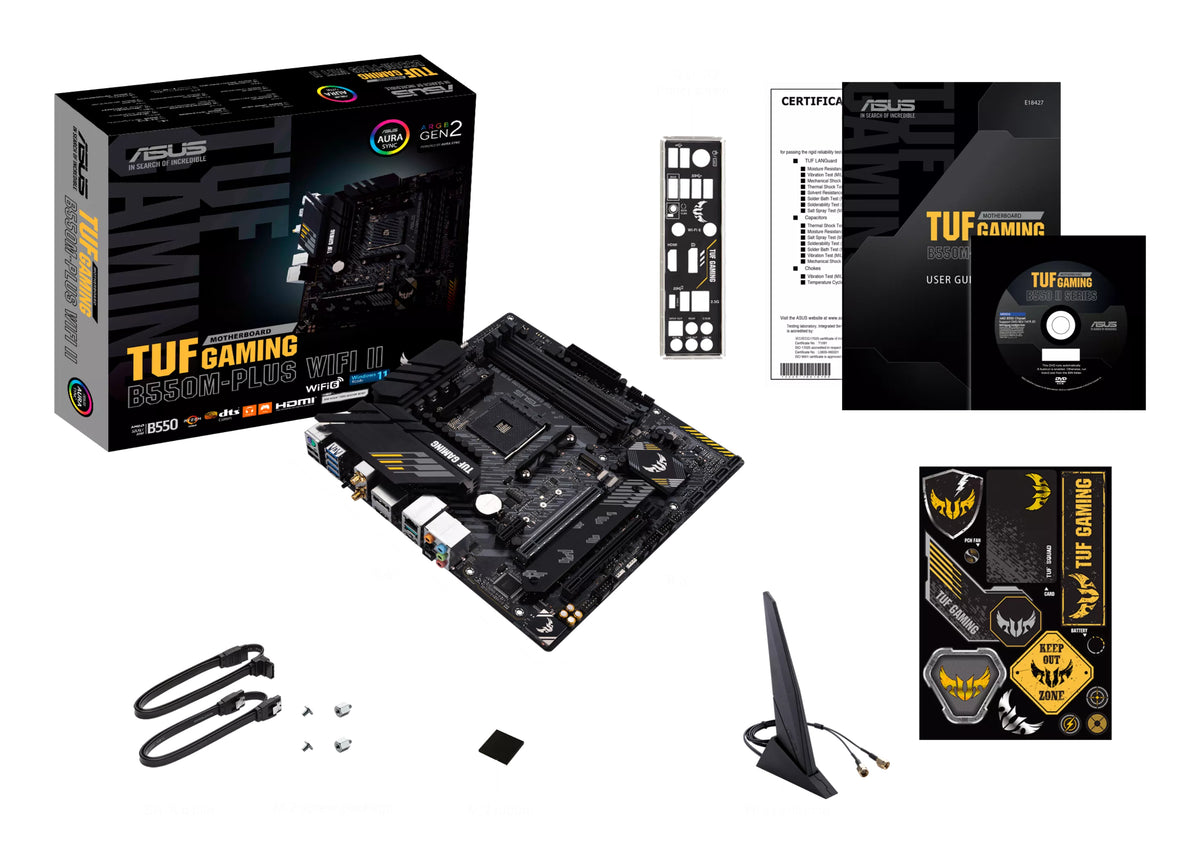

• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber package
  1 x M.2 SSD screw package
  1 x TUF Gaming sticker
  1 x Support DVD
  1 x TUF Certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.4600 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
