Overview

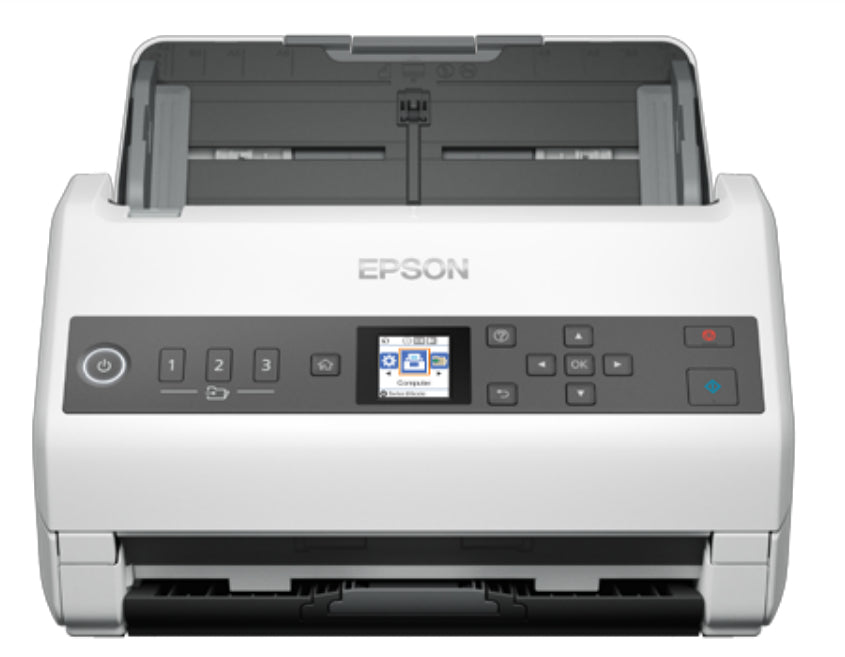

Release the potential of a connected workplace with this affordable and highly efficient standalone network scanner.
Connect your business with this affordable and highly efficient standalone network scanner. It's the intelligent choice for business document management, offering the ability to scan to separate locations – at the touch of a button, allowing you to capture, convert and distribute scanned information within your organisation.
Shared
Scan to email, folder, FTP, SFTP, cloud services and Microsoft applications at the touch of a button¹. The control panel with built in 1.44’’ colour LCD display and three individual job buttons enables you to choose the correct job and send documents to the right destination without delay, making the digital files available across multiple departments.
High performance
With a high capacity 100 sheet ADF and scan speeds of up to 40ppm/80ipm, bulk jobs can be captured quickly and easily as a single file, with minimal user intervention.
Intelligent
Take control with a range of intelligent features, including ultra-sonic sensors and a paper protection function. Slow mode allows difficult media to be captured by reducing roller speed, without increasing file sizes. Double feed detection skip means difficult documents like envelopes and post-it notes can be processed rapidly.
Reliable
Paper protection, double feed and dirt detection warning ensure high quality digital images are captured carefully and precisely, from 27gsm to 413gsm. The Active Separation Roller System and on-board sensors help prevent document double-feeds and ensures every piece of paper is scanned accurately.
Connect your business with this affordable and highly efficient standalone network scanner. It's the intelligent choice for business document management, offering the ability to scan to separate locations – at the touch of a button, allowing you to capture, convert and distribute scanned information within your organisation.
Shared
Scan to email, folder, FTP, SFTP, cloud services and Microsoft applications at the touch of a button¹. The control panel with built in 1.44’’ colour LCD display and three individual job buttons enables you to choose the correct job and send documents to the right destination without delay, making the digital files available across multiple departments.
High performance
With a high capacity 100 sheet ADF and scan speeds of up to 40ppm/80ipm, bulk jobs can be captured quickly and easily as a single file, with minimal user intervention.
Intelligent
Take control with a range of intelligent features, including ultra-sonic sensors and a paper protection function. Slow mode allows difficult media to be captured by reducing roller speed, without increasing file sizes. Double feed detection skip means difficult documents like envelopes and post-it notes can be processed rapidly.
Reliable
Paper protection, double feed and dirt detection warning ensure high quality digital images are captured carefully and precisely, from 27gsm to 413gsm. The Active Separation Roller System and on-board sensors help prevent document double-feeds and ensures every piece of paper is scanned accurately.
Specifications
Scanning
| Maximum scan size | 215.9 x 6096 mm |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| Black/white scanning colour modes | Monochrome |
Design
| Scanner type | Sheet-fed scanner |
|---|---|
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 3.66 cm (1.44") |
Performance
| Sensor type | CIS |
|---|---|
| Light source | ReadyScan LED |
| Scan file formats | DOCX, BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX |
| Scan to | E-mail, FTP, Network folder |
Paper handling
| Maximum ISO A-series paper size | A4 |
|---|---|
| Scanning media types supported | Business Card, Envelopes, Plastic Card, Post Card(JPN) |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| Letter | Yes |
| Legal | Yes |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Optional connectivity | Ethernet |
Network
| Ethernet LAN | Yes |
|---|
Power
| Power supply type | AC |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
Weight & dimensions
| Width | 296 mm |
|---|---|
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.6 kg |
System requirements
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
