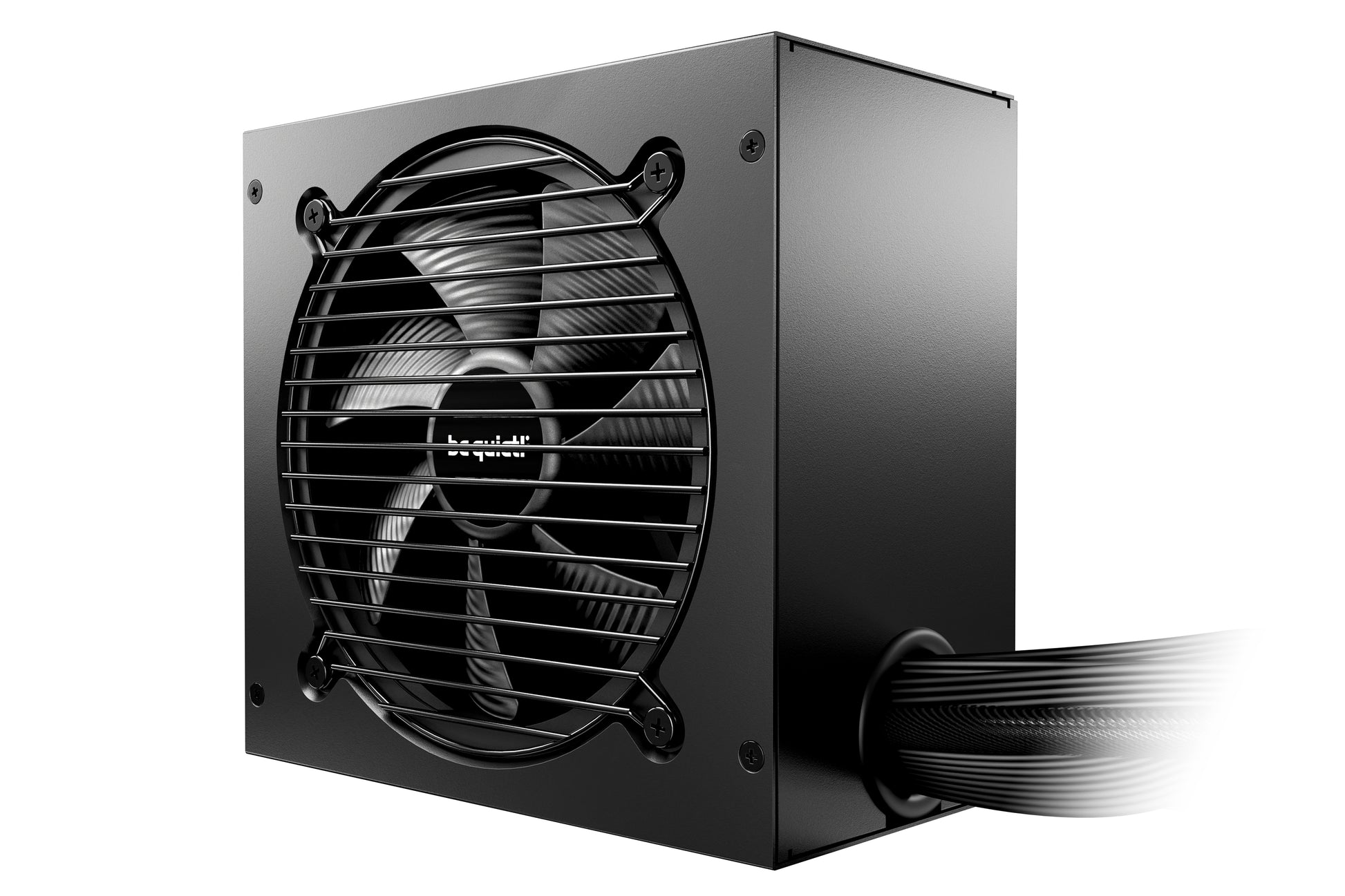

be quiet! PURE POWER 12 850W power supply unit 20+4 pin ATX ATX Black

be quiet! PURE POWER 12 850W power supply unit 20+4 pin ATX ATX Black

£123.99
£123.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Exceptional quiet, superior features
Pure Power 12 850W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.

    Power

    • Total power: 850 W
    • AC input voltage: 100 - 240 V
    • Peak power: 900 W
    • AC input frequency: 50/60 Hz
    • Maximum input current (@110V): 12 A
    • Maximum input current (@220V): 6 A
    • Power factor: 0.98
    • Power Factor Correction (PFC) type: Active
    • Number of +12V rail(s): 1
    • Combined power (+3.3V): 120 W
    • Combined power (+12V): 850 W
    • Combined power (+5V): 120 W
    • Combined power (-12V): 3.6 W
    • Combined power (+5Vsb): 15 W
    • Max output current (+3.3V): 22 A
    • Max output current (+12V1): 70.9 A
    • Max output current (+5V): 22 A
    • Max output current (-12V): 0.3 A
    • Max output current (+5Vsb): 3 A
    • Hold time: 17.34 ms
    • Efficiency: 90.5%
    • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

    Ports & interfaces

    • Motherboard power connector: 20+4 pin ATX
    • Peripheral (Molex) power connectors (4-pin): 1
    • Motherboard power cable length: 55 cm
    • Number of SATA power connectors: 6
    • SATA power cable length: 500,650,800,950 mm
    • Peripheral (Molex) power cable length: 800 mm
    • PCI Express power connectors (6+2 pin): 3
    • PCI Express power connectors (12-pin): 1
    • PCI Express power cable length: 60 cm
    • CPU power connector (4+4 pin): Yes
    • CPU power cable length: 60 cm
    • Cabling type: Non-Modular

    Performance

    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • 80 PLUS certification: 80 PLUS Gold
    • ATX version: 3.1
    • EPS version: 2.92
    • Noise level: 25.1 dB
    • Bearing technology: Rifle
    • Mean time between failures (MTBF): 100000 h

    Design

    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 12 cm
    • Number of fans: 1 fan(s)
    • On/off switch: Yes

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 70 °C
    • Operating relative humidity (H-H): 0 - 90%
    • Storage relative humidity (H-H): 0 - 95%

    Packaging content

    • Cables included: AC
    • Cable tie(s) included: Yes

    Certificates

    • Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus

    Weight & dimensions

    • Width: 86 mm
    • Depth: 160 mm
    • Height: 150 mm
    • Weight: 2.7 kg

    Packaging data

    • Package width: 133 mm
    • Package depth: 320 mm
    • Package height: 210 mm
    • Package weight: 3.1 kg

    Technical details

    • Sustainability certificates: ENERGY STAR, ErP, Triman

    Logistics data

    • Shipping (inner) case length: 56 cm
    • Shipping (inner) case width: 24 cm
    • Shipping (inner) case height: 34 cm
    • Shipping (inner) case net weight: 13.4 kg
    • Products per shipping (inner) case: 4 pc(s)
    • Warranty period: 10 year(s)

    Other features

    • Screws included: Yes
