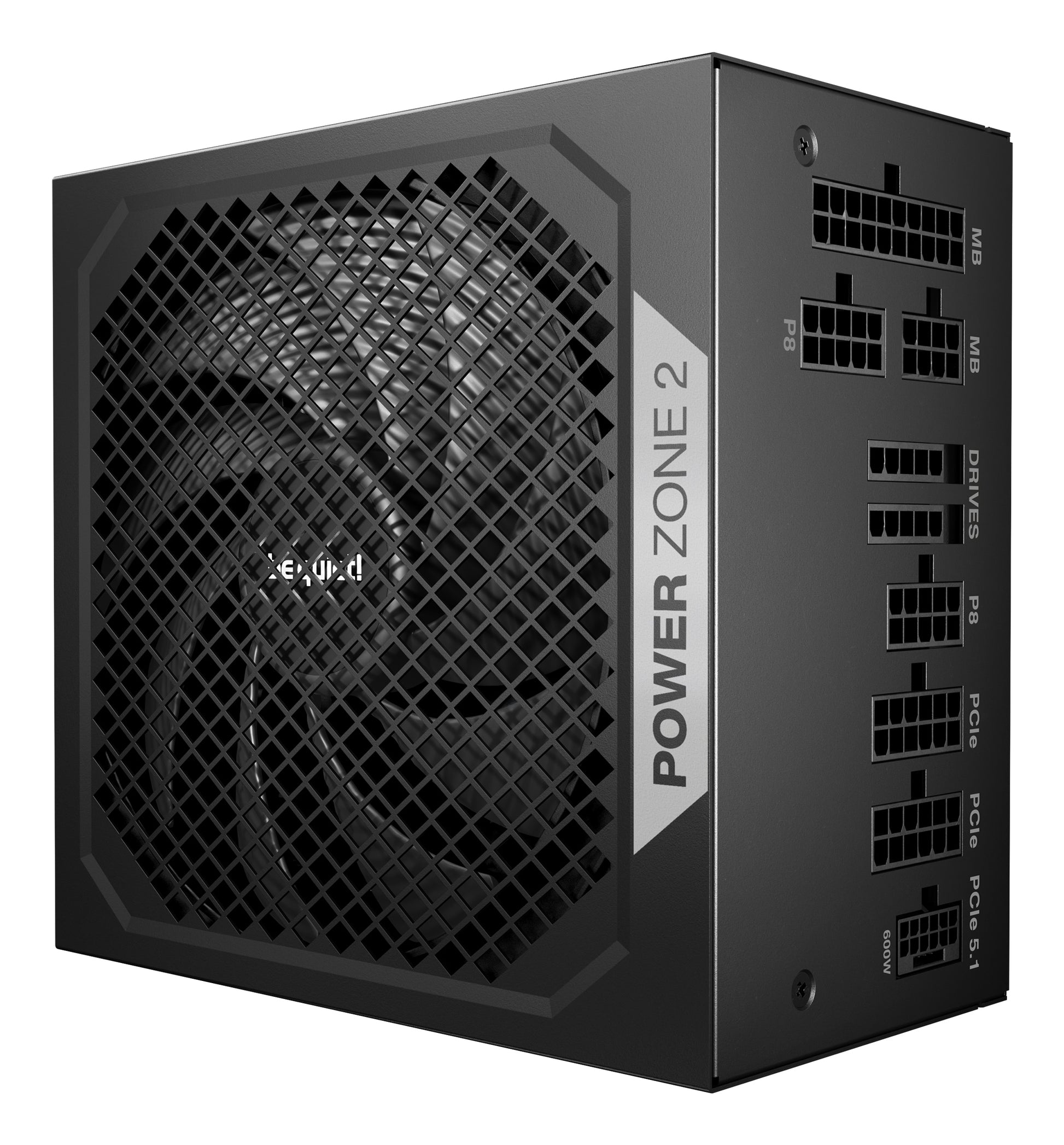

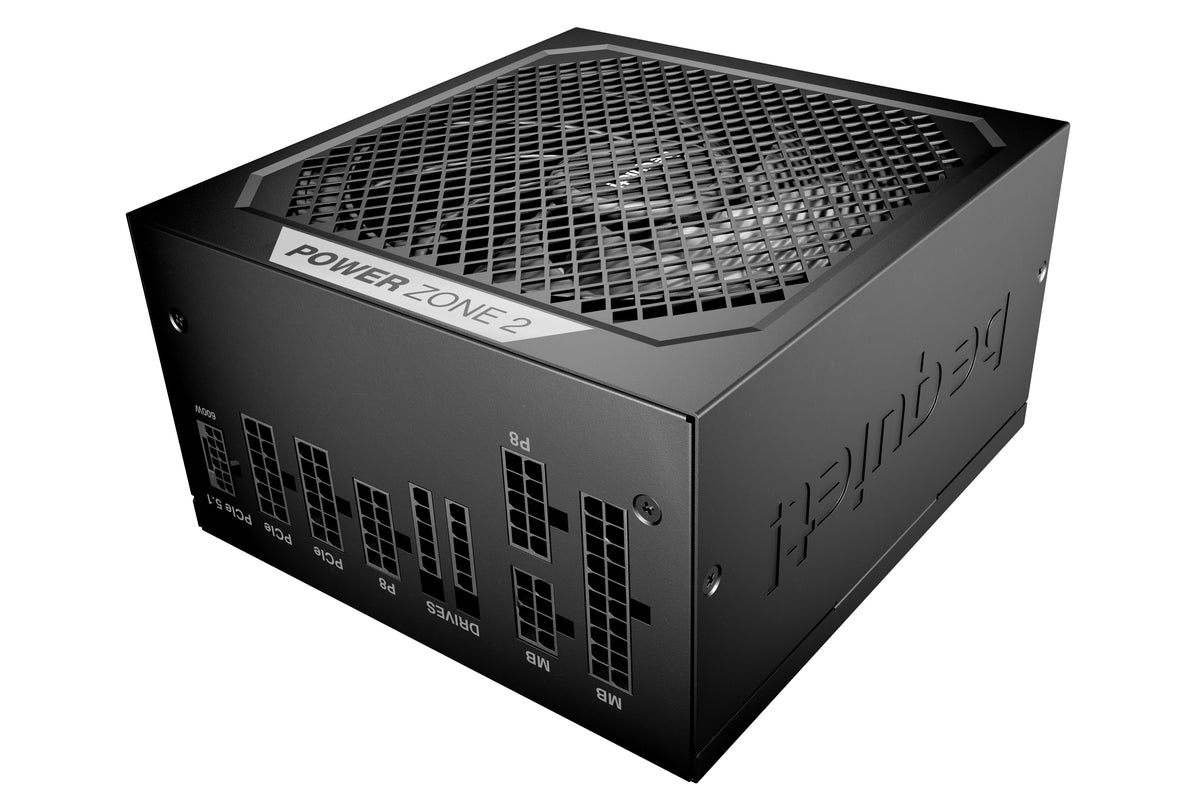

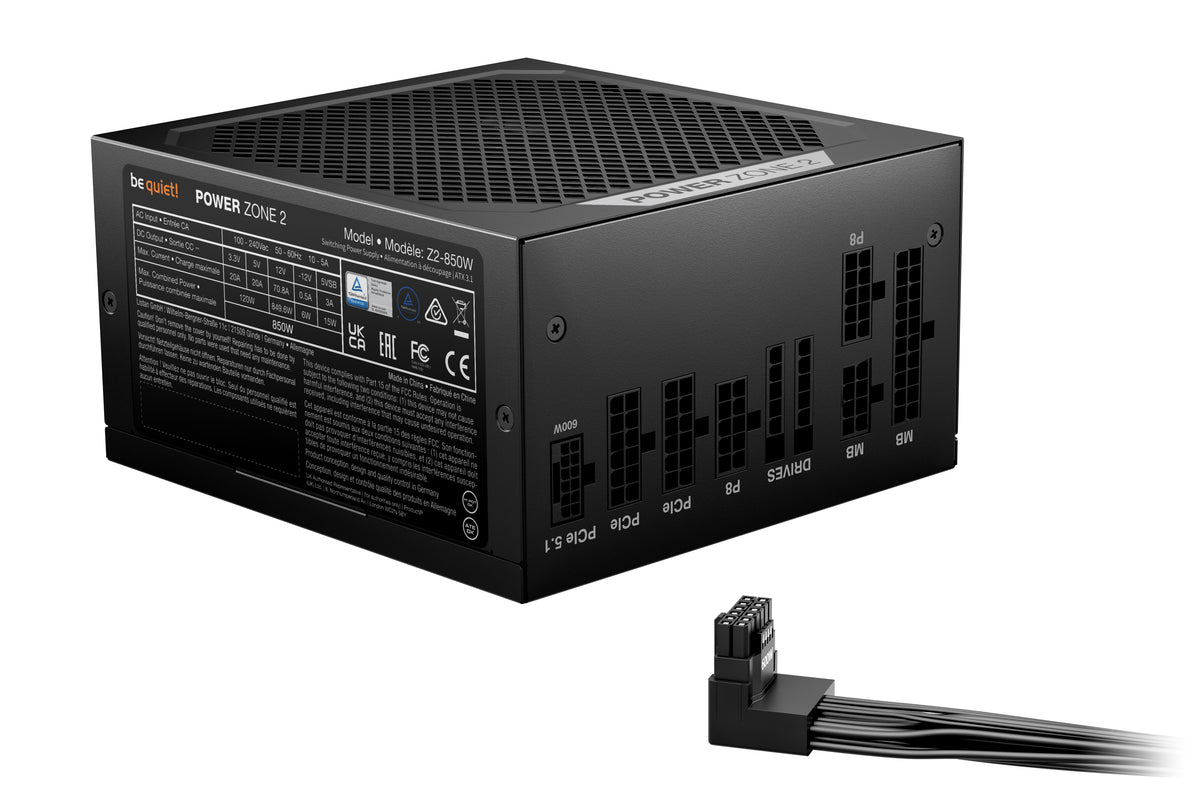

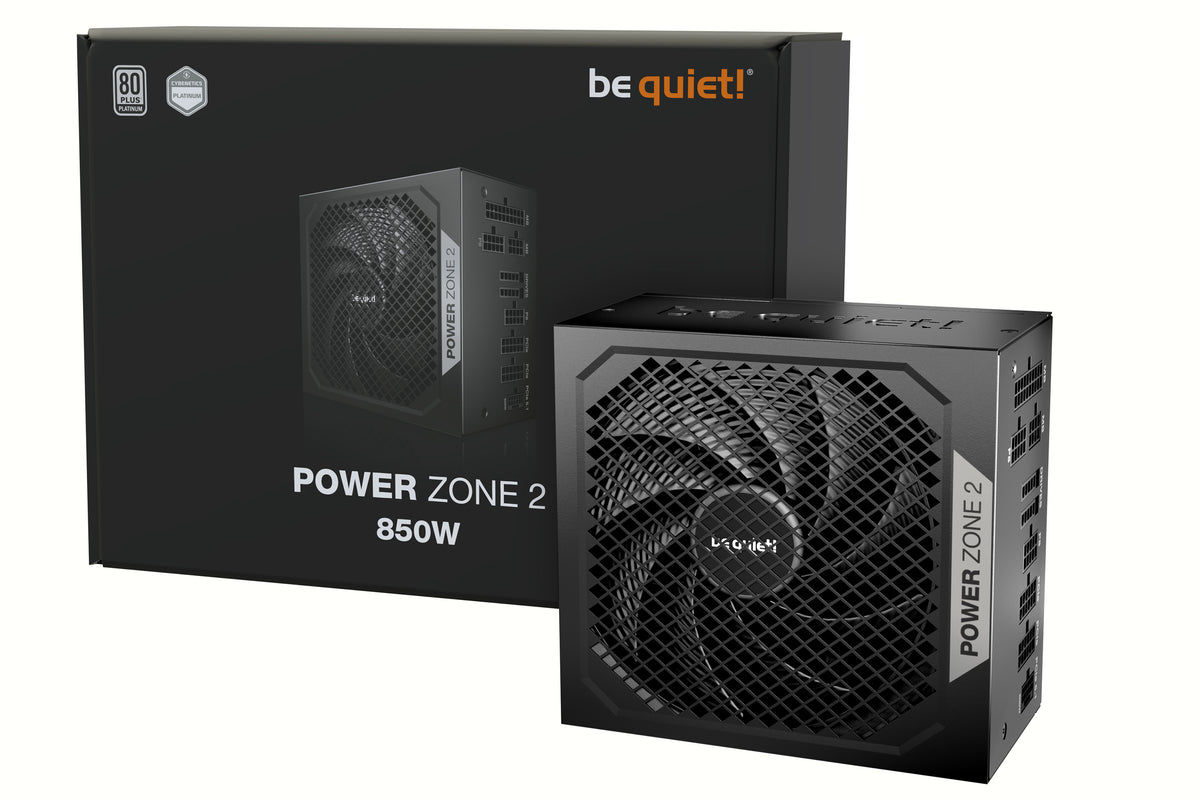

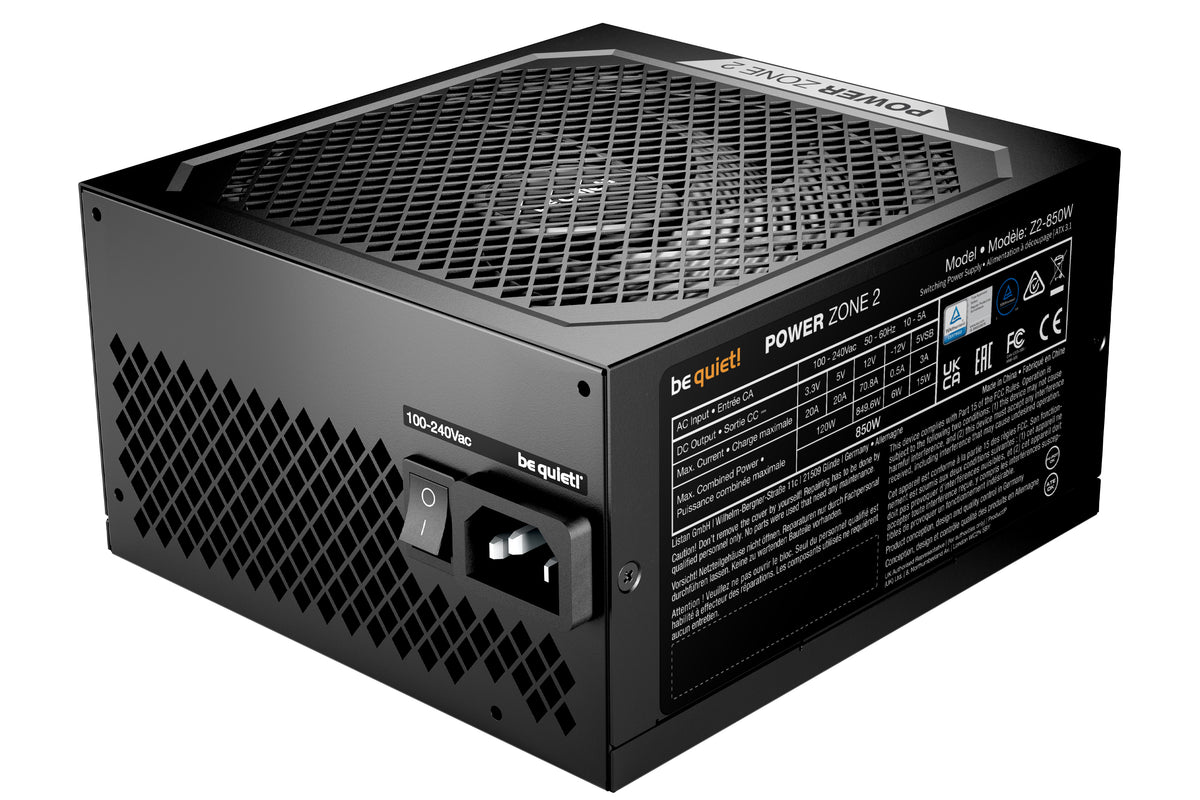

be quiet! POWER ZONE 2 850W Power Supply Unit ATX Black

be quiet! POWER ZONE 2 850W Power Supply Unit ATX Black

Part no.BP007EU

Regular price £109.16ex VAT£130.99 inc VAT
Regular price £0.00 Sale price £109.16ex VAT£130.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

Specifications

Power
Total power850 W
AC input voltage100 - 240 V
Peak power920 W
AC input frequency50/60 Hz
Maximum input current (@110V)10 A
Maximum input current (@220V)5 A
Power factor0.98
Number of +12V rail(s)1
Combined power (+3.3V)120 W
Combined power (+12V)849.6 W
Combined power (+5V)120 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)70.8 A
Max output current (+5V)20 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Hold time21.1 ms
Efficiency92.3%
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Ports & interfaces
Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)1
Motherboard power cable length60 cm
Number of SATA power connectors7
SATA power cable length550,700,850,1000 mm
Peripheral (Molex) power cable length1000 mm
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)3
PCI Express power connectors (16-pin)1
PCI Express power cable length60 cm
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
CPU power cable length70 cm

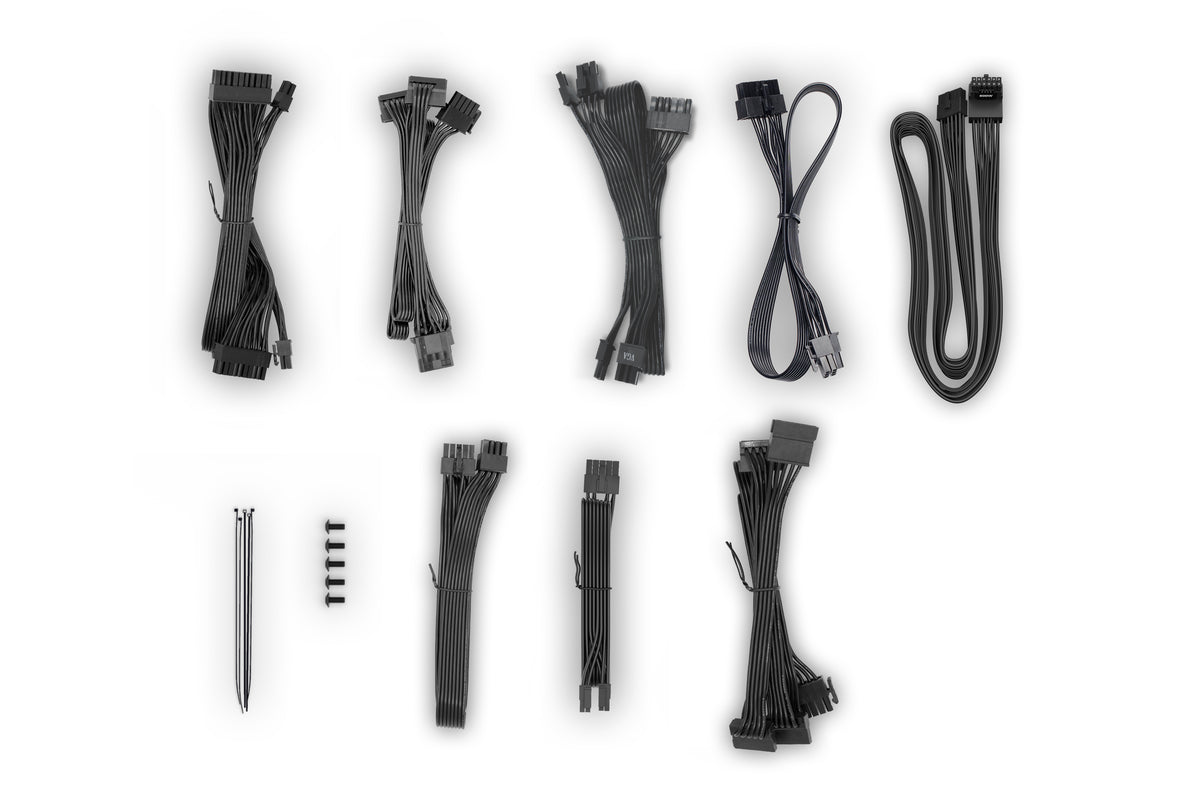

Cabling typeFully-Modular
Performance
PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
ATX version3.1
EPS version2.92
Noise level24.9 dB
Bearing technologyRifle
Mean time between failures (MTBF)100000 h
Design
Product colourBlack
Cooling typeActive
Fan diameter14 cm
Number of fans1 fan(s)
On/off switchYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 95%
Certificates
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesBSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Weight & dimensions
Width150 mm
Depth160 mm
Height86 mm
Technical details
Sustainability certificatesENERGY STAR, ErP, Triman
Other features
Screws includedYes
Cable ties includedYes
