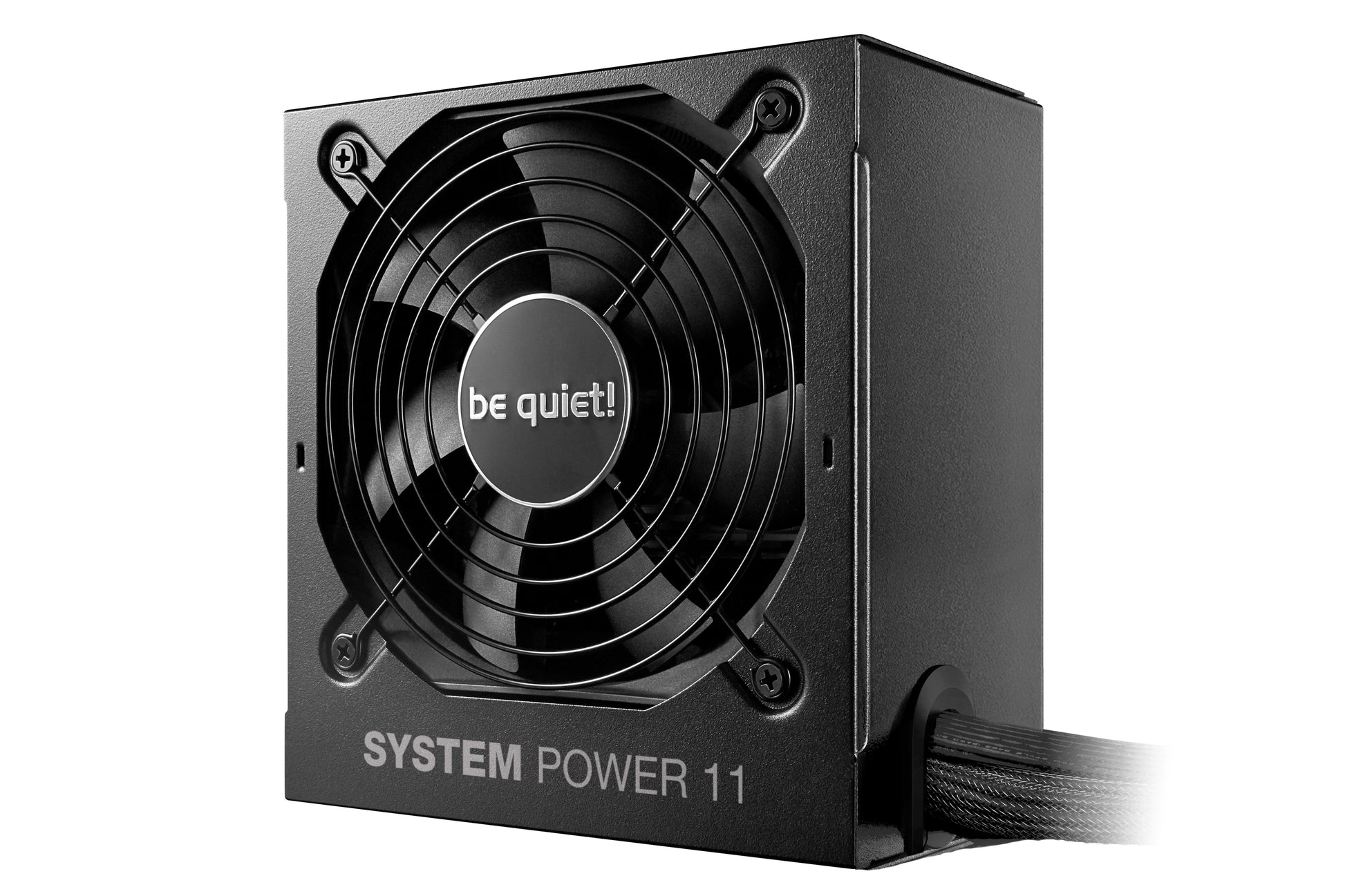

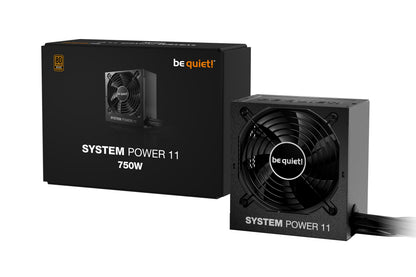

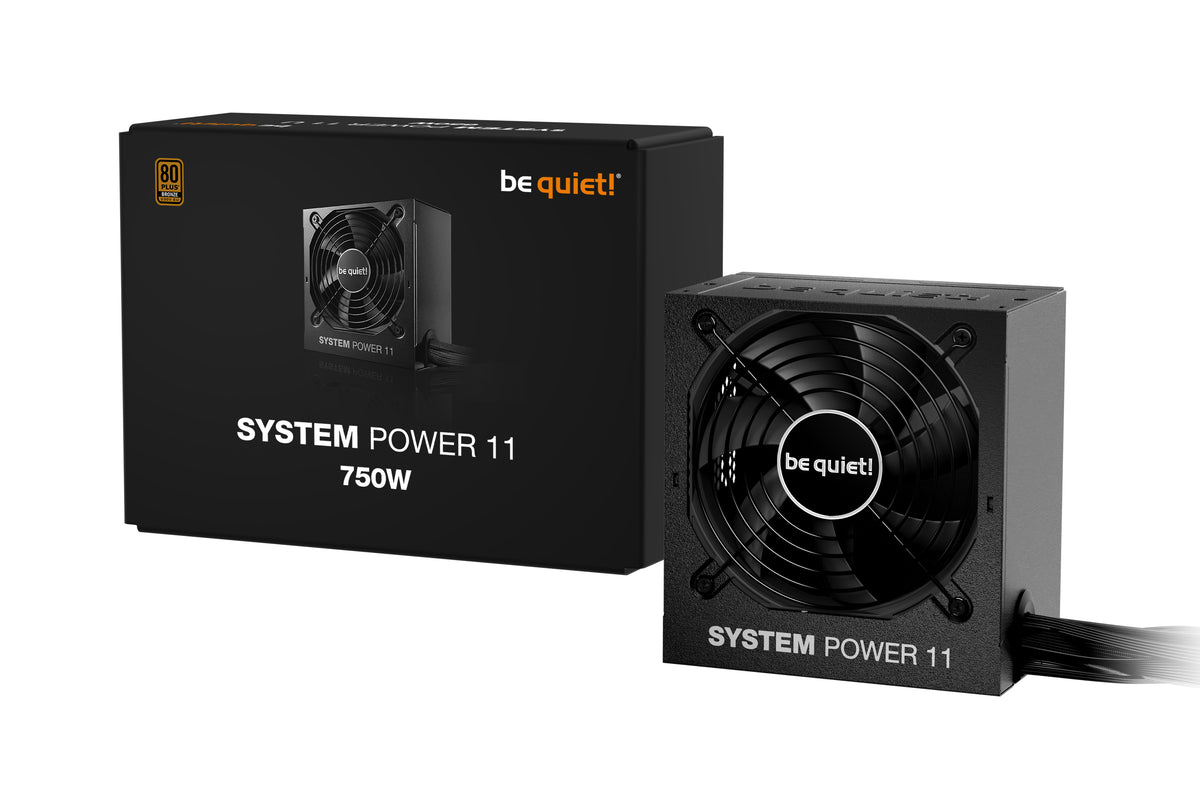

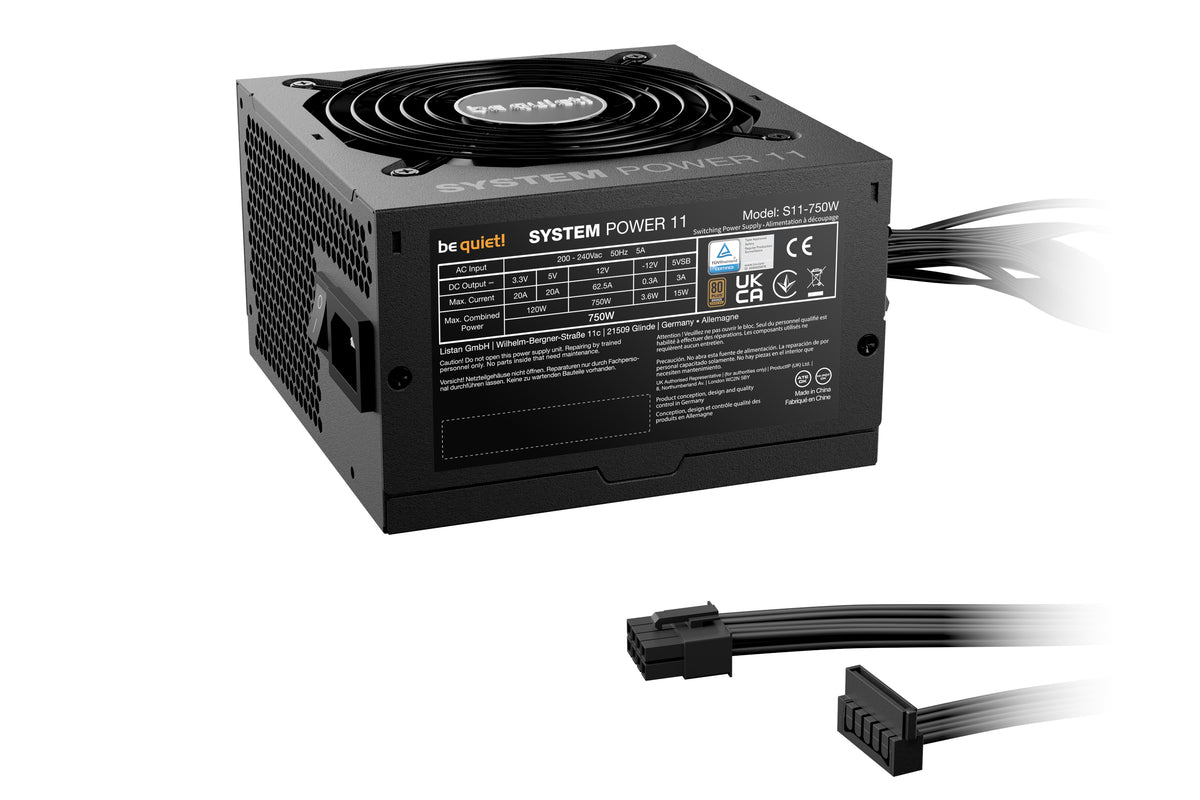

be quiet! System Power 11 750W power supply unit 20+4 pin ATX ATX Black

be quiet! System Power 11 750W power supply unit 20+4 pin ATX ATX Black

£89.99
£89.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Proven reliability, quiet operation
System Power 11 750W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 750W offers even at entry-level.

    Power

    • Total power: 750 W
    • AC input voltage: 200 - 240 V
    • AC input frequency: 50 Hz
    • Input current: 4 A
    • Power factor: 0.98
    • Number of +12V rail(s): 1
    • Combined power (+3.3V): 120 W
    • Combined power (+12V): 750 W
    • Combined power (+5V): 120 W
    • Combined power (-12V): 3.6 W
    • Combined power (+5Vsb): 15 W
    • Max output current (+3.3V): 20 A
    • Max output current (+12V1): 62.5 A
    • Max output current (+5V): 20 A
    • Max output current (-12V): 0.3 A
    • Max output current (+5Vsb): 3 A
    • Hold time: 17.34 ms
    • Efficiency: 90%
    • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage

    Ports & interfaces

    • Motherboard power connector: 20+4 pin ATX
    • Peripheral (Molex) power connectors (4-pin): 1
    • Number of SATA power connectors: 6
    • EPS power connector (8-pin): Yes
    • PCI Express power connectors (6+2 pin): 3
    • PCI Express power connectors (12-pin): 1
    • CPU P4 connector (4-pin): 1
    • CPU power connector (4+4 pin): Yes
    • Cabling type: Non-Modular

    Performance

    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • 80 PLUS certification: 80 PLUS Bronze
    • ATX version: 3.1
    • EPS version: 2.92
    • Noise level: 33.4 dB
    • Bearing technology: Rifle
    • Mean time between failures (MTBF): 100000 h

    Design

    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 12 cm
    • Number of fans: 1 fan(s)
    • Fan speed: 0 - 2100 RPM
    • On/off switch: Yes

    Certificates

    • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
    • Compliance certificates: CB, CE, RoHS, TÜV mark, UKCA, WEEE

    Weight & dimensions

    • Width: 150 mm
    • Depth: 86 mm
    • Height: 140 mm
    • Weight: 2.04 kg

    Packaging data

    • Package width: 195 mm
    • Package depth: 268 mm
    • Package height: 97 mm
    • Package weight: 2.4 kg
    • Package type: Box

    Technical details

    • Sustainability certificates: ENERGY STAR, ErP

    Logistics data

    • Shipping (inner) case length: 55.6 cm
    • Shipping (inner) case width: 31.1 cm
    • Shipping (inner) case height: 21.8 cm
    • Products per shipping (inner) case: 6 pc(s)
    • Shipping (inner) case gross weight: 15.6 kg

    Other features

    • Screws included: Yes
    • Cable ties included: Yes
