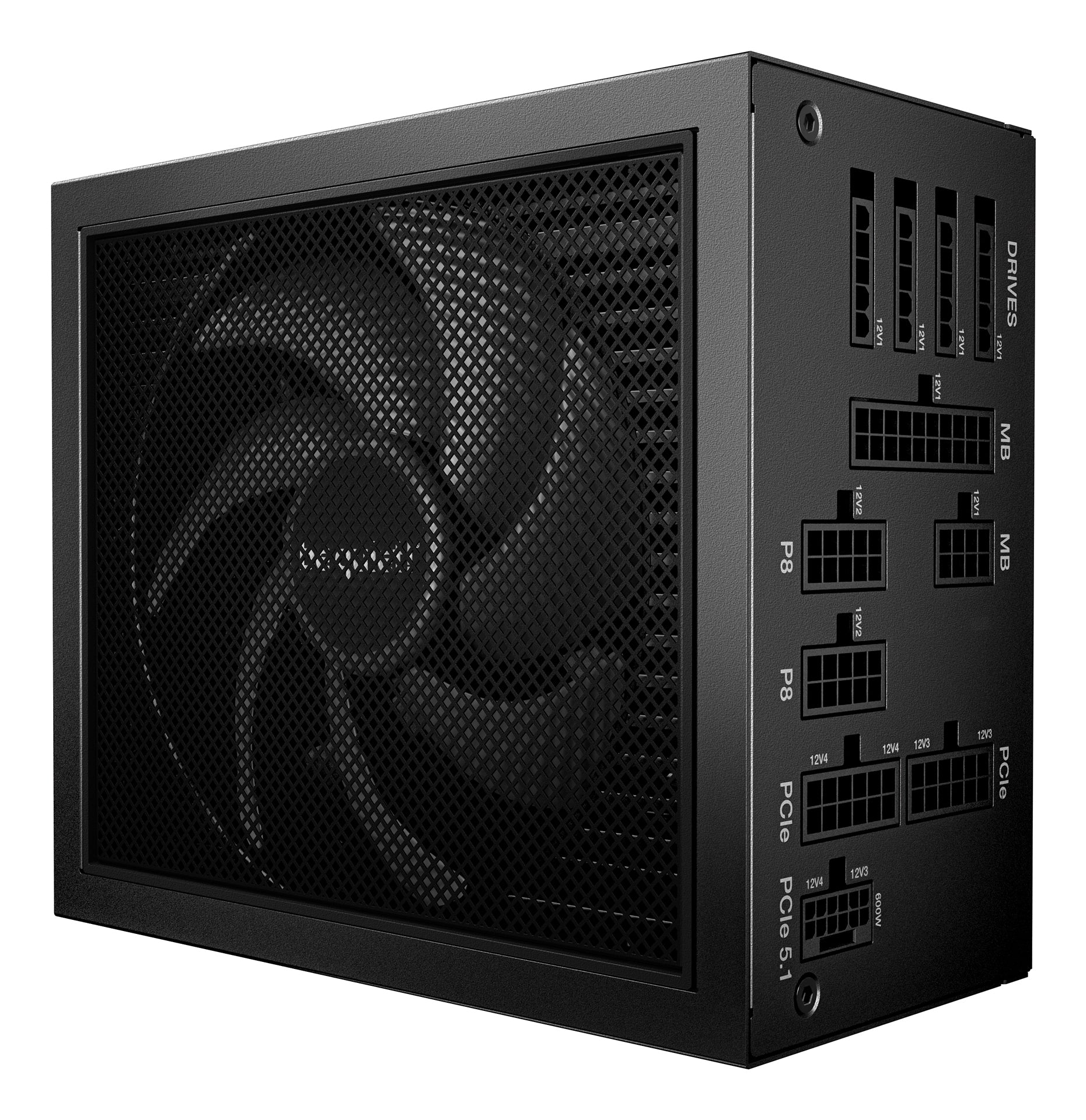

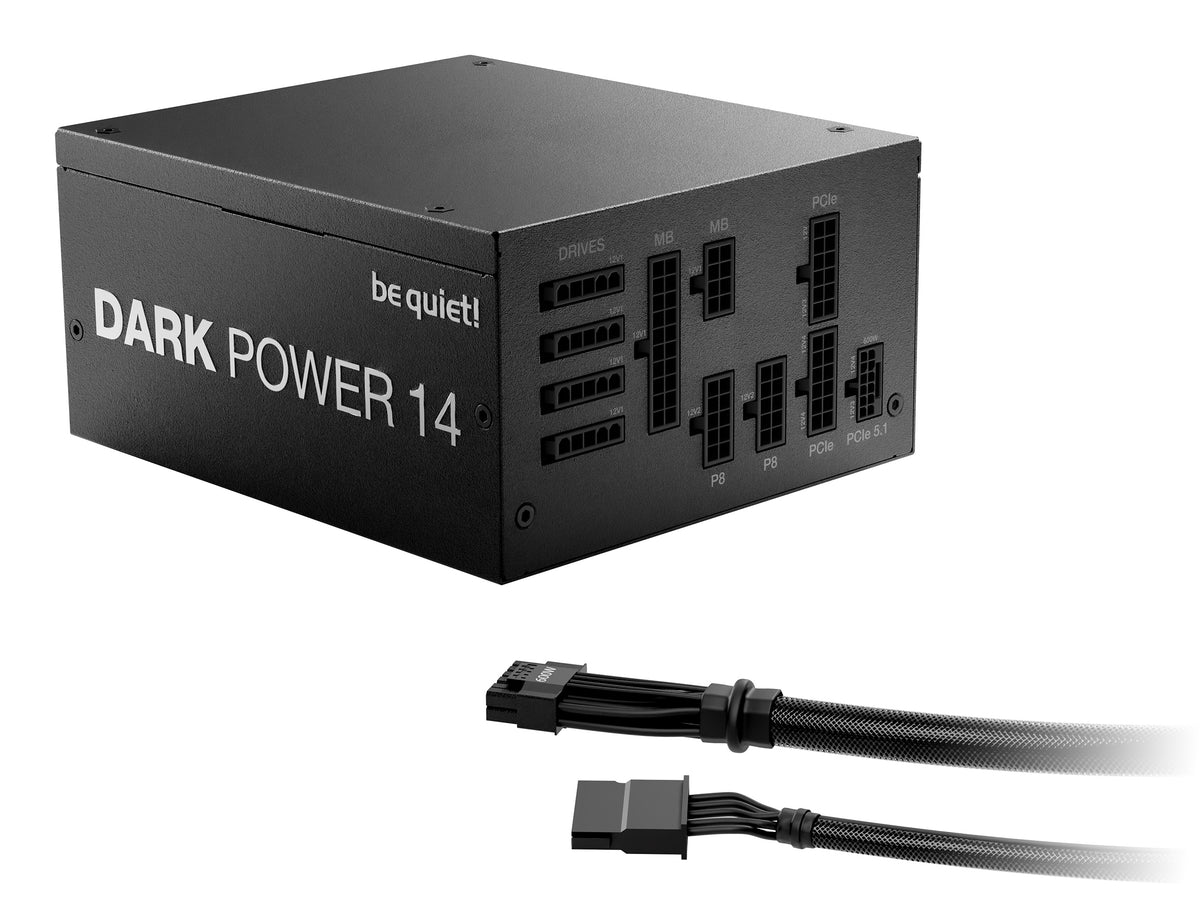

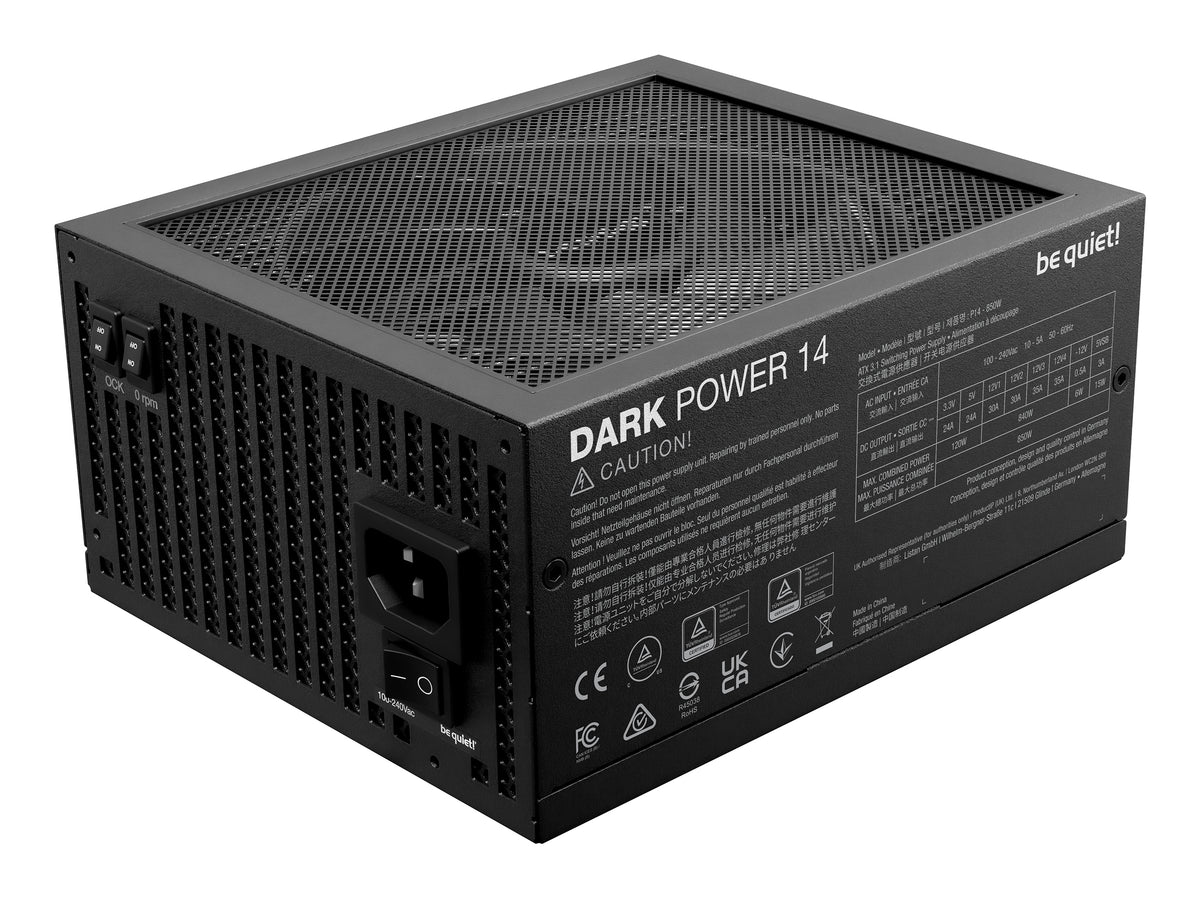

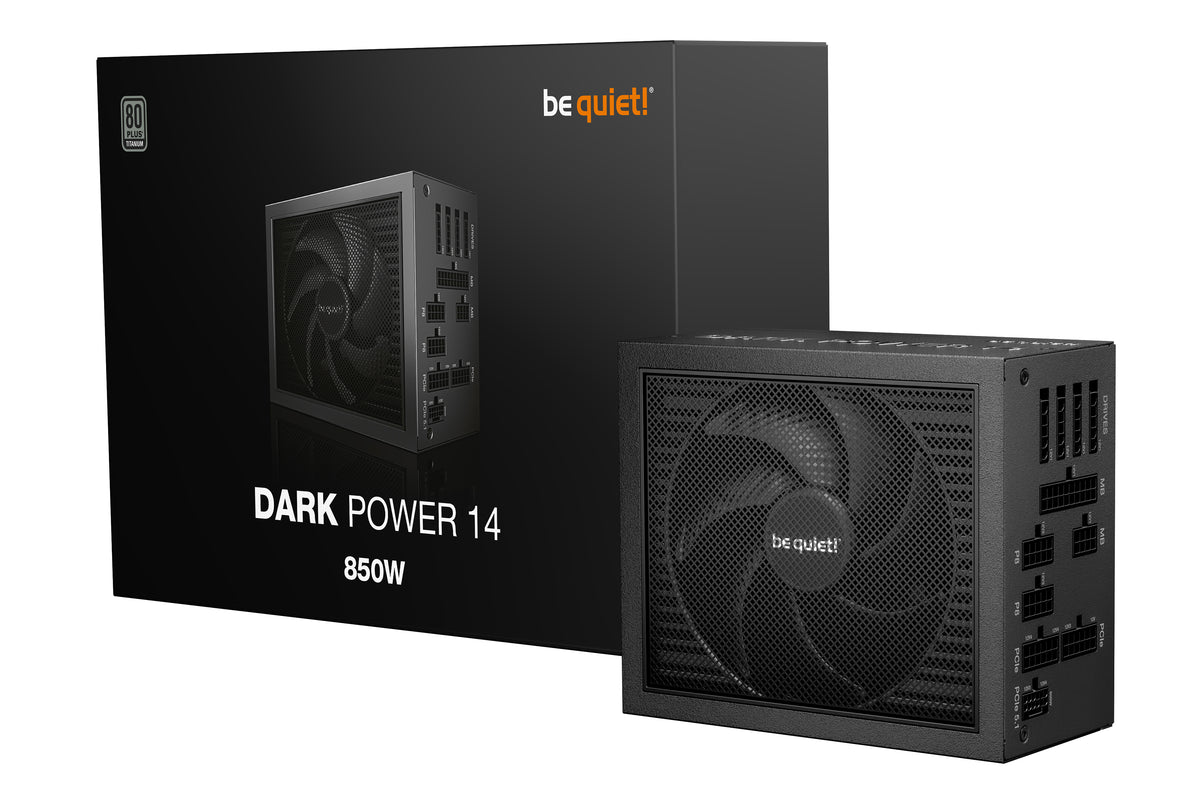

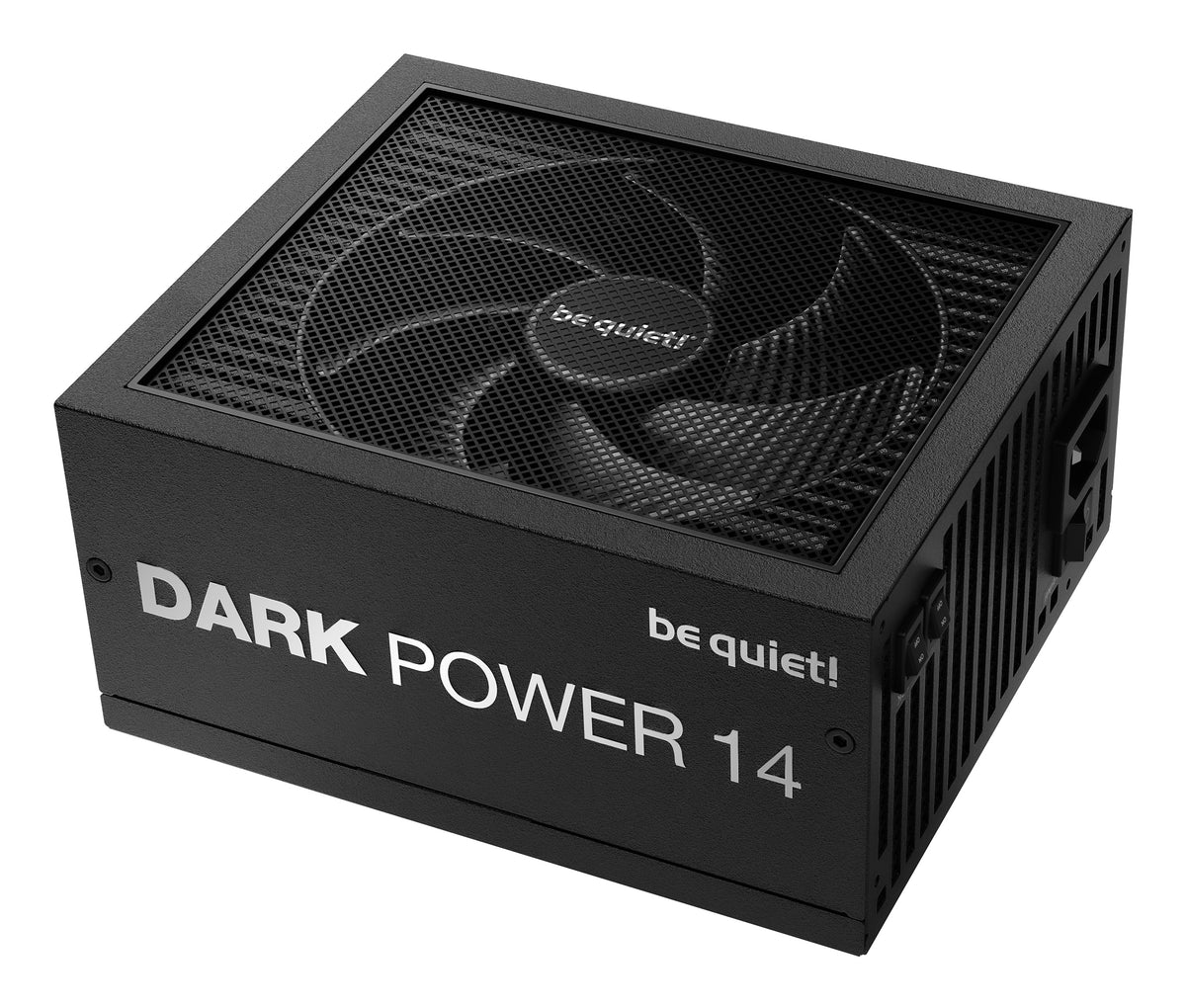

be quiet! Dark Power 14 850 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black

Power

• Total power: 850 W
• AC input voltage: 100 - 240 V
• Peak power: 950 W
• AC input frequency: 50/60 Hz
• Maximum input current (@110V): 10 A
• Maximum input current (@220V): 5 A
• Power factor: 0.98
• Number of +12V rail(s): 4
• Combined power (+3.3V): 120 W
• Combined power (+12V): 850 W
• Combined power (+5V): 120 W
• Max output current (+3.3V): 24 A
• Max output current (+12V1): 30 A
• Max output current (+12V2): 30 A
• Max output current (+12V3): 35 A
• Max output current (+12V4): 35 A
• Max output current (+5V): 24 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 3 A
• Hold time: 20.7 ms
• Efficiency: 93.8%
• Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage

Ports & interfaces

• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 2
• Motherboard power cable length: 60 cm
• SATA power cable length: 600,750,900,1050 mm
• Number of SATA power cables: 13
• Peripheral (Molex) power cable length: 900,1050 mm
• EPS power connector (8-pin): Yes
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 4
• PCI Express power connectors (12-pin): 1
• PCI Express power cable length: 60 cm
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 70 cm
• ATX power connector (20+4 pin): Yes
• PCI Express connector: Yes
• Cabling type: Fully-Modular

Performance

• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• 80 PLUS certification: 80 PLUS Titanium
• ATX version: 3.1
• EPS version: 2.92
• Noise level: 16 dB
• Bearing technology: FDB
• Mean time between failures (MTBF): 100000 h

Design

• Product colour: Black
• Cooling type: Active
• Fan diameter: 13.5 cm
• Number of fans: 1 fan(s)
• Fan speed: 0 - 2100 RPM

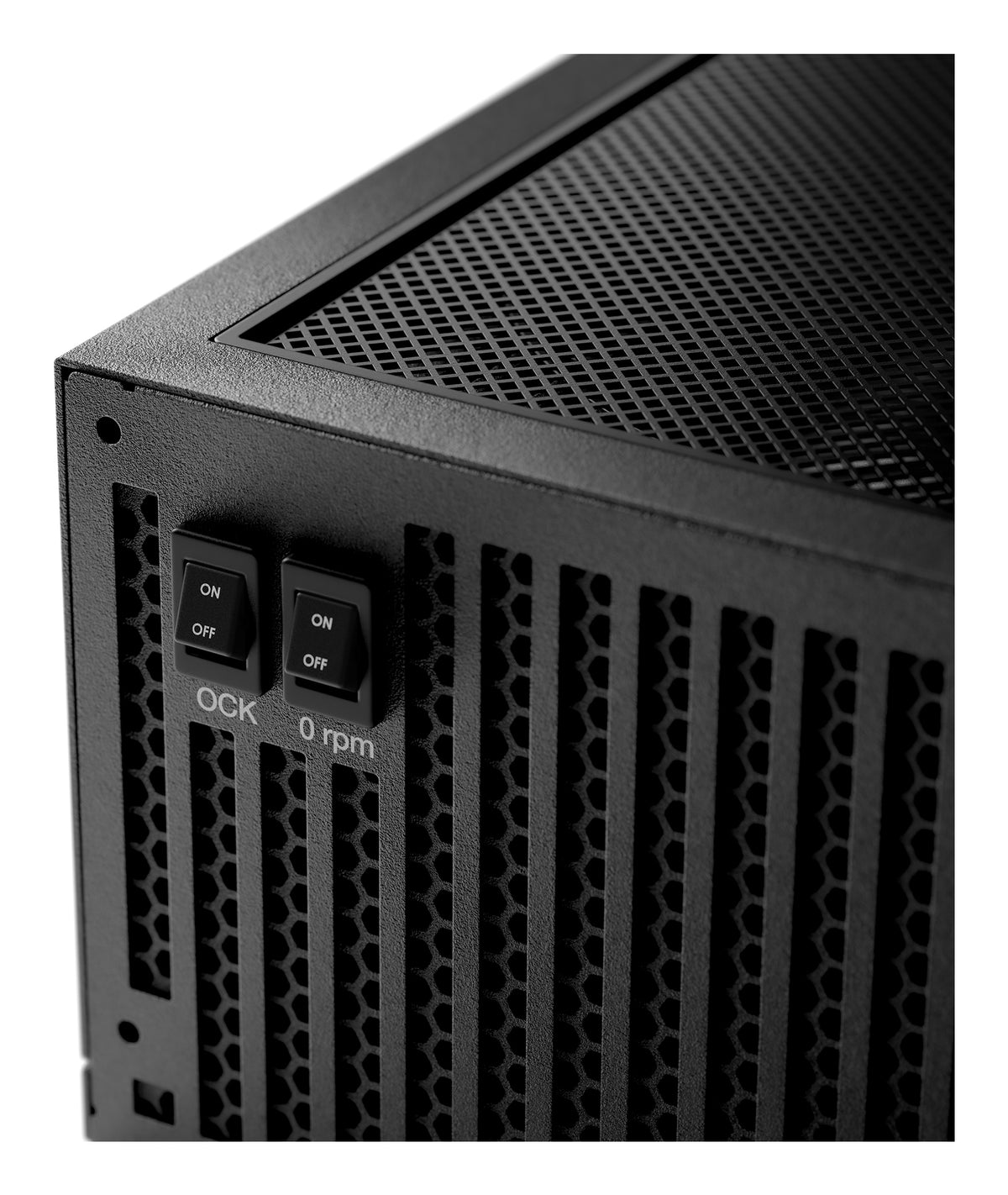

• On/off switch: Yes
• On/off fan switch: Yes

Operational conditions

• Operating temperature (T-T): 0 - 40 °C

Certificates

• Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus

Weight & dimensions

• Width: 150 mm
• Depth: 175 mm
• Height: 86 mm
• Weight: 2.2 kg

Packaging data

• Manual: Yes
• Manual languages: Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
• Package width: 230 mm
• Package depth: 126 mm
• Package height: 355 mm
• Package weight: 3.5 kg

Technical details

• Sustainability certificates: ENERGY STAR, ErP, Triman

Logistics data

• Shipping (inner) case length: 52.8 cm
• Shipping (inner) case width: 36.8 cm
• Shipping (inner) case height: 26 cm
• Shipping (inner) case net weight: 19.3 kg
• Products per shipping (inner) case: 4 pc(s)

Other features

• Screws included: Yes
• Cable ties included: Yes
