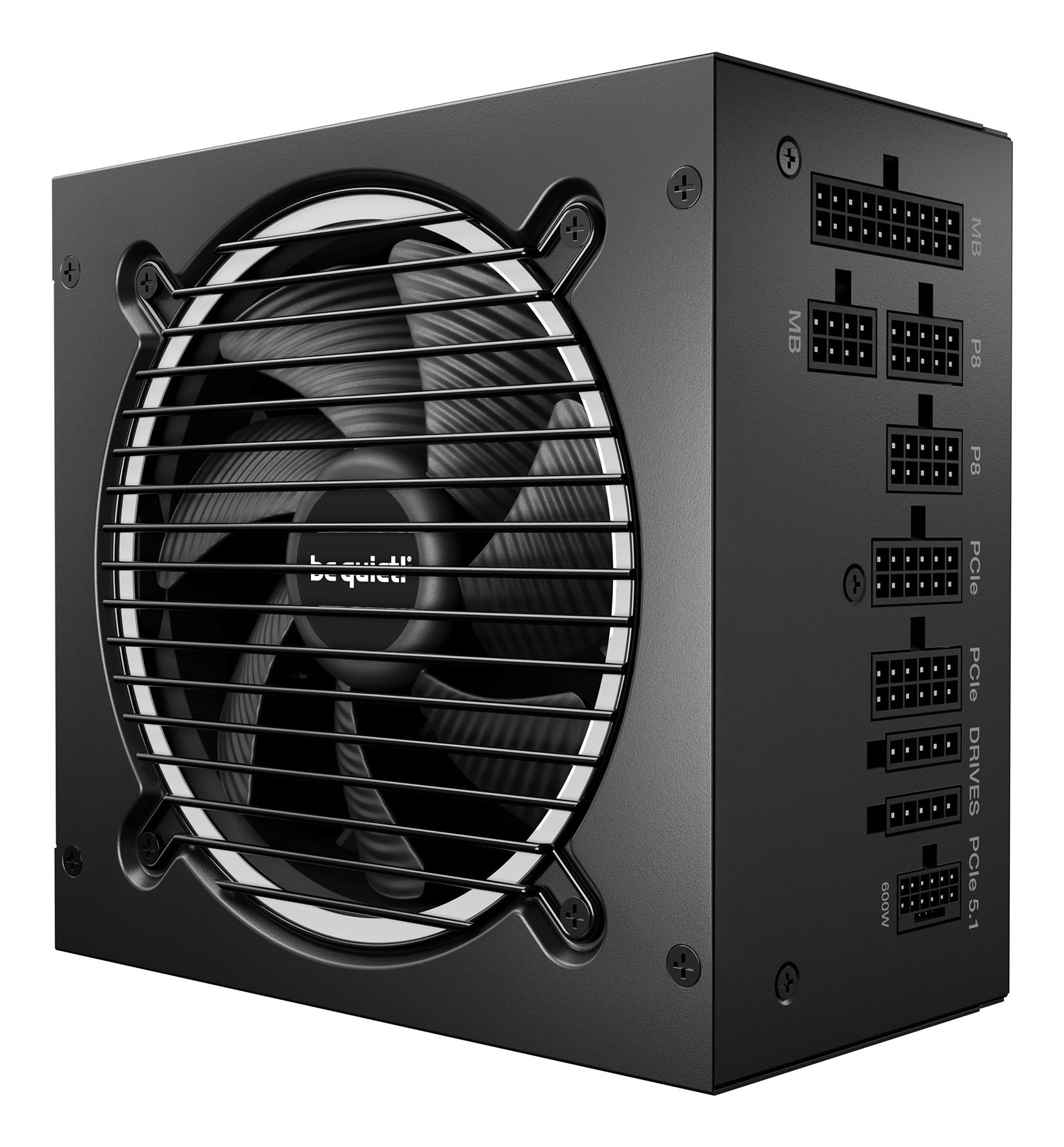

be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black

be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black

£123.99
£123.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Exceptional quiet, superior features
Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.

    Power

    • Total power: 750 W
    • AC input voltage: 100 - 240 V
    • Peak power: 820 W
    • AC input frequency: 50/60 Hz
    • Maximum input current (@110V): 10 A
    • Maximum input current (@220V): 5 A
    • Power factor: 0.98
    • Power Factor Correction (PFC) type: Active
    • Number of +12V rail(s): 1
    • Combined power (+3.3V): 120 W
    • Combined power (+12V): 750 W
    • Combined power (+5V): 120 W
    • Combined power (-12V): 3.6 W
    • Combined power (+5Vsb): 15 W
    • Max output current (+3.3V): 20 A
    • Max output current (+12V1): 62.5 A
    • Max output current (+5V): 20 A
    • Max output current (-12V): 0.3 A
    • Max output current (+5Vsb): 3 A
    • Hold time: 28.62 ms
    • Efficiency: 92.6%
    • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

    Ports & interfaces

    • Motherboard power connector: 20+4 pin ATX
    • Peripheral (Molex) power connectors (4-pin): 2
    • Motherboard power cable length: 55 cm
    • Number of SATA power connectors: 6
    • SATA power cable length: 500,650,800,950 mm
    • Peripheral (Molex) power cable length: 800,950 mm
    • EPS power connector (8-pin): Yes
    • PCI Express power connectors (6+2 pin): 4
    • PCI Express power connectors (12-pin): 1
    • CPU P4 connector (4-pin): 2
    • CPU power connector (4+4 pin): Yes
    • CPU power cable length: 65 cm
    • Cabling type: Fully-Modular

    Performance

    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • 80 PLUS certification: 80 PLUS Gold
    • ATX version: 3.1
    • EPS version: 2.92
    • Noise level: 20.8 dB
    • Bearing technology: Rifle
    • Mean time between failures (MTBF): 100000 h

    Design

    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 12 cm
    • Number of fans: 1 fan(s)
    • Fan speed: 0 - 1800 RPM
    • On/off switch: Yes

    Operational conditions

    • Operating temperature (T-T): 0 - 40 °C

    Packaging content

    • Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

    Certificates

    • Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus

    Weight & dimensions

    • Width: 150 mm
    • Depth: 160 mm
    • Height: 86 mm
    • Weight: 2.46 kg

    Packaging data

    • Package width: 210 mm
    • Package depth: 320 mm
    • Package height: 133 mm
    • Package weight: 3.2 kg

    Technical details

    • Sustainability certificates: ENERGY STAR, ErP

    Logistics data

    • Shipping (inner) case length: 58 cm
    • Shipping (inner) case width: 32.5 cm
    • Shipping (inner) case height: 23.3 cm
    • Products per shipping (inner) case: 6 pc(s)
    • Shipping (inner) case gross weight: 21.5 kg

    Other features

    • Screws included: Yes
    • Cable ties included: Yes
