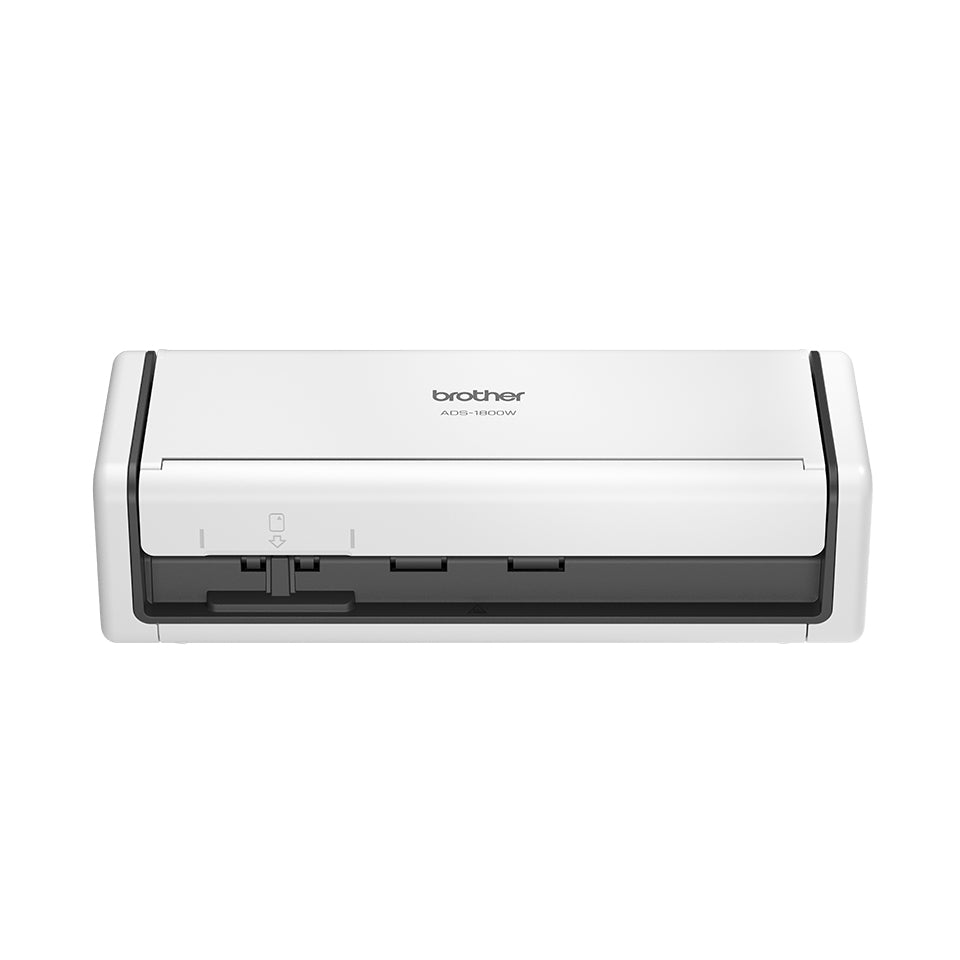

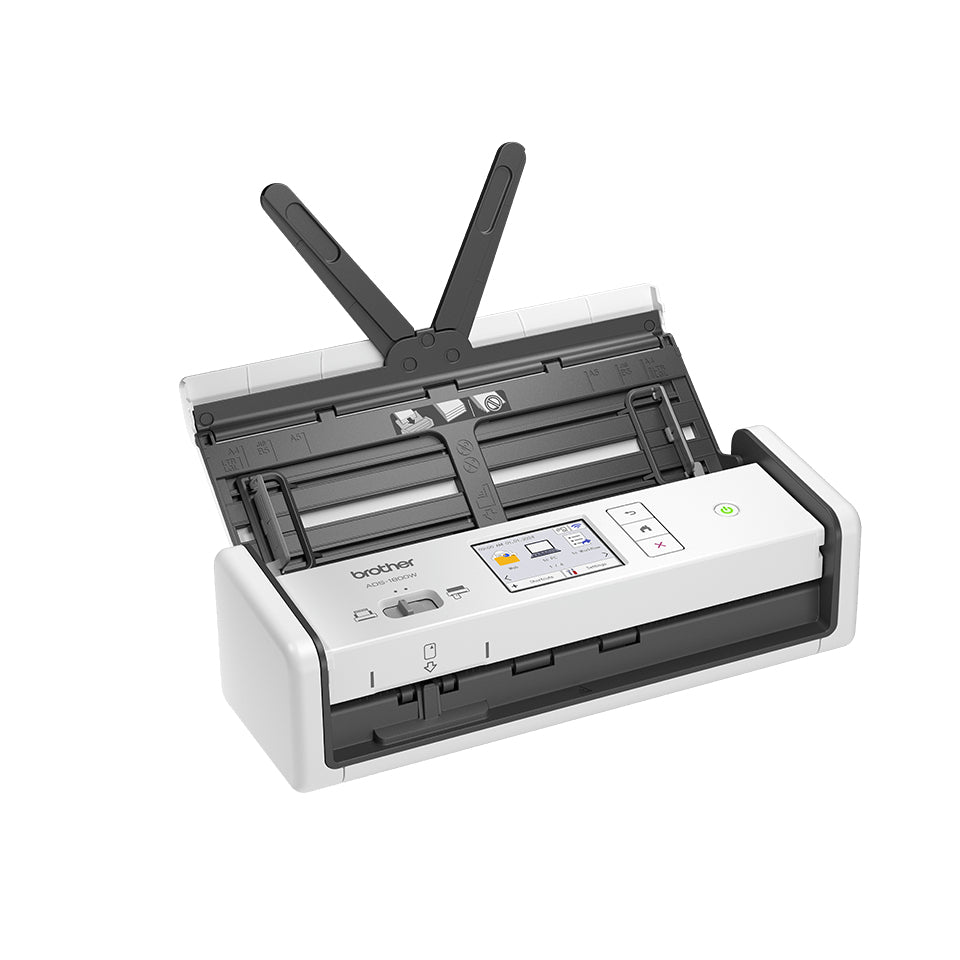

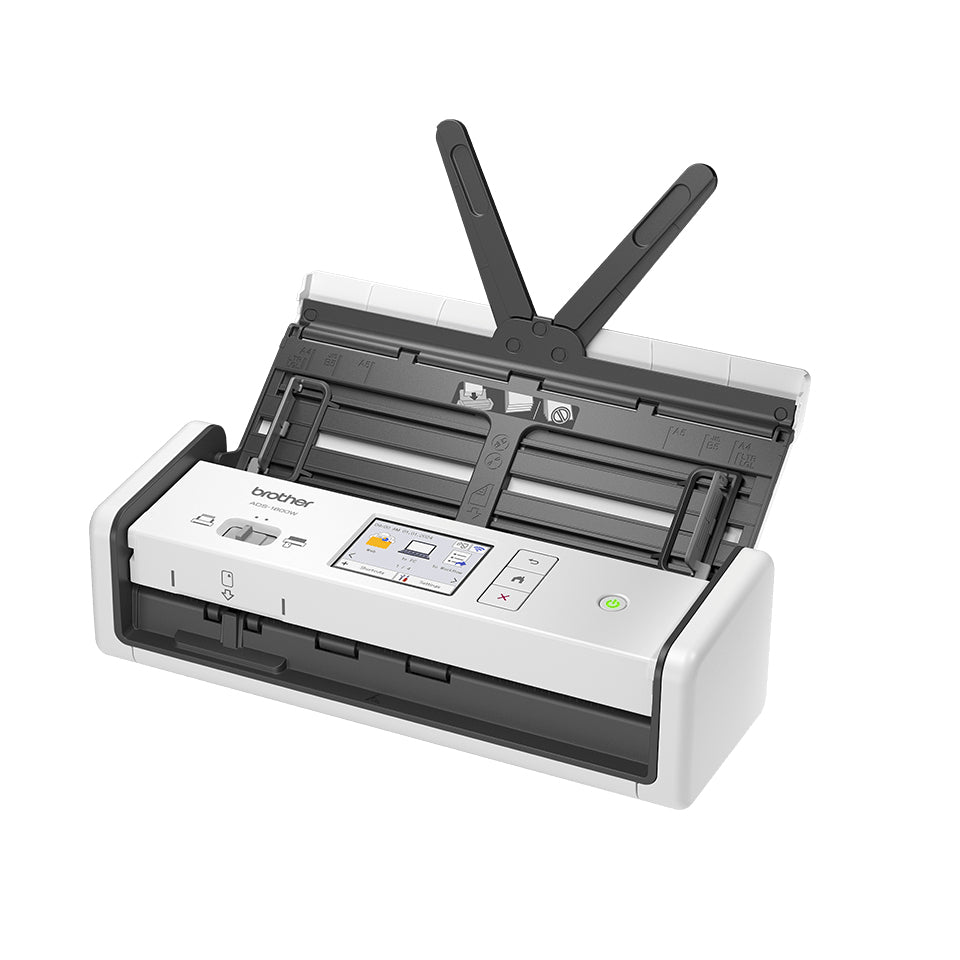

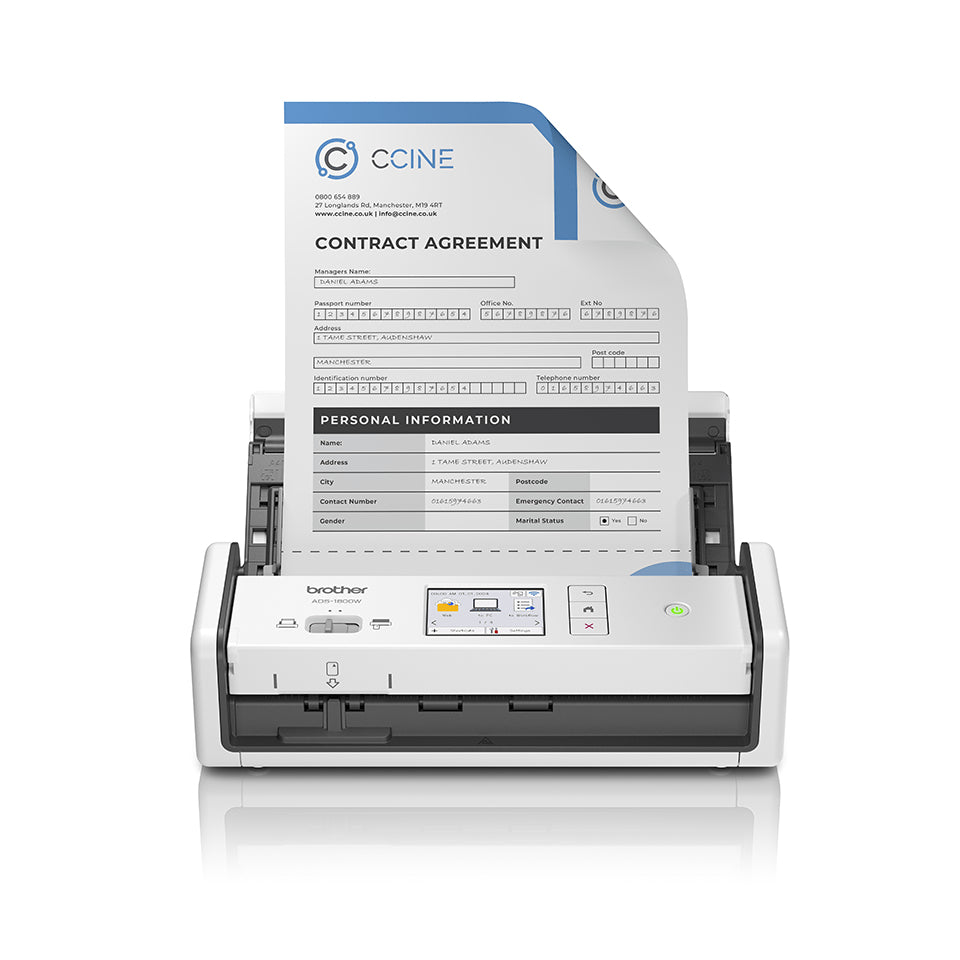

Overview Brother ADS-1800W. Maximum scan size: 215.9 x 355.6 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: ADF scanner, Product colour: White, Display: LCD. Sensor type: Dual CIS, Scan to: FTP, PC, SMB, Scan drivers: SANE, TWAIN, WIA. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, ISO A-series sizes (A0...A9): A4. USB connector type: USB Type-C
Specifications
Search the specifications
Scanning Maximum scan size 215.9 x 355.6 mm Optical scanning resolution 600 x 600 DPI Enhanced scan resolution 1200 x 1200 DPI Colour scanning Yes Duplex scanning Yes Greyscale levels 256 ADF scan speed (b/w, A4) 30 ppm
Design Scanner type ADF scanner Product colour White Display LCD Display diagonal 7.11 cm (2.8") Touchscreen Yes Colour display Yes Control type Buttons, Touch Built-in display Yes
Performance Sensor type Dual CIS Scan to FTP, PC, SMB Scan drivers SANE, TWAIN, WIA Scanning noise level 62 dB
Paper handling Scanning media types supported Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper Maximum ISO A-series paper size A4 ISO A-series sizes (A0...A9) A4 Card thickness (max) 1.24 mm Paper tray media weight 51.8 - 128 g/m²
Ports & interfaces USB port Yes USB connector type USB Type-C
Network Wi-Fi Yes Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n) Security algorithms 64-bit WEP, 128-bit WEP, EAP-TLS, EAP-TTLS, SMTP-AUTH, SNMPv3, SSH, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-TKIP, WPA3-PSK, WPA3-SAE IPv6 support Yes
Power Power supply type AC/USB Power consumption (typical) 10 W Power consumption (standby) 2 W Power consumption (off) 0.1 W
Weight & dimensions Width 288 mm Depth 101 mm Height 85 mm Weight 1.42 kg
System requirements Windows operating systems supported Windows 10, Windows 11 Mac operating systems supported Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions Operating temperature (T-T) 5 - 35 °C
Product details Part number ADS1800WZU1 Brand Brother Supplier description ADS-1800W COMPACT/PORT DOC SCNR 30PPM 600DPI 48BIT USB-C WHT EAN 4977766832274
