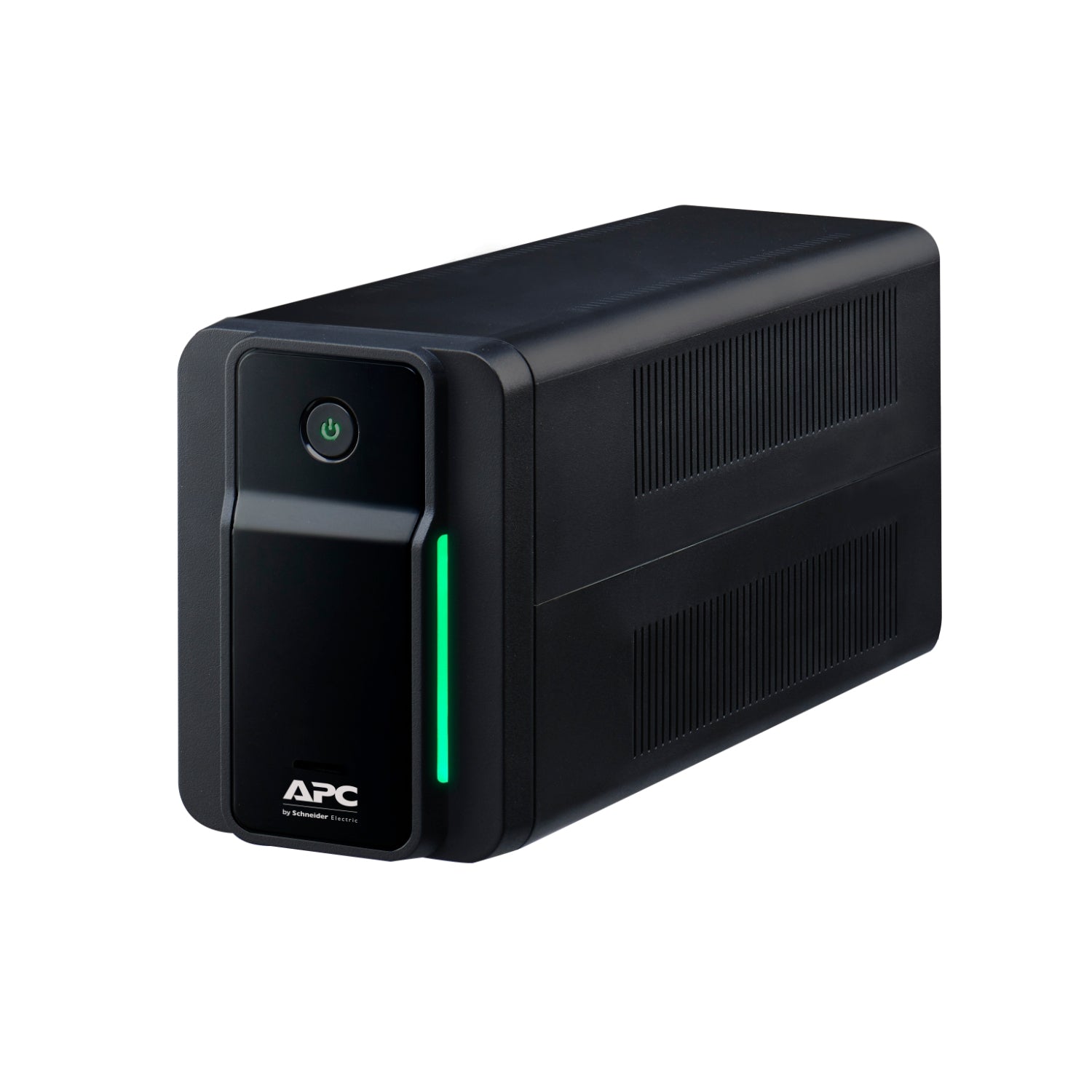

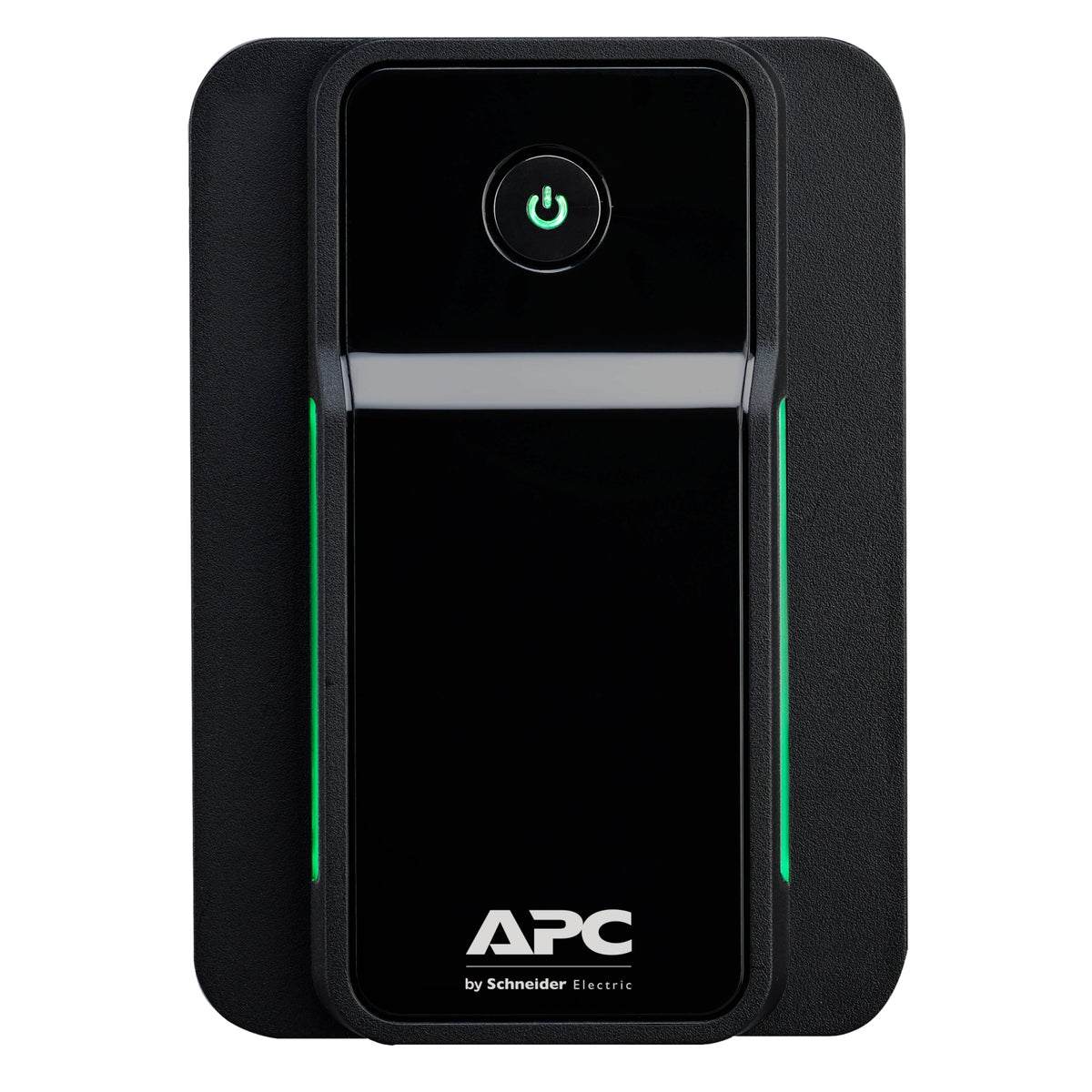

APC Back-UPS BX500MI 500VA/300W Line-Interactive UPS, 3 IEC C13, Tower
APC Back-UPS BX500MI 500VA/300W Line-Interactive UPS, 3 IEC C13, Tower
Part no.BX500MI
Regular price
£66.66ex VAT£79.99 inc VAT
Regular price
£0.00
Sale price
£66.66ex VAT£79.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use
Specifications
Features
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 0.5 kVA |
| Output power | 300 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Efficiency | 96.1% |
| Input power factor | 0.63 |
| Noise level | 40 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |

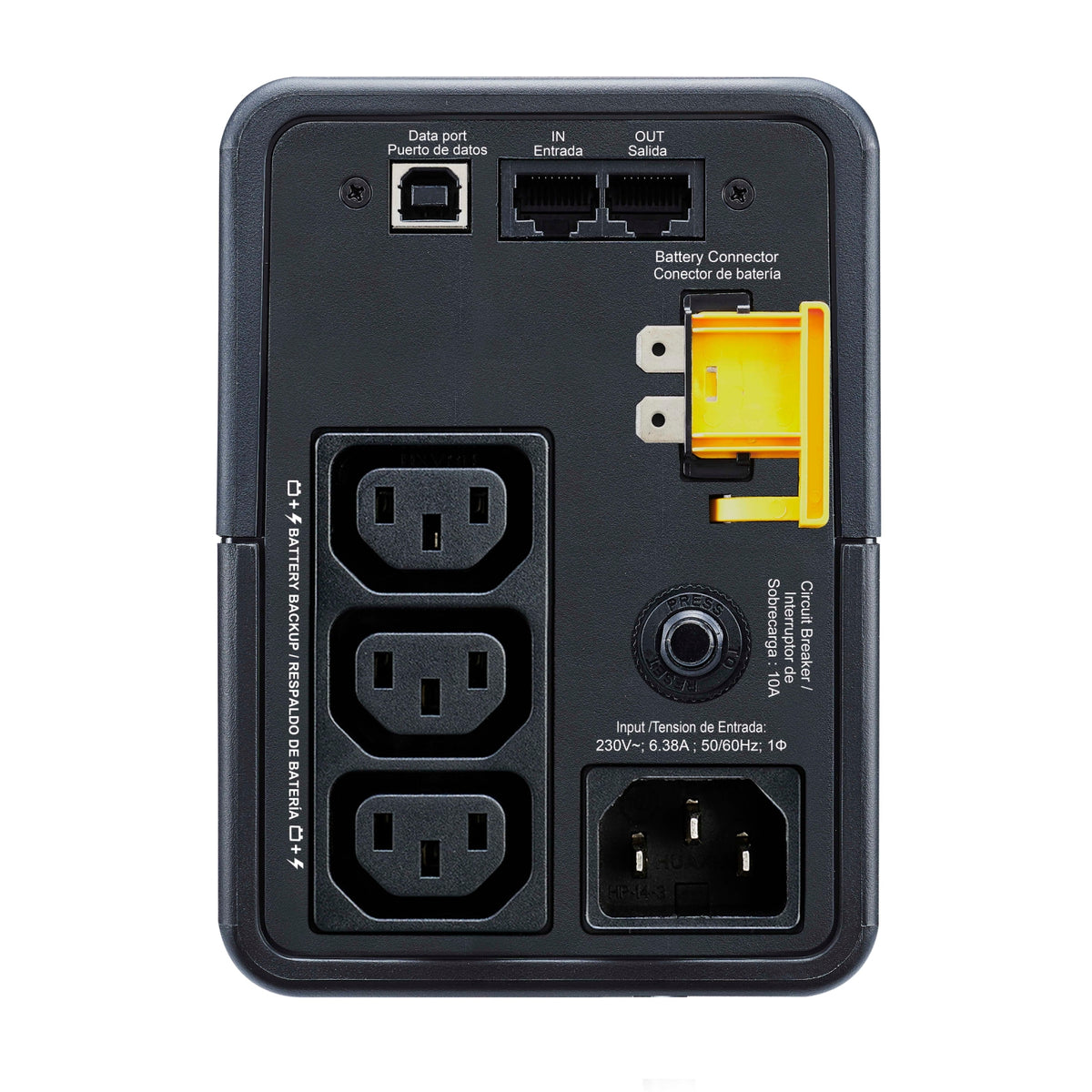

Ports & interfaces
| AC outlet types | C13 coupler |
|---|---|
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| Number of output IEC jumpers | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 12 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Automatic battery test | Yes |
Design
| Form factor | Tower |
|---|---|
| Product colour | Black |
| Cable length | 1.5 m |
| LED indicators | Battery replacement |
| International Protection (IP) code | IP20 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, EAC, EN/IEC 62040-1 |
Weight & dimensions
| Width | 98 mm |
|---|---|
| Depth | 310 mm |
| Height | 138 mm |
| Weight | 4.2 kg |
