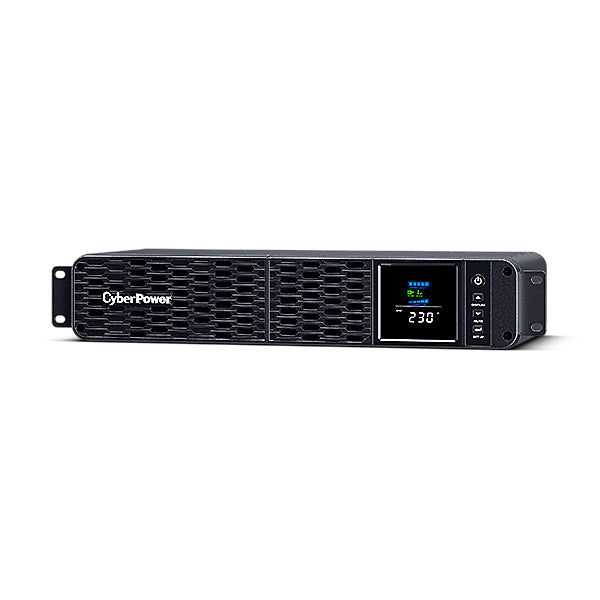

CyberPower CP1600EIPFCRM2U uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 1000 W 8 AC outlet(s)

Features

• UPS topology: Line-Interactive
• Output power capacity: 1.6 kVA
• Output power: 1000 W
• Waveform: Pure sine
• Input operation voltage (min): 169 V
• Input operation voltage (max): 271 V
• Input frequency: 50/60 Hz
• Output frequency: 50/60 Hz
• Output frequency regulation: 1 Hz
• Automatic Voltage Regulation (AVR): Yes
• Heat dissipation: 20.5 BTU/h
• Power factor: 0.625
• Power Factor Correction (PFC) type: Active
• ECO mode: Yes
• EMI/RFI noise filtering: Yes
• Surge protection: Yes
• Power protection features: Over voltage, Overload
• Power source type: AC
• Detachable power cord: Yes

Ports & interfaces

• AC outlet types: C13 coupler
• Power plug: C14 coupler
• AC outlets quantity: 8 AC outlet(s)
• USB port: Yes
• USB 2.0 ports quantity: 1
• USB port type: USB Type-B
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• RS-232 ports: 1
• Ethernet LAN (RJ-45) ports: 2

Battery

• Battery technology: Sealed Lead Acid (VRLA)
• Number of batteries supported: 1
• Typical backup time at full load: 2.5 min
• Typical backup time at half load: 10.4 min
• Hot-swap battery: Yes

Design

• Form factor: Rackmount
• Product colour: Black
• Housing material: Metal
• Rack capacity: 2U
• Cooling type: Active
• Built-in fan: Yes
• Control type: Buttons
• Display type: LCD
• LED indicators: Yes

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Operating relative humidity (H-H): 0 - 95%

Certificates

• Compliance certificates: CE, RoHS

Weight & dimensions

• Width: 433 mm
• Depth: 274 mm
• Height: 86 mm
• Weight: 20.5 kg

Other features

• Battery type: RBP0166
