Kingston ValueRAM 4GB DDR4 2666MT/s DIMM Desktop Memory
Kingston ValueRAM 4GB DDR4 2666MT/s DIMM Desktop Memory
Part no.KVR26N19S6/4
Regular price
£34.99ex VAT£41.99 inc VAT
Regular price
£0.00
Sale price
£34.99ex VAT£41.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview

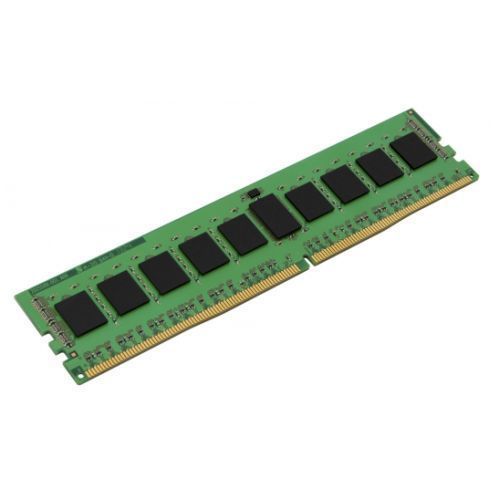

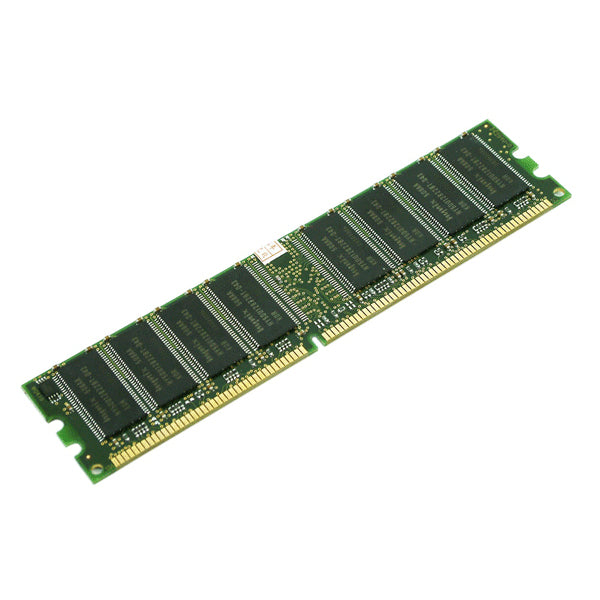

This document describes ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
Description
Specification
- Series: Kingston ValueRAM
- DDR Type: DDR4
- Size: 1 x 4GB
- #Hide#Individual Module Size: 4GB
- #Hide#Total Capacity: 4GB Total
- Speed: 2666 MHz
- Compliance: PC4-21300
- Pins: 288-pin
- CAS Latency: CL19
- Data Integrity Check: Non-ECC
- Voltage: 1.2V
- Timings: 19-19-19
- Heatsink: No
- #Hide#LED Lighting: No
- Additional Information: See Overview
- Package Type: Retail
- Package Weight: 0.0220 kg
- Warranty: Lifetime
