Overview Who it's for: Engineers, designers and finance teams who need workstation power in a box that fits behind a monitor. The Core Ultra 7 with 16GB and an NVIDIA RTX A400 handles CAD, large models and multiple 4K displays, and it ships with Windows 11 Pro. Memory is a single 16GB module, so add a second if the workload is heavy; three DisplayPorts drive three screens out of the box.

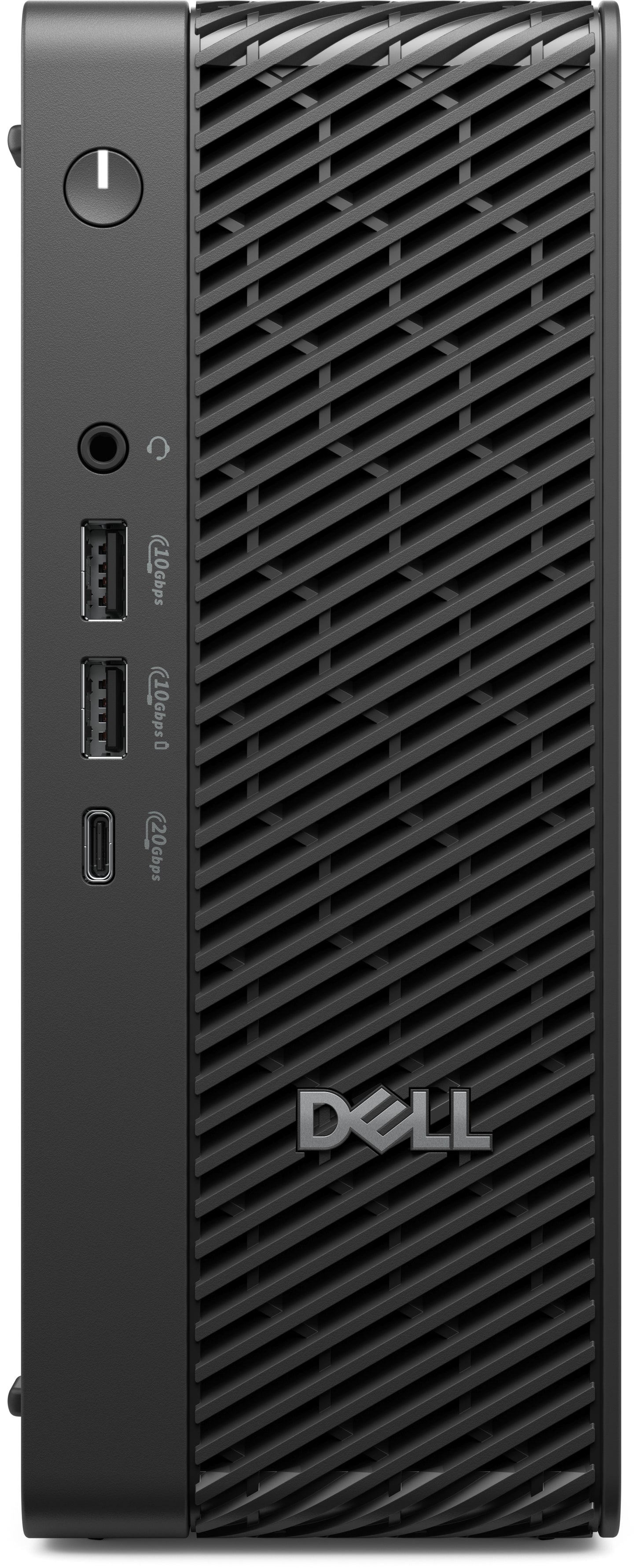

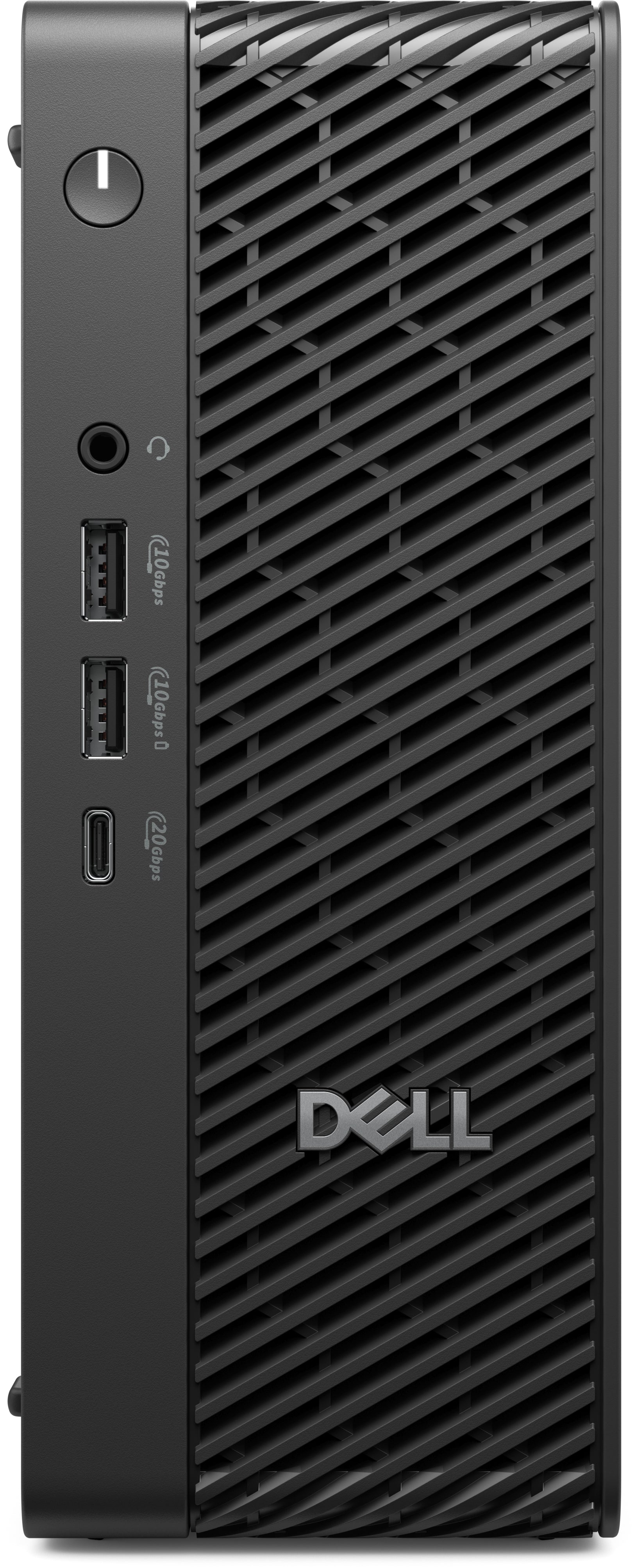

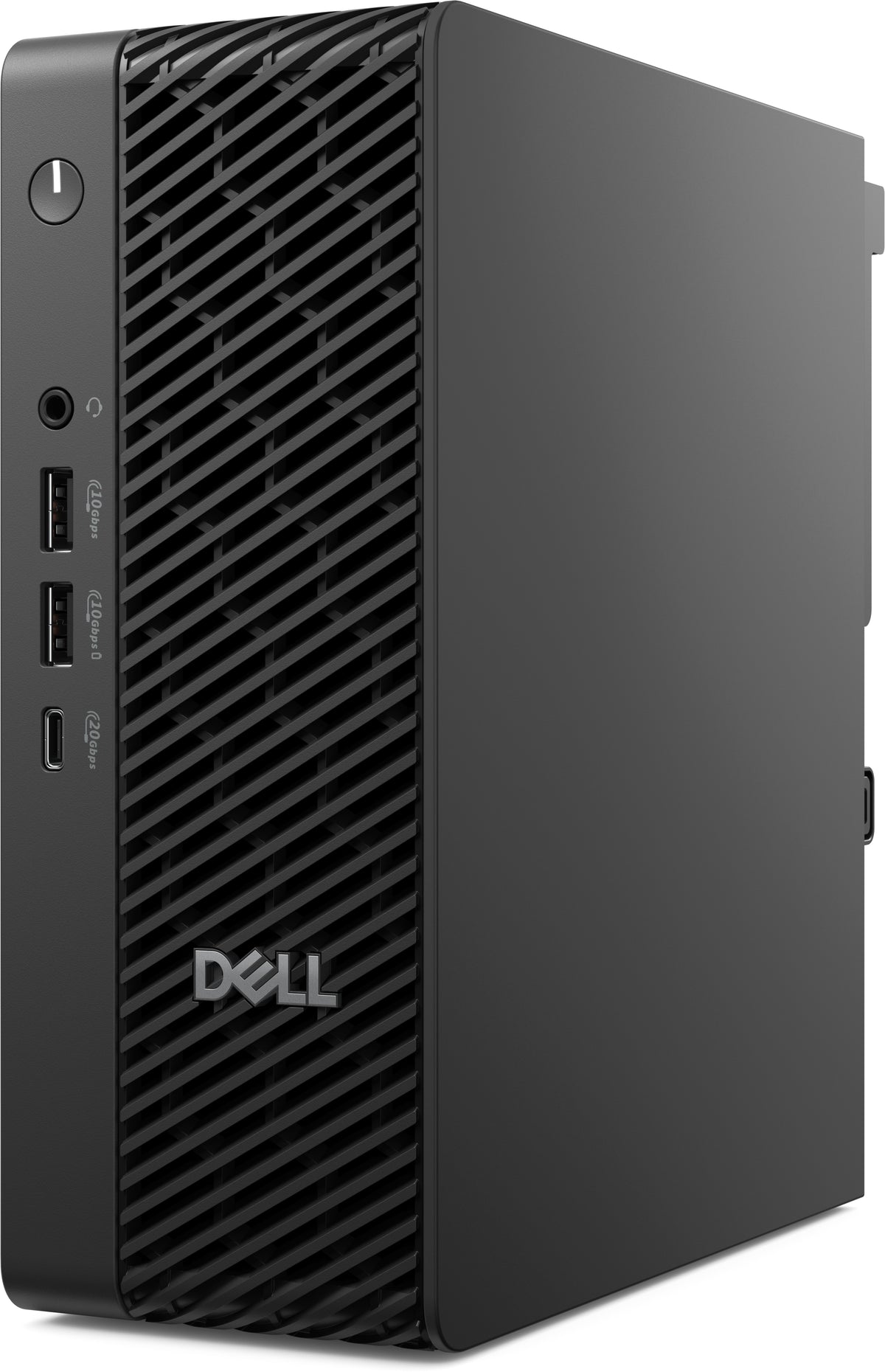

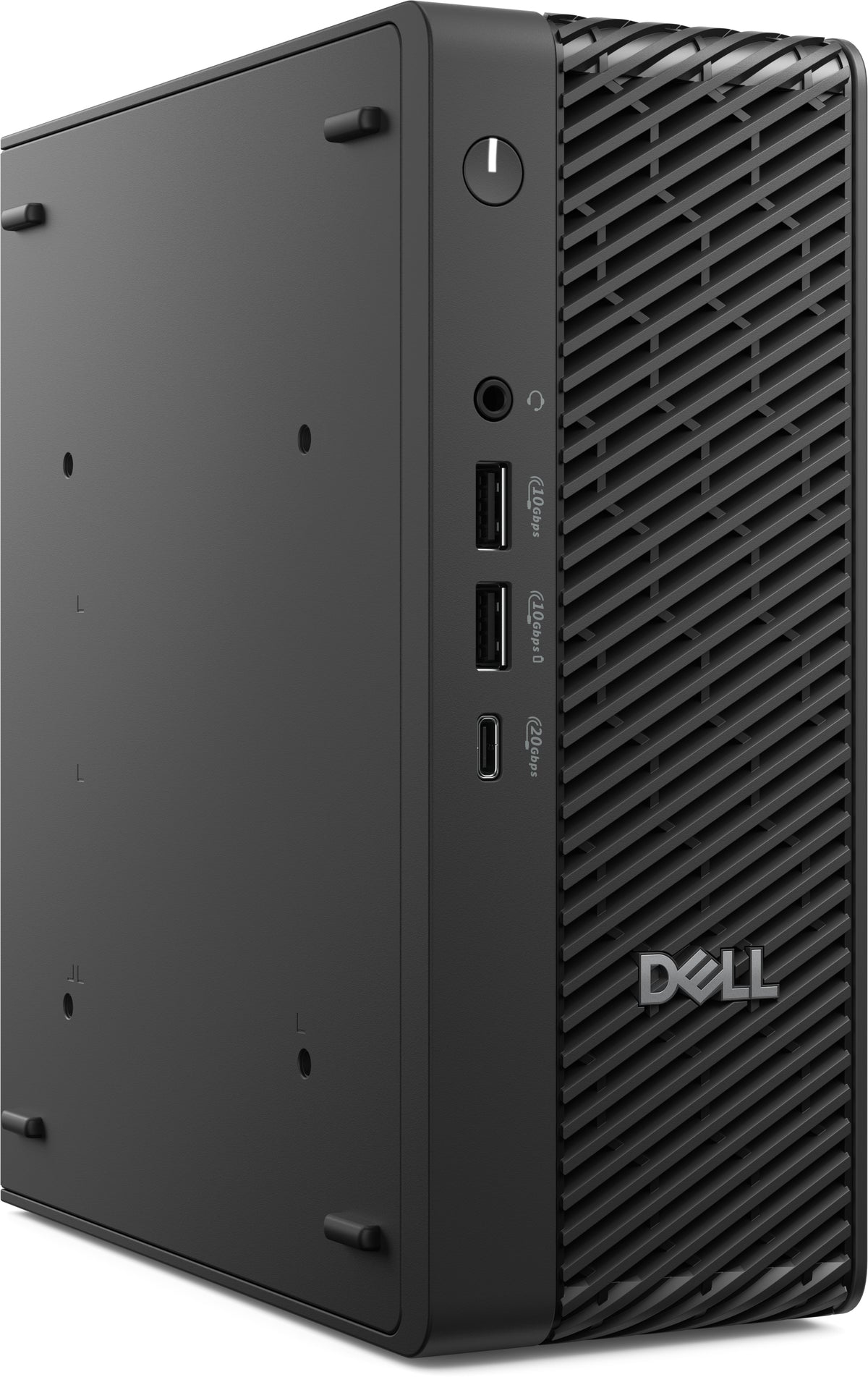

Engineered for those who demand exceptional power without sacrificing space, the Dell Pro Max Micro delivers top-tier speed and efficiency in a sleek, space-saving design.
Specifications
Search the specifications
Processor Processor family Intel Core Ultra 7 Processor manufacturer Intel Processor model 265 Processor generation Intel Core Ultra (Series 2) Processor cores 12 Processor threads 14 Processor boost frequency 5.3 GHz Performance cores 2 Efficient cores 8 Low Power Efficient-cores 2 Performance-core Max Turbo Frequency 5.3 GHz Efficient-core Max Turbo Frequency 4.2 GHz Low Power Efficient-core Max Turbo Frequency 2.4 GHz Performance-core base frequency 2.1 GHz Efficient-core base frequency 1.7 GHz Low Power Efficient-core Base Frequency 700 MHz Processor cache 12 MB Number of processors installed 1 Processor base power 15 W Maximum turbo power 57 W
Neural processor unit (NPU) Neural processor unit (NPU) Intel AI Boost Sparsity support Yes Windows Studio effects support Yes AI software frameworks supported by NPU DirectML, ONNX RT, OpenVINO, Windows ML
Memory Internal memory 16 GB Maximum internal memory 64 GB Internal memory type DDR5-SDRAM Memory layout (slots x size) 1 x 16 GB Memory slots 2x SO-DIMM Non-ECC Yes Memory data transfer rate 5600 MT/s
Storage Total storage capacity 512 GB Optical drive type No Storage media SSD Number of storage drives installed 1 Total SSDs capacity 512 GB Number of SSDs installed 1 SSD capacity 512 GB SSD memory type TLC SSD interface PCI Express 4.0 NVMe Yes SSD form factor M.2 M.2 SSD size 2280 (22 x 80 mm)
Graphics Discrete graphics card Yes On-board graphics card Yes Discrete graphics card model NVIDIA RTX A400 On-board graphics card model Intel Graphics Discrete GPU manufacturer NVIDIA Discrete graphics card memory 4 GB Discrete graphics memory type GDDR6 Number of discrete graphics cards 1 On-board GPU manufacturer Intel On-board graphics card family Intel Graphics Graphics card Mini DisplayPort ports quantity 4
Network Ethernet LAN Yes Wi-Fi Yes Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000Base-T(X) LAN controller Intel® I219-LM Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) WLAN controller manufacturer Intel WLAN controller model Intel Wi-Fi 7 BE200 Bluetooth Yes

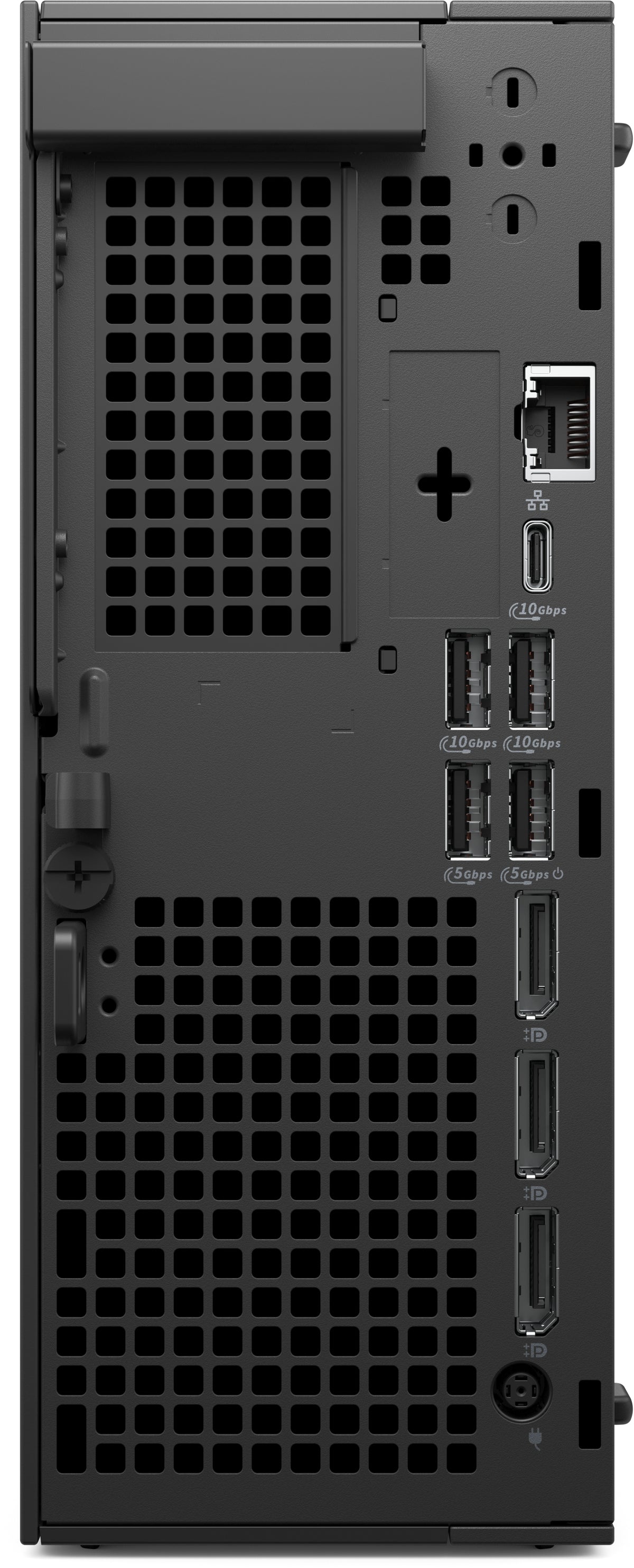

Ports & interfaces USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB 3.2 Gen 2x2 Type-C ports quantity 1 DisplayPorts quantity 3 DisplayPort version 1.4a Ethernet LAN (RJ-45) ports 1 Combo headphone/mic port Yes
Expansion slots PCI Express x8 (Gen 4.x) slots 2
Design Chassis type Micro PC Product colour Black Placement supported Horizontal/Vertical Cable lock slot Yes Cable lock slot type Kensington Intel® vPro™ Platform Eligibility Yes
Performance Product type Mini PC Audio chip Realtek ALC3204 Audio system High Definition Audio Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0
Software Operating system installed Windows 11 Pro Operating system architecture 64-bit Trial software Activate Your Microsoft 365 For A 30 Day Trial
Power Power supply 280 W Power supply input voltage 100 - 240 V Power supply input frequency 50/60 Hz
Operational conditions Operating temperature (T-T) 0 - 35 °C Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 0 - 95% Operating altitude -15.2 - 3048 m Non-operating altitude -15.2 - 10668 m Operating vibration 0.66 G Non-operating vibration 1.3 G Operating shock 110 G Non-operating shock 160 G
Sustainability Sustainability certificates ENERGY STAR
Weight & dimensions Width 79.3 mm Depth 178 mm Height 206 mm Weight 2.54 kg
Carbon footprint Total carbon footprint (kg of CO2e) 183 Carbon emissions, manufacturing (kg of CO2e) 63.318 Carbon emissions, logistics (kg of CO2e) 3.66 Carbon emissions, energy usage (kg of CO2e) 114.741 Carbon emissions, end-of-life (kg of CO2e) 1.28 PAIA version GaBi version 1, 2024
Display
In the box
Mouse included on selected markets: Dell Optical Mouse-MS116 - Black Keyboard included on selected markets: Dell Wired Keyboard - KB216 - UK (QWERTY) - Black Cables included: AC
