Overview Specifications Specs In the box Delivery & returns Delivery
Swipe for more

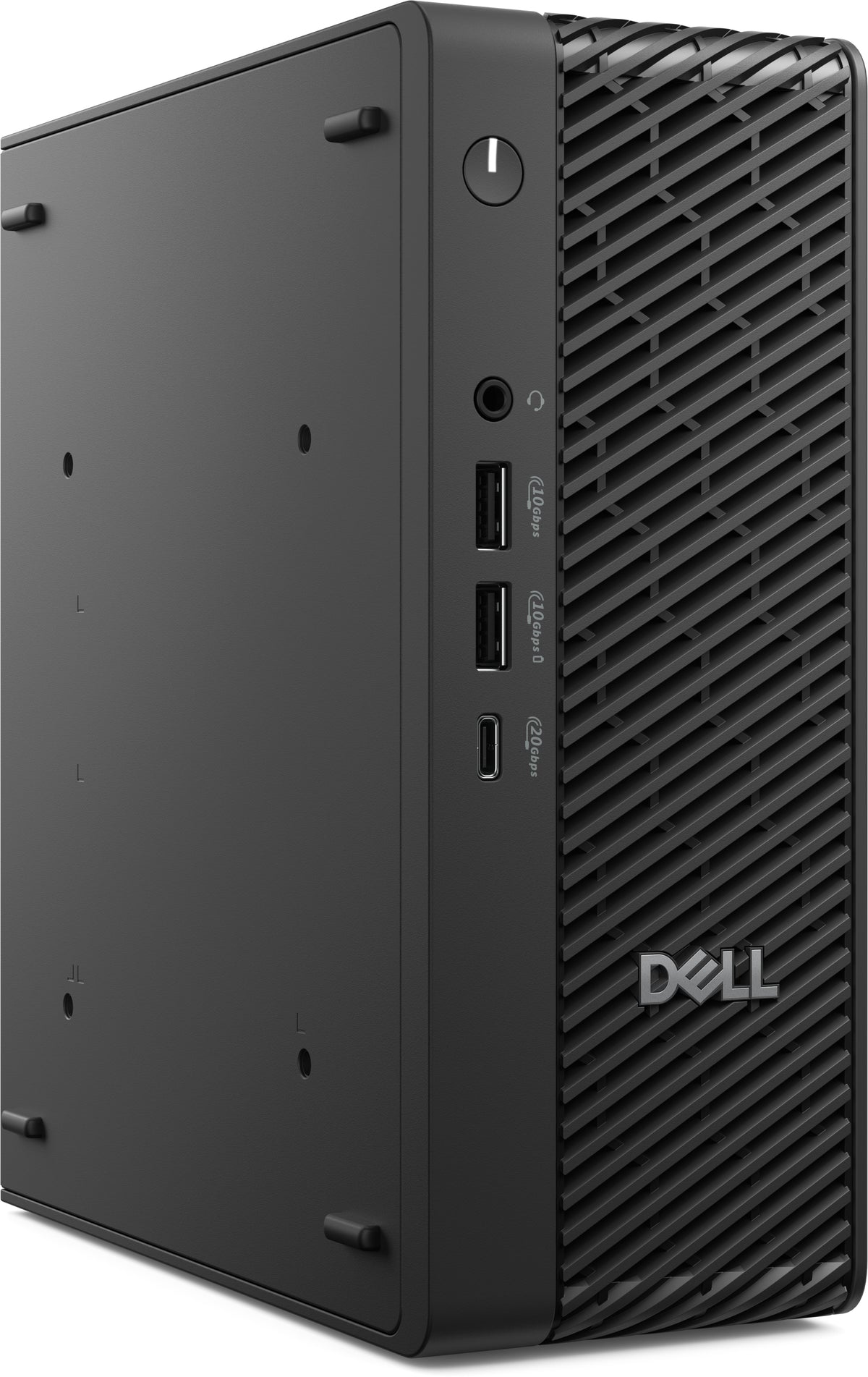

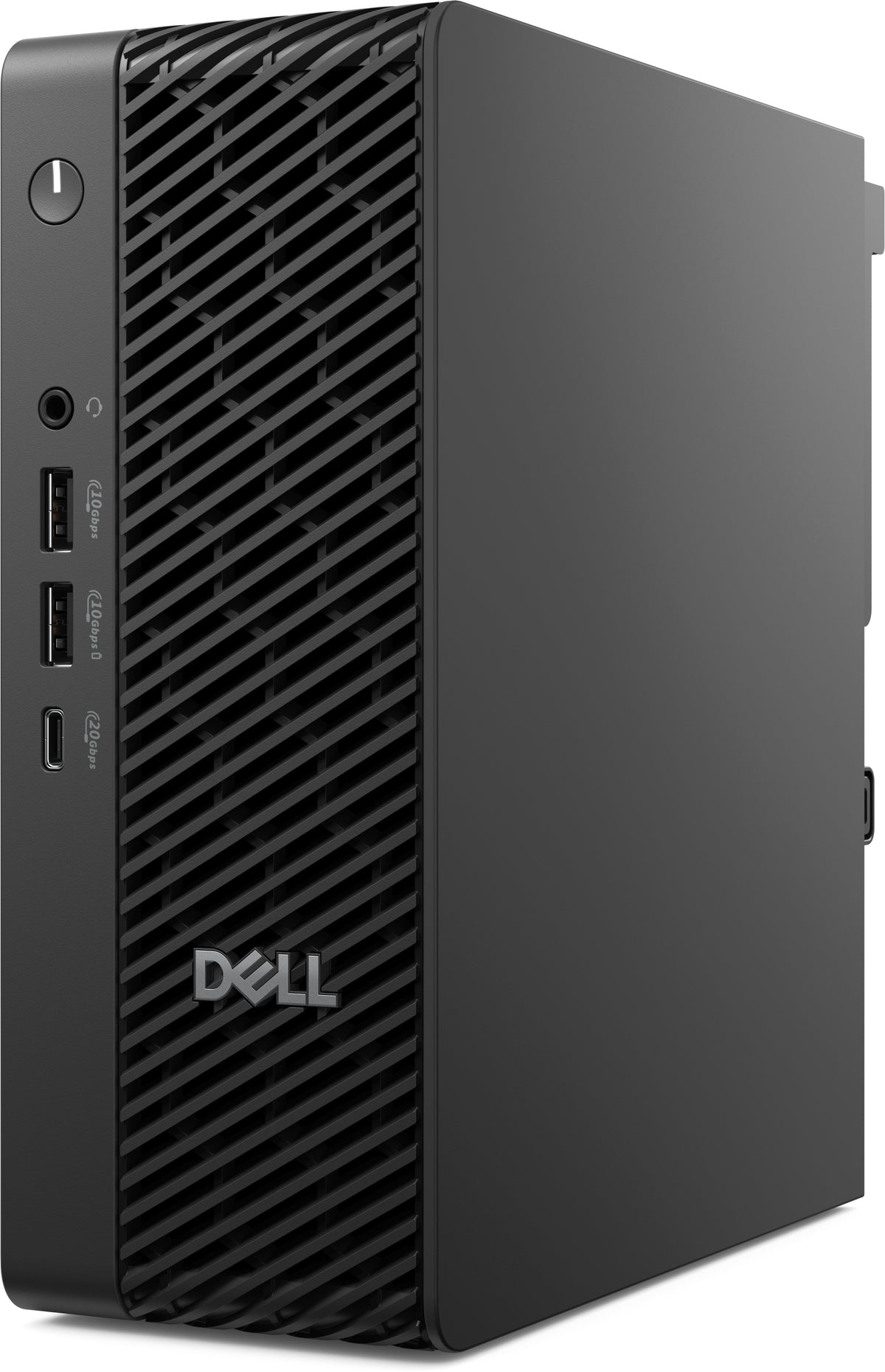

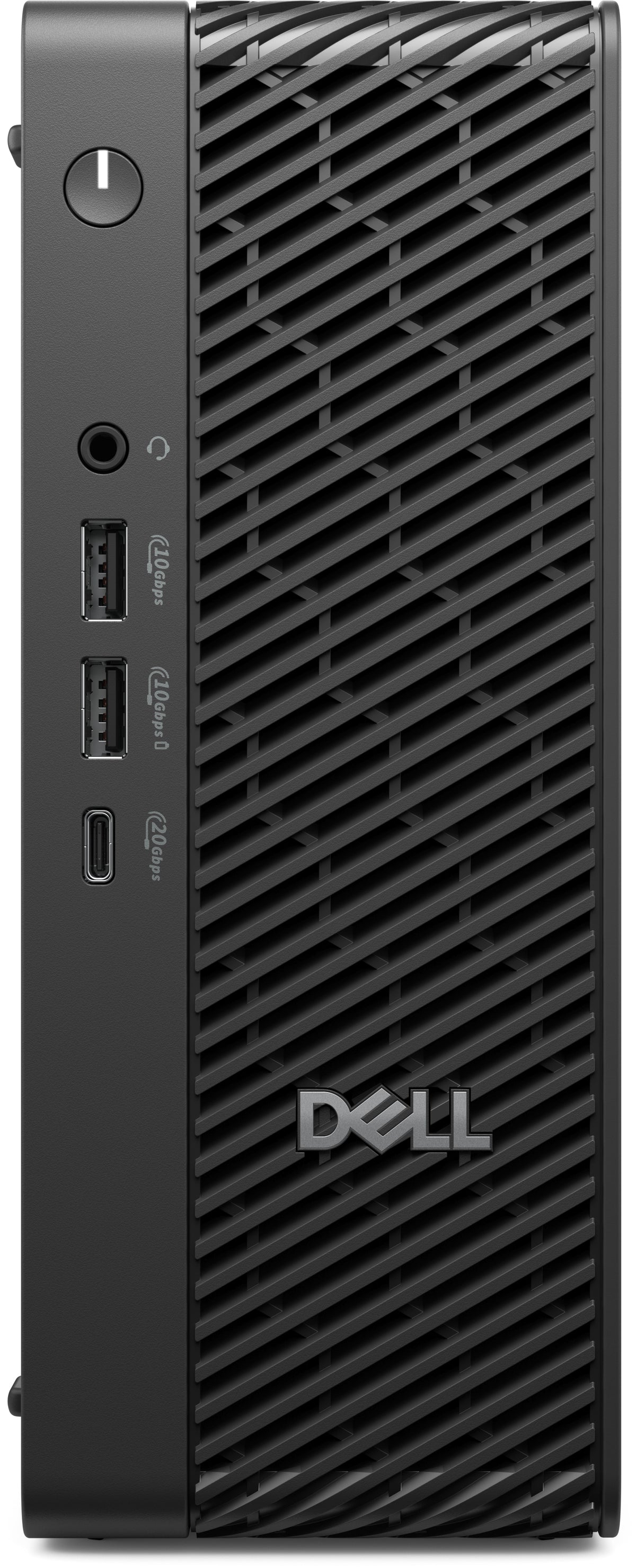

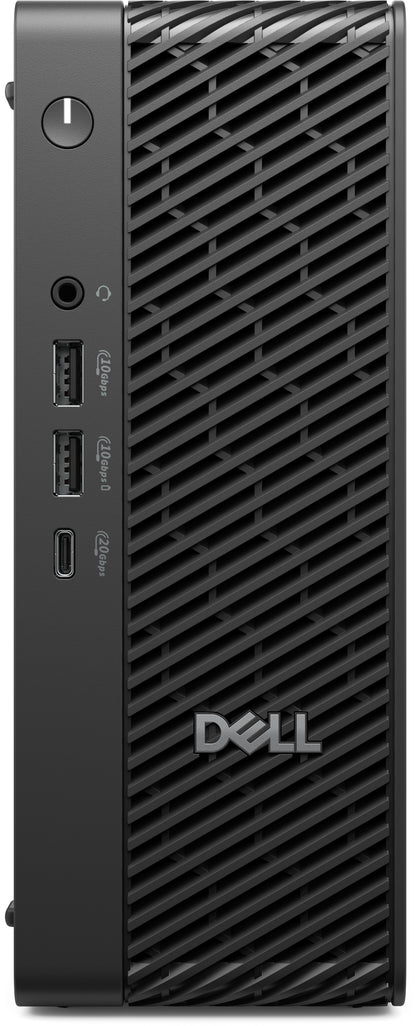

Overview Engineered for those who demand exceptional power without sacrificing space, the Dell Pro Max Micro delivers top-tier speed and efficiency in a sleek, space-saving design.
Specifications
Search the specifications
Processor Processor manufacturer Intel Processor family Intel Core Ultra 7 Processor generation Intel Core Ultra (Series 2) Processor model 265 Processor cores 20 Processor threads 20 Processor boost frequency 5.3 GHz Performance cores 8 Efficient cores 12 Performance-core Max Turbo Frequency 5.2 GHz Efficient-core Max Turbo Frequency 4.6 GHz Performance-core base frequency 2.4 GHz Efficient-core base frequency 1.8 GHz Processor cache 30 MB Processor cache type Smart Cache Number of processors installed 1 Processor base power 65 W Maximum turbo power 182 W
Neural processor unit (NPU) Neural processor unit (NPU) Intel AI Boost Sparsity support Yes Windows Studio effects support Yes AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN Total processor performance up to 33 TOPs NPU performance up to 13 TOPs GPU performance up to 8 TOPs
Memory Internal memory 32 GB Maximum internal memory 64 GB Internal memory type DDR5-SDRAM Memory layout (slots x size) 1 x 32 GB Memory slots 2x SO-DIMM Non-ECC Yes Memory data transfer rate 6400 MT/s
Storage Total storage capacity 1 TB Storage media SSD Optical drive type No Number of storage drives installed 1 Total SSDs capacity 1 TB Number of SSDs installed 1 SSD capacity 1 TB SSD memory type TLC SSD interface PCI Express 4.0 NVMe Yes SSD form factor M.2 M.2 SSD size 2280 (22 x 80 mm) Self-Encrypting Drive (SED) Yes
Graphics Discrete graphics card No On-board graphics card Yes Discrete graphics card model Not available On-board GPU manufacturer Intel On-board graphics card family Intel® Graphics On-board graphics card model Intel® Graphics
Performance Trusted Platform Module (TPM) Yes Product type Mini PC Trusted Platform Module (TPM) version 2.0
Network Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000Base-T(X) LAN controller Intel® I219-LM Wi-Fi Yes Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) WLAN controller manufacturer Intel WLAN controller model Intel Wi-Fi 7 BE200 Antenna design Internal Bluetooth Yes MU-MIMO Yes

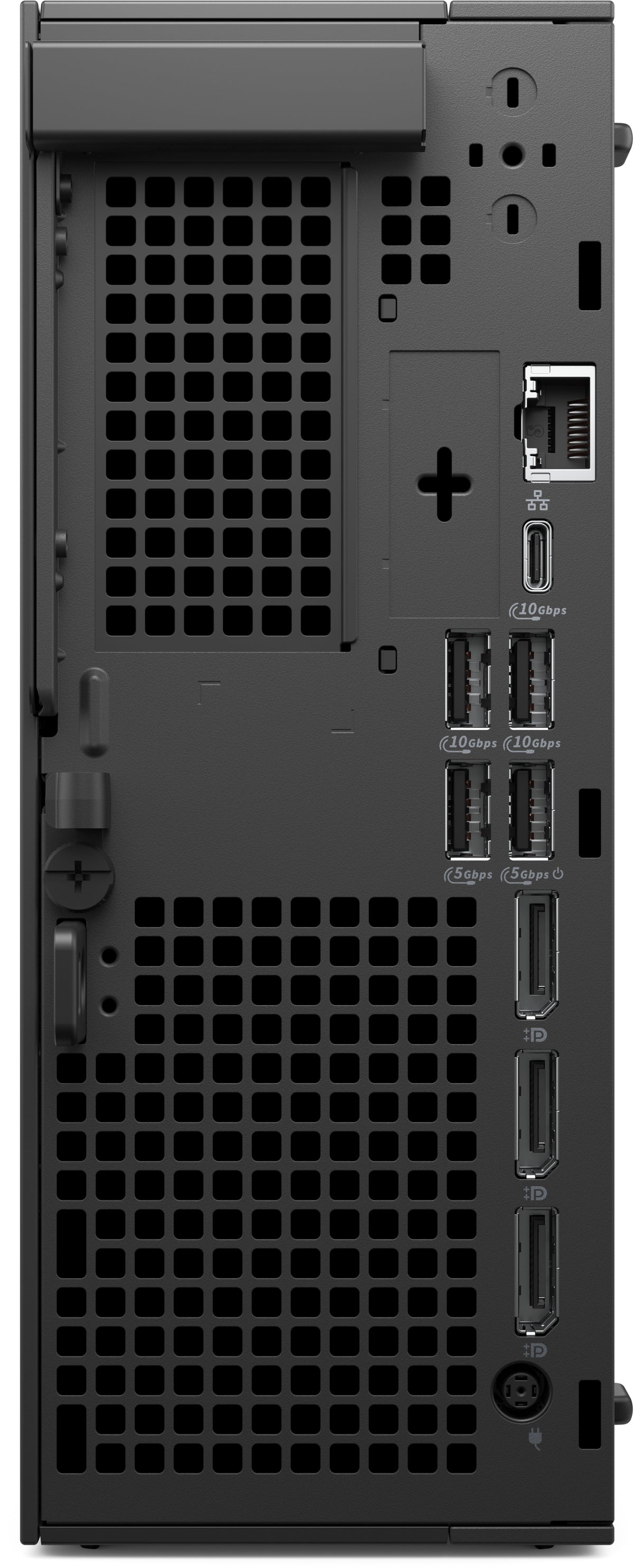

Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB 3.2 Gen 2x2 Type-C ports quantity 1 DisplayPorts quantity 3 DisplayPort version 1.4a Ethernet LAN (RJ-45) ports 1 Combo headphone/mic port Yes DC-in jack Yes Power adapter barrel connector 7.4 mm
Expansion slots PCI Express x8 (Gen 4.x) slots 2
Power Power supply 280 W Power supply input voltage 100 - 240 V Power supply input frequency 50/60 Hz
Design Chassis type Micro PC Placement supported Horizontal/Vertical Cable lock slot Yes Cable lock slot type Kensington Product colour Black Intel® vPro™ Platform Eligibility Yes
Software Operating system architecture 64-bit Operating system installed Windows 11 Pro Trial software Activate Your Microsoft 365 For A 30 Day Trial
Display Audio Audio chip Realtek ALC3204 Audio system High Definition Audio
Operational conditions Operating temperature (T-T) 0 - 35 °C Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 0 - 95% Operating altitude -15.2 - 3048 m Non-operating altitude -15.2 - 10668 m Operating vibration 0.66 G Non-operating vibration 1.3 G Operating shock 110 G Non-operating shock 160 G
Weight & dimensions Width 79.3 mm Depth 178 mm Height 206 mm Weight 2.54 kg
Sustainability Sustainability certificates ENERGY STAR, TCO, EPEAT
Carbon footprint Total carbon footprint (kg of CO2e) 183 Carbon emissions, manufacturing (kg of CO2e) 63.32 Carbon emissions, logistics (kg of CO2e) 3.66 Carbon emissions, energy usage (kg of CO2e) 114.74 Carbon emissions, end-of-life (kg of CO2e) 1.28 PAIA version GaBi version 1, 2024
Product details Part number 1HM31 Brand DELL Supplier description SPL PRO MAX MICRO FCM2250 TPM U7-265 32GB 1TB SSD W11P EAN 5397184937082
In the box
Mouse included on selected markets: Dell Wired Mouse - MS116 - Black Keyboard included on selected markets: Dell Wired Keyboard - KB216 - UK (QWERTY) - Black Cables included: AC
