Overview Power your design and creative applications, anywhere
Specifications
Search the specifications
Design Product type Laptop Product colour Black Form factor Clamshell
Display Display diagonal 40.6 cm (16") Display resolution 1920 x 1200 pixels Touchscreen No HD type Full HD+ Panel type WVA Native aspect ratio 16:10 Anti-glare screen Yes Display brightness 400 cd/m² RGB colour space NTSC Colour gamut 45% Display response rise/fall 35 ms Maximum refresh rate 60 Hz Contrast ratio (typical) 1000:1
Processor Processor manufacturer Intel Processor family Intel Core Ultra 9 Processor generation Intel® Core™ Ultra (Series 3) Processor model 386H Processor cores 16 Processor threads 16 Processor boost frequency 4.9 GHz Performance cores 4 Efficient cores 8 Low Power Efficient-cores 4 Performance-core Max Turbo Frequency 4.9 GHz Efficient-core Max Turbo Frequency 3.7 GHz Low Power Efficient-core Max Turbo Frequency 3.5 GHz Performance-core base frequency 2.1 GHz Efficient-core base frequency 1.6 GHz Low Power Efficient-core Base Frequency 1600 MHz Processor cache 18 MB Processor cache type Smart Cache Processor socket FCBGA2540 Processor base power 25 W Maximum turbo power 80 W
Neural processor unit (NPU) Copilot+ PC Yes Neural processor unit (NPU) Intel AI Boost Sparsity support Yes Windows Studio effects support Yes AI software frameworks supported by NPU OpenVINO, Windows ML, ONNX RT, WebNN NPU performance up to 50 TOPs GPU performance up to 40 TOPs
Memory Internal memory 64 GB Internal memory type LPDDR5x-SDRAM Memory form factor LPCAMM2 Memory layout (slots x size) 1 x 64 GB Maximum internal memory 64 GB Memory channels Dual-channel Memory data transfer rate 8533 MT/s
Storage Total storage capacity 1 TB Storage media SSD Total SSDs capacity 1 TB Number of SSDs installed 1 SSD capacity 1 TB SSD interface PCI Express 5.0 NVMe Yes SSD form factor M.2 M.2 SSD size 2280 (22 x 80 mm) Optical drive type No Card reader integrated Yes Compatible memory cards MicroSD (TransFlash)
Graphics Discrete GPU manufacturer NVIDIA Discrete graphics card model NVIDIA RTX PRO 2000 Blackwell Discrete graphics card memory 8 GB Discrete graphics memory type GDDR7 On-board graphics card Yes On-board GPU manufacturer Intel Discrete graphics card Yes On-board graphics card family Intel® Graphics On-board graphics card model Intel® Graphics Ray tracing acceleration Yes
Audio Number of built-in speakers 2 Speaker power 5 W Built-in microphone Yes
Camera Front camera Yes Front camera resolution (numeric) 8.29 MP Front camera resolution 2560 x 1440 pixels Front camera HD type Quad HD Video capturing speed 30 fps Infrared (IR) camera Yes Privacy camera Yes Privacy type Privacy shutter
Network Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) Mobile network connection No Wi-Fi band Tri-band (2.4 GHz / 5 GHz / 6 GHz) Wi-Fi data rate (max) 5760 Mbit/s WLAN controller model Intel Wi-Fi 7 BE211 WLAN controller manufacturer Intel Ethernet LAN Yes Ethernet LAN data rates 10,100,1000 Mbit/s Bluetooth Yes
Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 Thunderbolt 4 ports quantity 2 Intel® Thunderbolt 4 Yes Combo headphone/mic port Yes USB Type-C DisplayPort Alternate Mode Yes PowerShare Yes

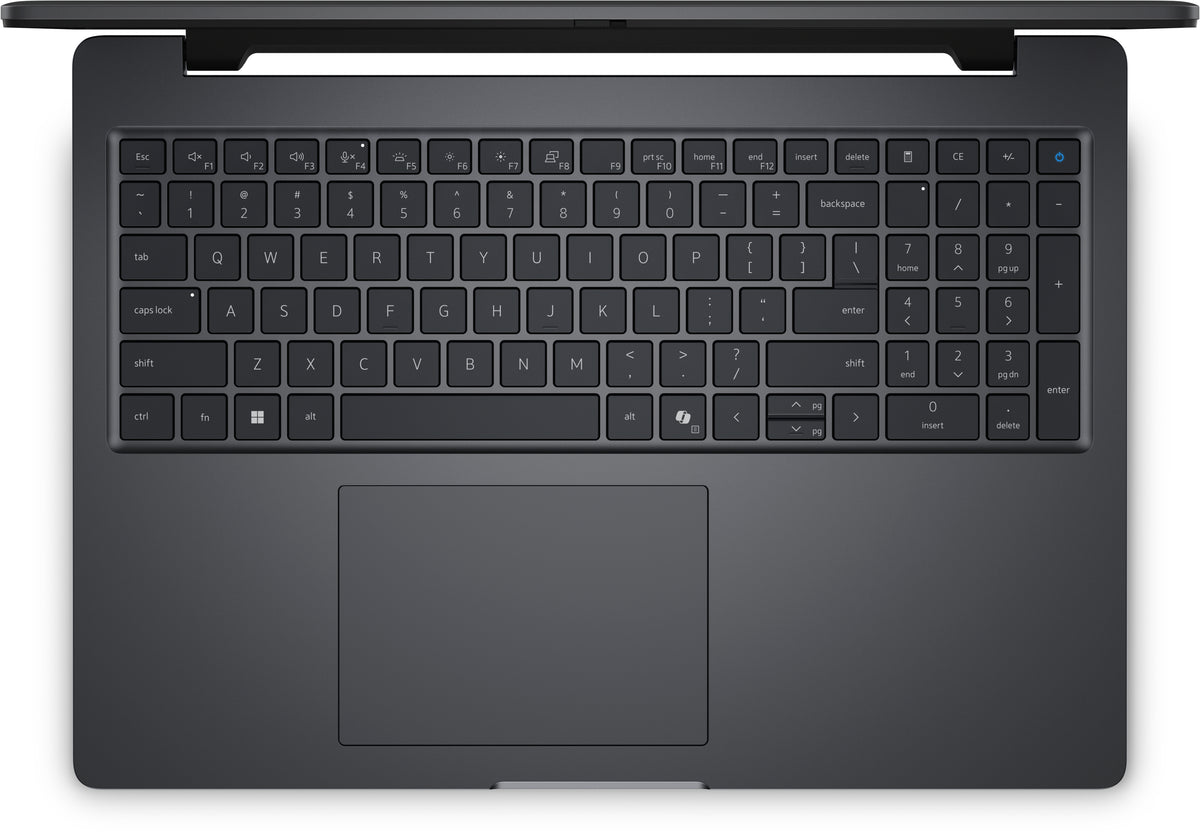

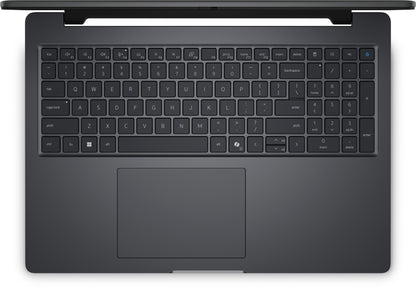

Keyboard Pointing device Touchpad Numeric keypad Yes Keyboard backlit Yes Keyboard language UK English Copilot key Yes
Software Operating system language English, Dutch, French, German, Italian Trial software Activate Your Microsoft 365 For A 30 Day Trial Operating system installed Windows 11 Pro
Brand-specific features Brand specific technologies HDR Camera, Control Vault 3+, Presence Detection, Express Charge Boost capable, TNR
Battery Battery technology Lithium Polymer (LiPo) Number of battery cells 6 Battery capacity 96 Wh Battery voltage 11.7 V Battery weight 220 g
Power AC adapter frequency 50 - 60 Hz AC adapter input voltage 100 - 240 V USB Type-C charging port Yes USB Type-C required charging power (min) 27 W USB Type-C required charging power (max) 59 W USB Power Delivery (USB PD) Yes
Security Cable lock slot Yes Cable lock slot type Wedge Dell ControlVault Yes
Operational conditions Operating temperature (T-T) 0 - 35 °C Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 0 - 95% Operating altitude -15.2 - 3048 m Non-operating altitude -15.2 - 10668 m Operating shock 110 G Non-operating shock 160 G Operating vibration 0.66 G Non-operating vibration 1.3 G
Weight & dimensions Width 358 mm Depth 256 mm Height (front) 1.38 cm Height (rear) 1.84 cm Weight 2.16 kg
Product details Part number 4VJK9 Brand DELL Supplier description PW516261 PRO PRECISION5 U9-386H 16IN 64GB 1TB W11P 3Y EAN 5397321036869
