Overview Big power. Small footprint.
Specifications
Search the specifications
Processor Processor family Intel Core Ultra 7 Processor manufacturer Intel Processor model 265 Processor generation Intel Core Ultra (Series 2) Processor cores 20 Processor threads 20 Processor boost frequency 5.3 GHz Performance cores 8 Efficient cores 12 Performance-core Max Turbo Frequency 5.2 GHz Efficient-core Max Turbo Frequency 4.6 GHz Performance-core base frequency 2.4 GHz Efficient-core base frequency 1.8 GHz Processor cache 30 MB Processor cache type Smart Cache Number of processors installed 1 Processor base power 65 W Maximum turbo power 182 W
Neural processor unit (NPU) Neural processor unit (NPU) Intel AI Boost Sparsity support Yes Windows Studio effects support Yes AI software frameworks supported by NPU DirectML, OpenVINO, Windows ML, ONNX RT, WebNN Total processor performance up to 33 TOPs NPU performance up to 13 TOPs GPU performance up to 8 TOPs
Memory Internal memory 16 GB Maximum internal memory 64 GB Internal memory type DDR5-SDRAM Memory layout (slots x size) 1 x 16 GB Memory slots 2x SO-DIMM Non-ECC Yes Memory channels Single-channel Memory data transfer rate 5600 MT/s
Storage Total storage capacity 512 GB Optical drive type No Storage media SSD Number of storage drives installed 1 Total SSDs capacity 512 GB Number of SSDs installed 1 SSD capacity 512 GB SSD memory type TLC SSD interface PCI Express 4.0 NVMe Yes SSD form factor M.2
Graphics Discrete graphics card No On-board graphics card Yes Discrete graphics card model Not available On-board graphics card model Intel Graphics On-board GPU manufacturer Intel On-board graphics card family Intel Graphics
Network Ethernet LAN Yes Wi-Fi Yes Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000Base-T(X) LAN controller Intel WGI219LM Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) WLAN controller manufacturer Intel WLAN controller model Intel Wi-Fi 6E AX211 Antenna type 2x2 Antenna design Internal Bluetooth Yes

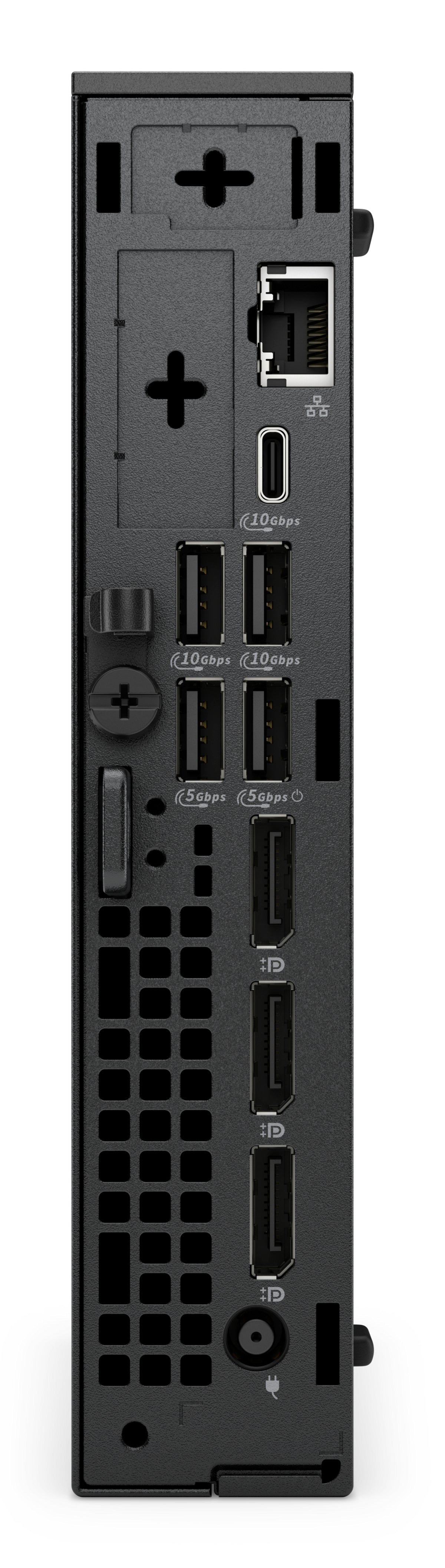

Ports & interfaces USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Thunderbolt 3 ports quantity 0 HDMI ports quantity 0 USB 3.2 Gen 2x2 Type-C ports quantity 1 DisplayPorts quantity 3 DisplayPort version 1.4a Ethernet LAN (RJ-45) ports 1 Combo headphone/mic port Yes DC-in jack Yes Number of rear USB ports 5 Number of front USB ports 3 Number of front audio ports 1
Design Chassis type Micro PC Product colour Black Placement supported Horizontal/Vertical Cable lock slot Yes Cable lock slot type Kensington
Performance Product type Mini PC Market positioning Business Motherboard chipset Intel Q870 Audio chip Realtek ALC3204 Audio system High Definition Audio Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 2.0
Software Operating system installed Windows 11 Pro Operating system architecture 64-bit Trial software Activate Your Microsoft 365 For A 30 Day Trial
Power Power supply 180 W Power supply input voltage 100 - 240 V Power supply input frequency 50 / 60 Hz
Operational conditions Operating temperature (T-T) 10 - 35 °C Storage temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 20 - 80% Storage relative humidity (H-H) 5 - 95% Operating altitude -15.2 - 3048 m Non-operating altitude -15.2 - 10668 m Operating vibration 0.26 G Non-operating vibration 1.37 G Operating shock 40 G Non-operating shock 105 G
Sustainability Sustainability certificates ENERGY STAR, EPEAT Climate +, EPEAT Gold Doesn't contain PVC/BFR
Weight & dimensions Width 36 mm Depth 178 mm Height 182 mm Weight 1.43 kg
Carbon footprint Total carbon footprint (kg of CO2e) 80.7 Carbon emissions, manufacturing (kg of CO2e) 45.0306 Carbon emissions, logistics (kg of CO2e) 2.2596 Carbon emissions, energy usage (kg of CO2e) 32.8449 Carbon emissions, end-of-life (kg of CO2e) 0.56 PAIA version GaBi version 1, 2024
Display
In the box
Input device model: Dell Pro Keyboard and Mouse - KM5221W - UK (QWERTY) - Black
