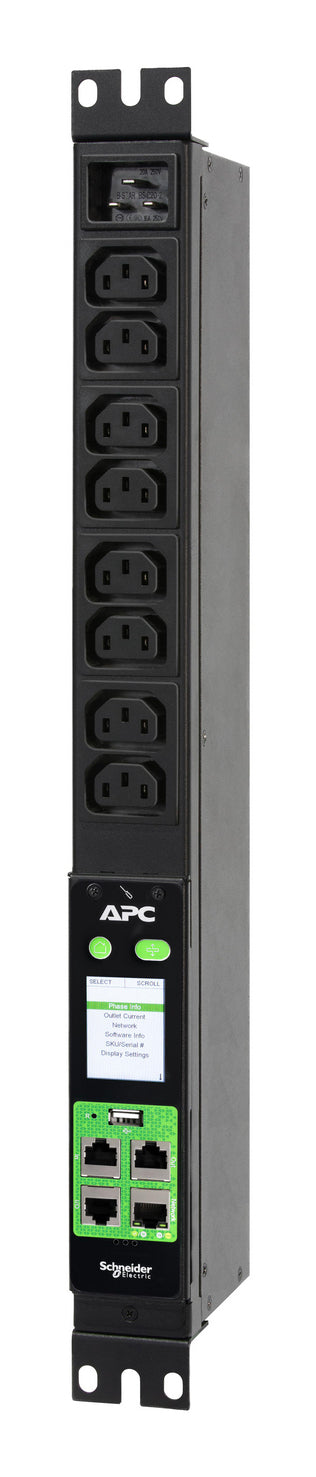

Schneider Easy Metered Rack PDU EPDU2016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +50°C temperation range and comes with 2 year of standard warranty. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Specifications
Design
PDU types
Metered
Rack capacity
1U
Type
Single-phase
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C13 coupler
Power
Nominal input voltage
230 V
Maximum current
16 A
AC input frequency
50/60 Hz
Nominal output voltage
208 V
Output voltage
208 V
Load capacity
3680 VA
Number of phases
1
Certificates
Compliance certificates
CE, UKCA
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
482 mm
Depth
100 mm
Height
44 mm
Weight
1.7 kg
