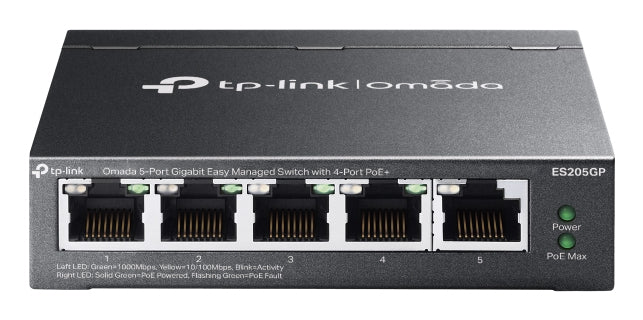

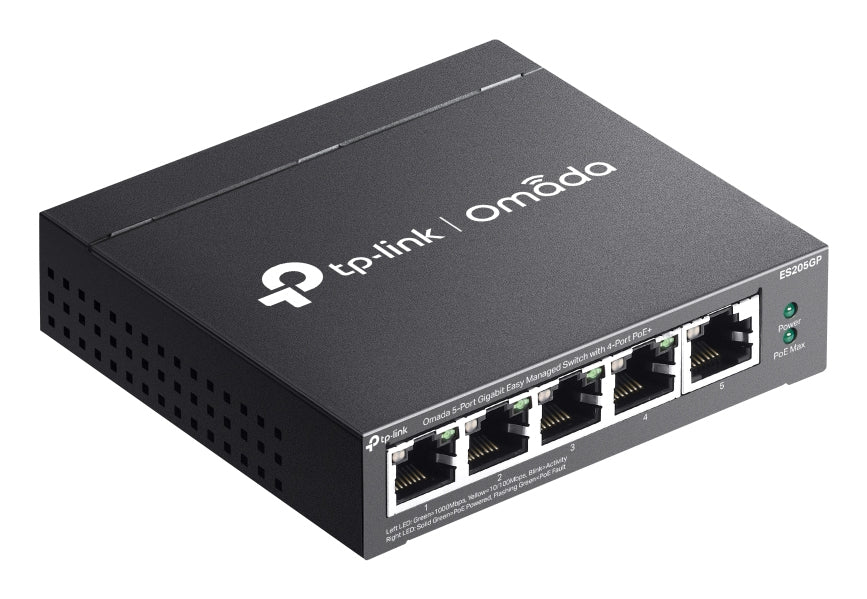

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Part no.ES205GP
Regular price
£49.16ex VAT£58.99 inc VAT
Regular price
£0.00
Sale price
£49.16ex VAT£58.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

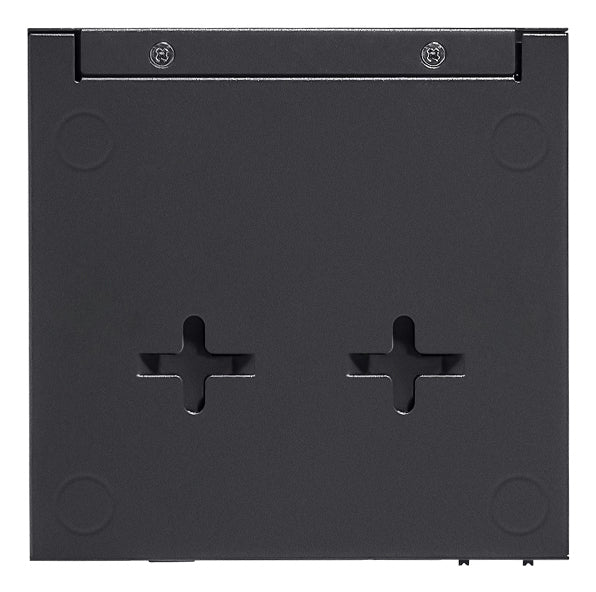

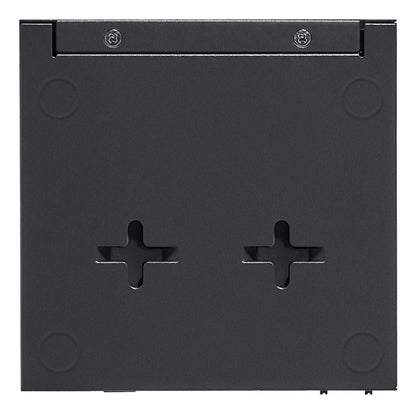

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
Optical fiber
| Transmission distance (max) | 0.25 km |
|---|
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
Security
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Product colour | Black |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Fanless | Yes |
|---|
Power
| Power source | AC/DC |
|---|---|
| Power supply included | Yes |
| DC input voltage | 53.5 V |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 100 mm |
|---|---|
| Depth | 98 mm |
| Height | 25 mm |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
In the box
- User guide: Yes
