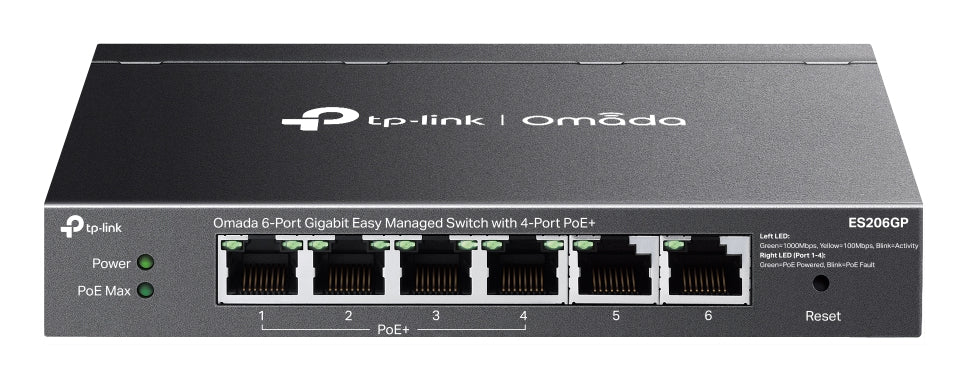

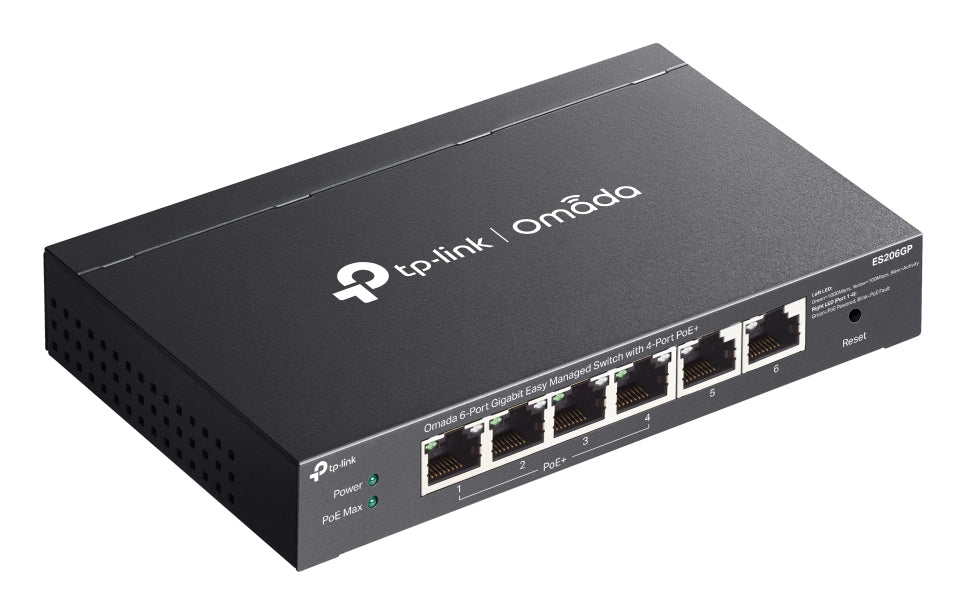

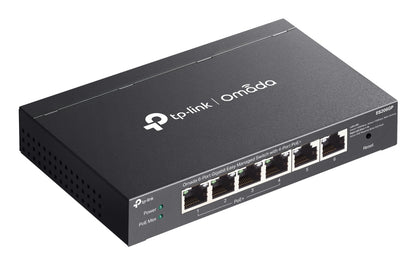

TP-Link Omada ES206GP 6-Port Gigabit PoE+ Managed Switch
TP-Link Omada ES206GP 6-Port Gigabit PoE+ Managed Switch
Part no.ES206GP
Regular price
£55.83ex VAT£66.99 inc VAT
Regular price
£0.00
Sale price
£55.83ex VAT£66.99 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
Out of stock: ask us for an alternative
Overview
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Unified static configuration | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 6 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
Network
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
|---|---|
| 10G support | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
Optical fiber
| Transmission distance (max) | 0.25 km |
|---|
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
Security
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Design
| Product colour | Black |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |

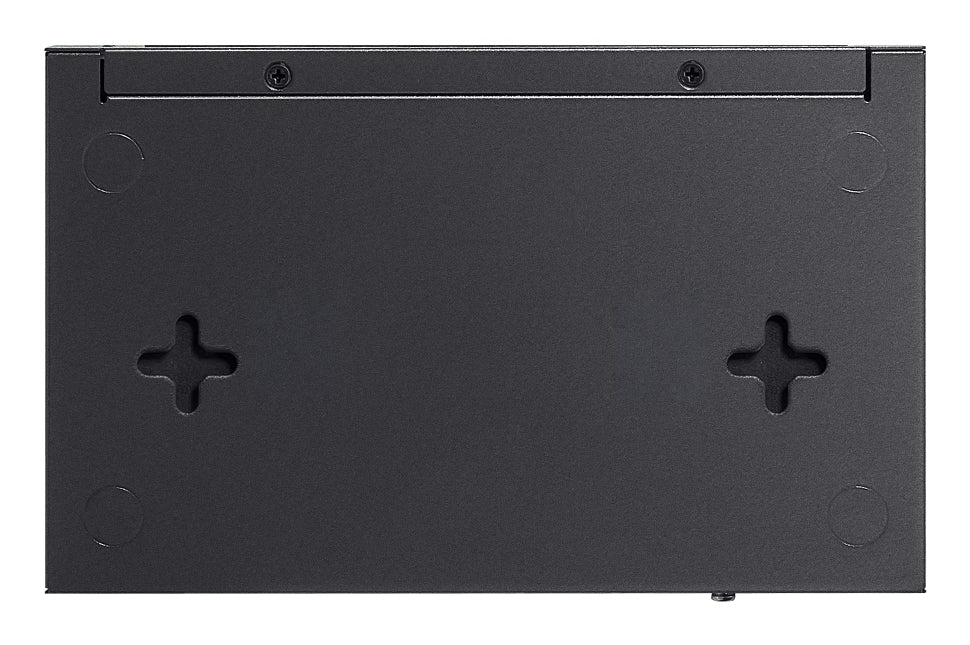

| Wall mountable | Yes |
Performance
| Firmware upgradeable | Yes |
|---|---|
| Fanless | Yes |
Power
| Power source | DC |
|---|---|
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 158 mm |
|---|---|
| Depth | 101 mm |
| Height | 25 mm |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
In the box
- User guide: Yes
