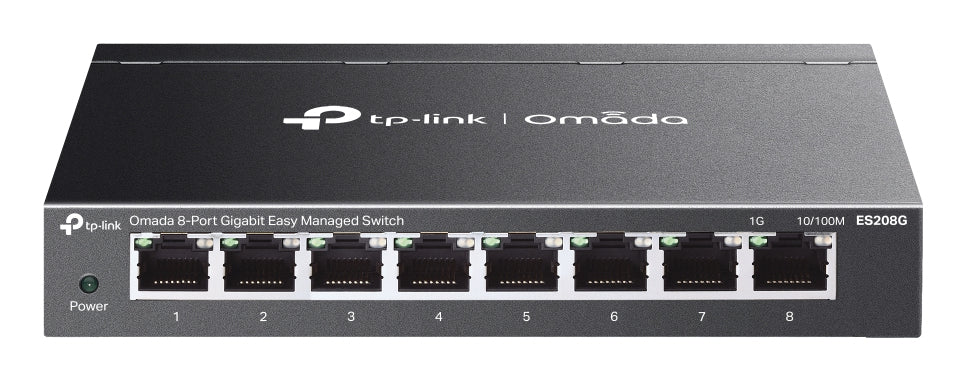

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

£35.99
£35.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Title
View full details
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

    Management features

    • Switch type: Managed
    • Switch layer: L2
    • Quality of Service (QoS) support: Yes
    • Web-based management: Yes
    • Cloud-managed: Yes
    • Unified static configuration: Yes

    Ports & interfaces

    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Gigabit Ethernet (copper) ports quantity: 8

    Network

    • Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
    • 10G support: No
    • Zero Touch Provisioning (ZTP): Yes
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Auto MDI/MDI-X: Yes
    • Auto-negotiation: Yes
    • Fast leave: Yes
    • VLAN support: Yes
    • Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
    • Number of VLANs: 32

    Data transmission

    • MAC address table: 8000 entries
    • Switching capacity: 16 Gbit/s
    • Forwarding rate: 11.9 Mpps
    • Store-and-forward: Yes
    • Jumbo frames support: Yes
    • Jumbo frames: 15000
    • Packet buffer memory: 4 MB

    Security

    • DHCP features: DHCP client
    • IGMP snooping: Yes
    • Loop protection: Yes
    • Queue scheduling algorithms: Weighted Round Robin (WRR)

    Design

    • Rack mounting: No
    • Stackable: No
    • Product colour: Black
    • LED indicators: Yes
    • Wall mountable: Yes

    Performance

    • Flash memory: 64 MB
    • Firmware upgradeable: Yes
    • Fanless: Yes
    • Mean time between failures (MTBF): 1141726 h

    Power

    • Power source: DC
    • Power supply included: Yes
    • DC input voltage: 5 V
    • Input current: 0.6 A
    • Power consumption (max): 2.7 W
    • Surge protection: Yes
    • Surge protection voltage: 6 kV

    Power over Ethernet (PoE)

    • Power over Ethernet (PoE): No

    Operational conditions

    • Operating temperature (T-T): -5 - 45 °C
    • Storage temperature (T-T): -40 - 70 °C
    • Operating relative humidity (H-H): 10 - 90%
    • Storage relative humidity (H-H): 5 - 90%
    • Heat dissipation: 9.09 BTU/h

    Weight & dimensions

    • Width: 158 mm
    • Depth: 100.7 mm
    • Height: 25.4 mm

    Packaging content

    • User guide: Yes

    Packaging data

    • AC adapter included: Yes
    • Package type: Box

    Certificates

    • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
