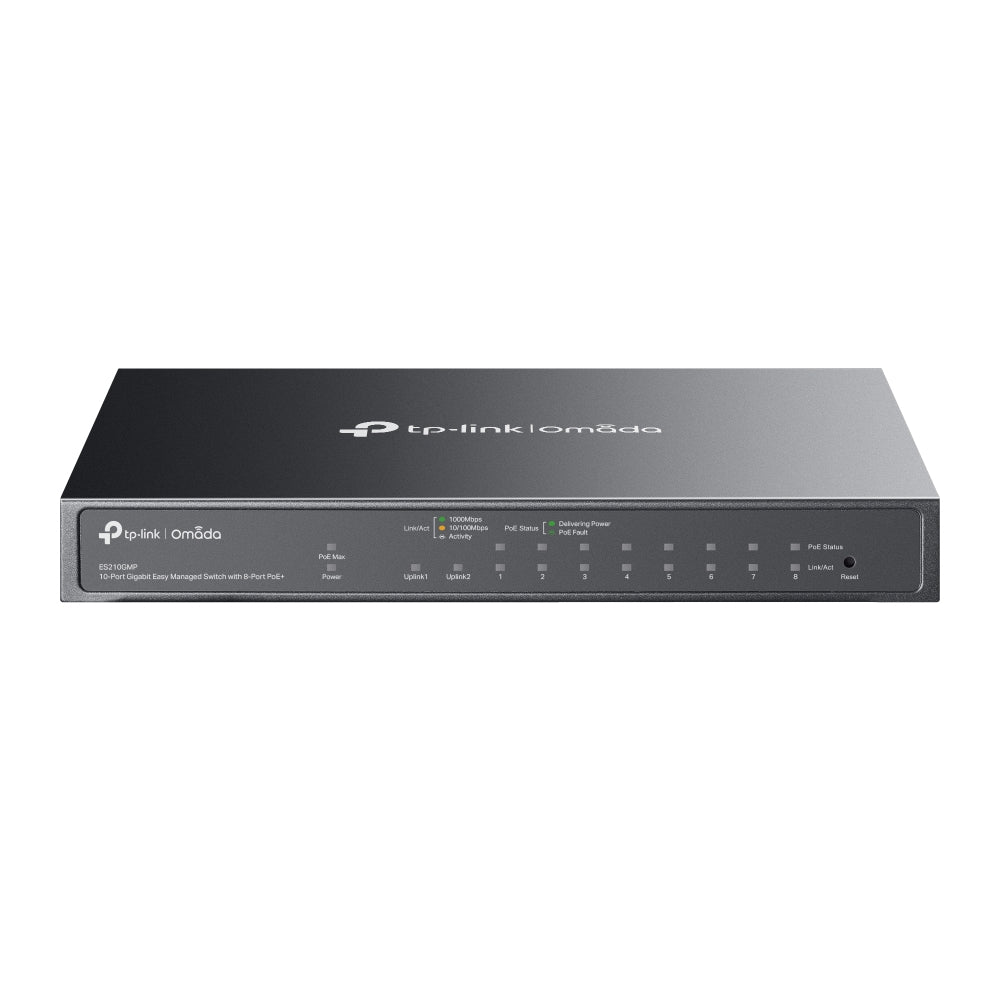

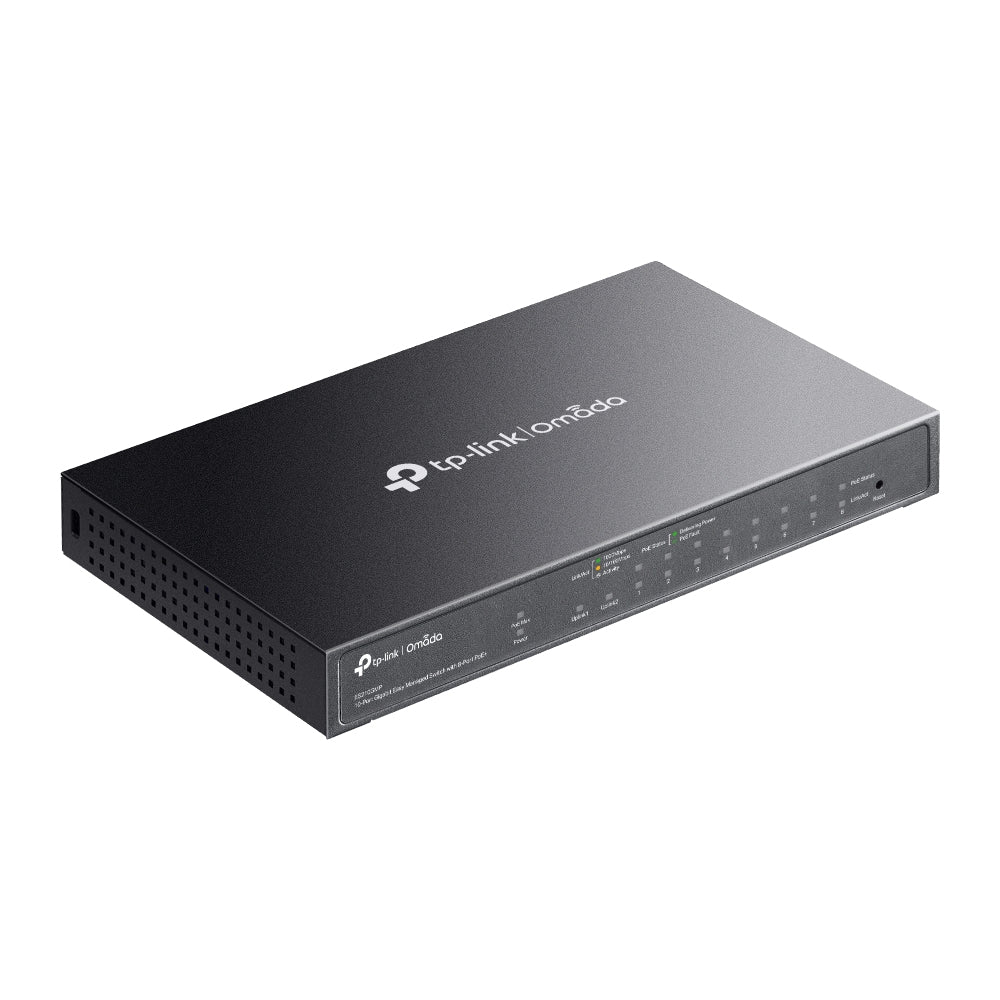

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

Part no.ES210GMP

£87.49ex VAT£104.99 inc VAT
£0.00 £87.49ex VAT£104.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

✓ In stock: UK delivery in 2–4 working days

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

Who it's for: Small offices and shops wiring up a few access points, cameras or IP phones that take power over Ethernet. Eight PoE+ ports with a decent power budget, two extra gigabit ports for the router and a server, and it can be managed from the free Omada cloud dashboard alongside the access points. Desktop sized, no fan noise worth mentioning.

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription

Specifications

Management features
Switch typeManaged
Quality of Service (QoS) supportYes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity1
Network
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)0.25 km
Data transmission
MAC address table8000 entries
Switching capacity20 Gbit/s
Forwarding rate14.88 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15
Packet buffer memory4 MB
Security
DHCP featuresDHCP client
IGMP snoopingYes
Design
Product colourBlack
Reset buttonYes

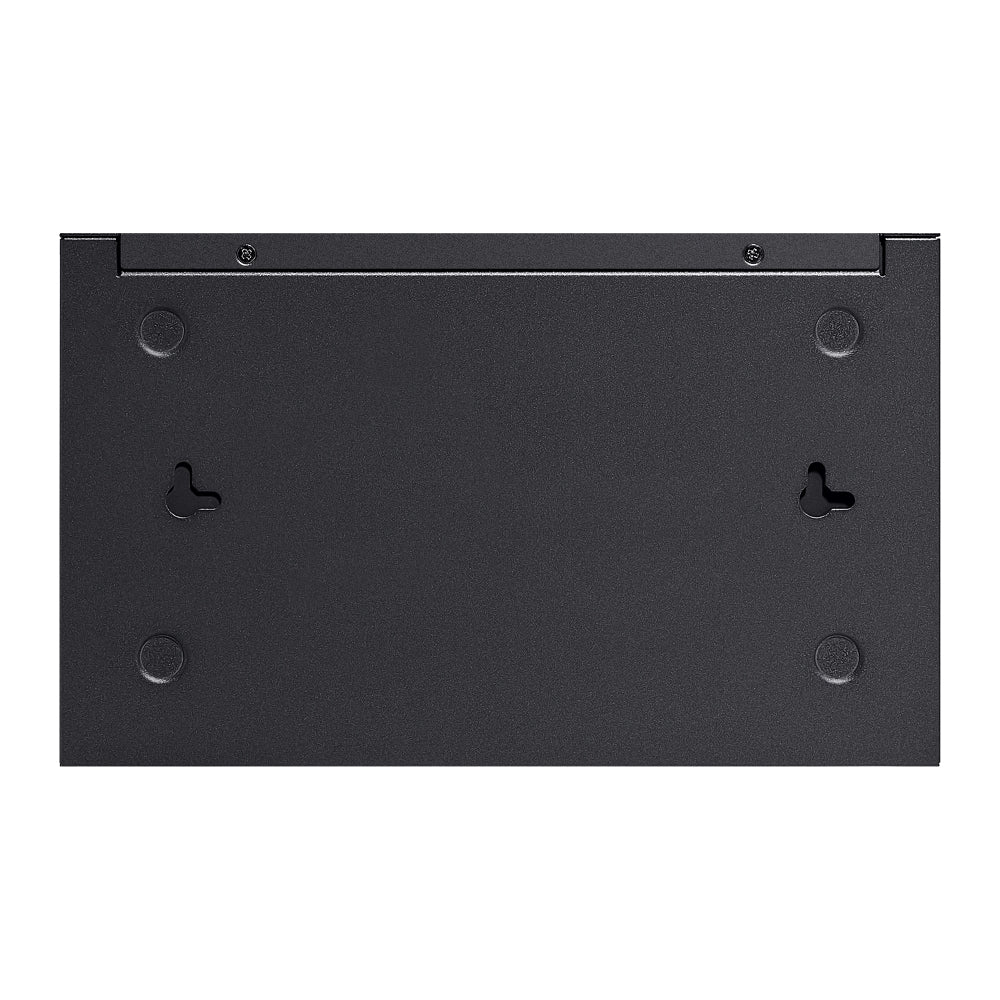

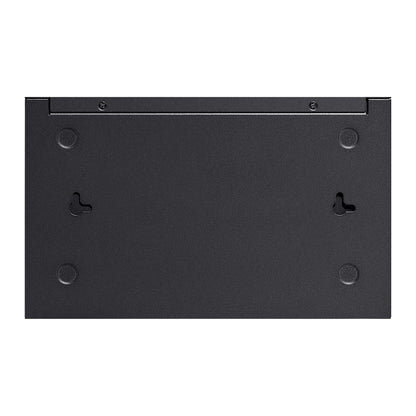

Wall mountableYes
Performance
FanlessYes
Power
Power sourceDC
Power supply includedYes
DC input voltage53.5 V
Input current2.43 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget123 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width209 mm
Depth126 mm
Height26 mm
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

In the box

  • Cables included: AC
  • User guide: Yes
