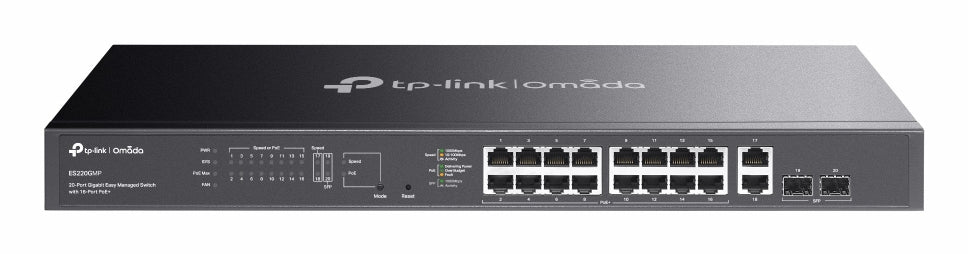

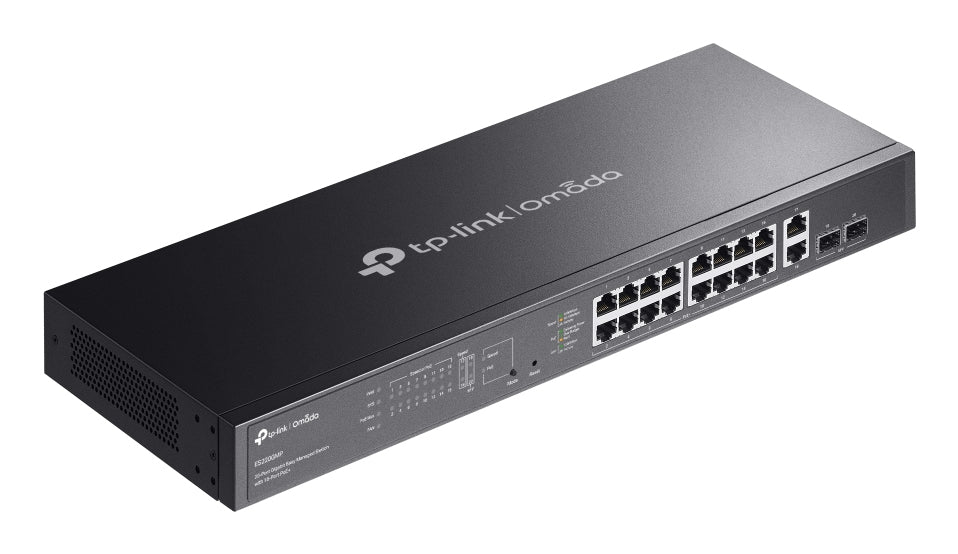

TP-Link Omada ES220GMP 18-Port Gigabit PoE+ Managed Switch

TP-Link Omada ES220GMP 18-Port Gigabit PoE+ Managed Switch

Part no.ES220GMP

£185.83ex VAT£222.99 inc VAT
£0.00 £185.83ex VAT£222.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Specifications

Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Unified static configurationYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity18
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity18
SFP module slots quantity2
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Zero Touch Provisioning (ZTP)Yes
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Fast leaveYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs32
Data transmission
MAC address table8000 entries
Switching capacity40 Gbit/s
Forwarding rate29.76 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory4 MB
Security
DHCP featuresDHCP client
IGMP snoopingYes
Loop protectionYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Design
Rack mountingYes
StackableNo
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)
Performance
Flash memory64 MB
Noise level41.5 dB
Firmware upgradeableYes
Mean time between failures (MTBF)310550.7 h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)289.7 W
Surge protectionYes
Surge protection voltage6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet plus (PoE+) ports quantity16
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget250 W
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation984.88 BTU/h
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

In the box

  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
