Lenovo ThinkCentre M90q Gen 5 PC – Core i7-14700T, 16GB, 512GB SSD, 12TT000PUK
Lenovo ThinkCentre M90q Gen 5 PC – Core i7-14700T, 16GB, 512GB SSD, 12TT000PUK
Part no.12TT000PUK
Regular price
£1,200.00ex VAT£1,440.00 inc VAT
Regular price
£0.00
Sale price
£1,200.00ex VAT£1,440.00 inc VAT
Unit price
per
Price shown ex VAT and inc VAT (20%).
UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details
Couldn't load pickup availability
✓ In stock: UK delivery in 2–4 working days
Overview
- Multilevel security & manageability with up to Intel vPro Enterprise
- Removable dust shield to assist with upkeep & extend the lifecycle of the system
- Highly configurable compact PC with customizable expansion slots
- Ideal for healthcare, retail, & finance with support for up to 4 monitors
- Removable dust shield to assist with upkeep & extend the lifecycle of the system
- Highly configurable compact PC with customizable expansion slots
- Ideal for healthcare, retail, & finance with support for up to 4 monitors
Specifications
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700T |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 1.3 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Processor base power | 35 W |
| Maximum turbo power | 106 W |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) | Yes |
| Card reader integrated | No |
Graphics
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card | UHD Graphics |
Performance
| Motherboard chipset | Intel Q670 |
|---|---|
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | Gigabit Ethernet |

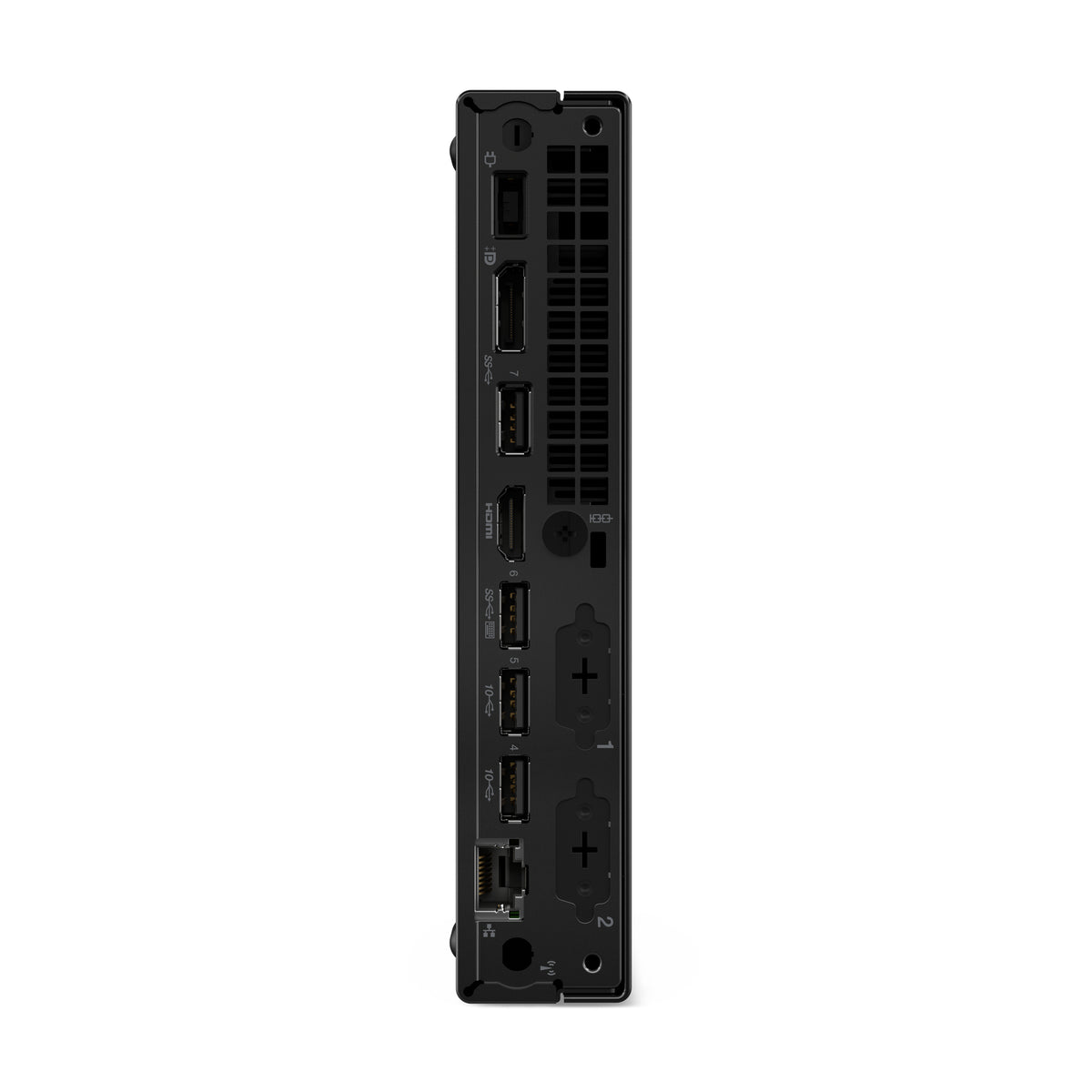

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Power supply | 135 W |
|---|
Design
| Chassis type | Mini PC |
|---|---|
| Volume | 1 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
Processor special features
| Intel® Smart Cache | Yes |
|---|
Display
| Display included | No |
|---|
Audio
| Audio chip | Realtek ALC233 |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Weight & dimensions
| Width | 179 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
Certificates
| Certification | TCO,RoHS,ErP |
|---|
Keyboard
| Keyboard connectivity | Wired |
|---|
Product details
| Part number | 12TT000PUK |
|---|---|
| Brand | Lenovo |
| Supplier description | THINKCENTRE M90Q GEN 5 I7-14700T W11P 16GB 512GB |
| EAN | 0199273604388 |
In the box
- Mouse included: Yes
- Mouse connectivity: Wired
- Keyboard included: Yes
