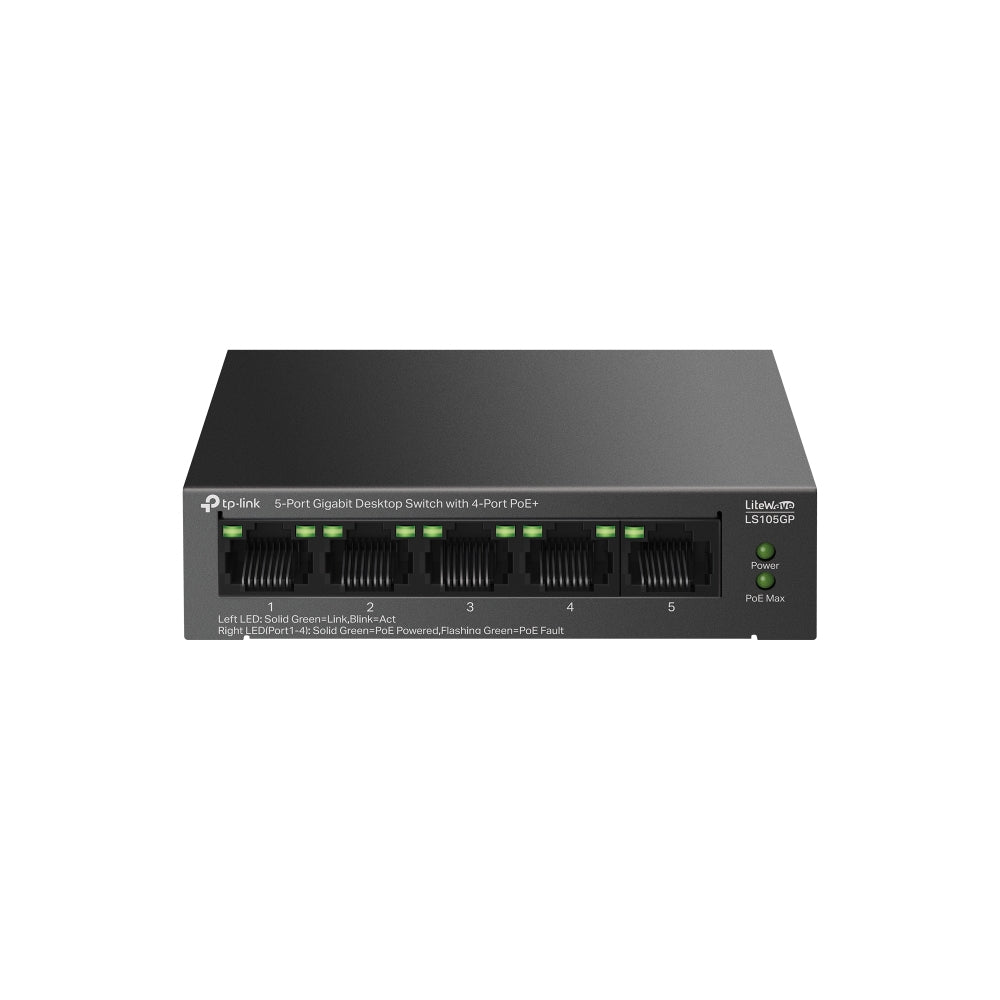

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+ Unmanaged

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+ Unmanaged

Part no.LS105GP

£30.83ex VAT£36.99 inc VAT
£0.00 £30.83ex VAT£36.99 inc VAT
Sale Sold out
Price shown ex VAT and inc VAT (20%). UK delivery £5.99, free on orders of £50 or more (inc VAT). Delivery details

Out of stock: ask us for an alternative

Buying 5 or more? Get a quote

5.0 on Google

View full details

Overview

Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Specifications

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Network
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Cable types supportedCat3, Cat5e, Cat4, Cat5
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Data transmission
MAC address table2000 entries
Switching capacity10 Gbit/s
Forwarding rate7.44 Mpps
Store-and-forwardYes
Jumbo frames16000
Security
IGMP snoopingYes
Design
Product colourBlack
LED indicatorsYes
Power
Power sourceDC/PoE
Power supply includedYes
AC input voltage220 V
AC input frequency50 Hz
DC input voltage53.5 V
Power consumption (max)74.46 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget65 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation253.16 BTU/h
Weight & dimensions
Width99.8 mm
Depth98 mm
Height25 mm
Certificates
CertificationCE, FCC, RoHS

In the box

  • User guide: Yes
